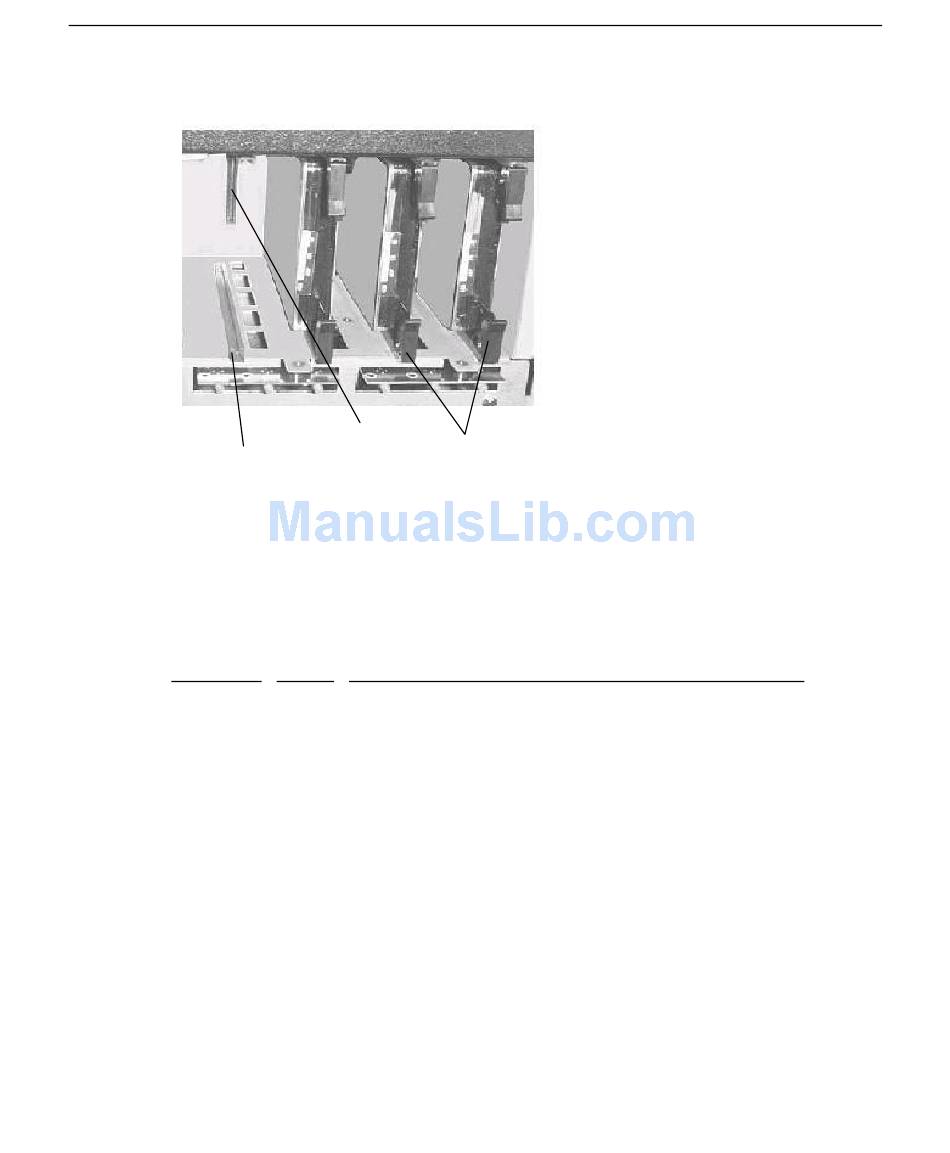

The following figure shows three disk drives installed in the disk drive section.
Drive Rail

Installed Expansion Cards

Option cards are installed in the Accelerated Graphics Port (AGP), Peripheral Component
Interconnect (PCI), and Industry Standard Architecture (ISA) option slots in the base unit.
The following table briefly identifies each slot.
Slot
AGP slot
PCI slot 1
PCI slot 2
PCI slot 3
PCI slot 4
ISA slot
NOTE The shared PCI/ISA slot does not support bus-mastering PCI cards.
To install additional option cards, see the System Reference document delivered with the
system and the documentation delivered with the option card for more information.
Drive Slot
Latching Clips
Type Location
AGP Left-hand slot, as seen when looking at back of base unit
PCI
PCI
PCI
PCI
ISA Right-hand slot, as seen when looking at back of base unit
15
