NOTE While Intergraph Computer Systems recommends disconnecting the cables from the base
unit before extending the base unit from the rack, you can still extend the base unit without
disconnecting the cables. Be sure there is enough surplus cable length to allow the base unit
to fully extend from the rack. Use caution not to pinch the cables while extending or retracting
the base unit.
NOTE For information about SCSI or RAID ports, refer to the documentation delivered with the
controller. For information about the Video Out port, refer to the documentation delivered with
the video card.

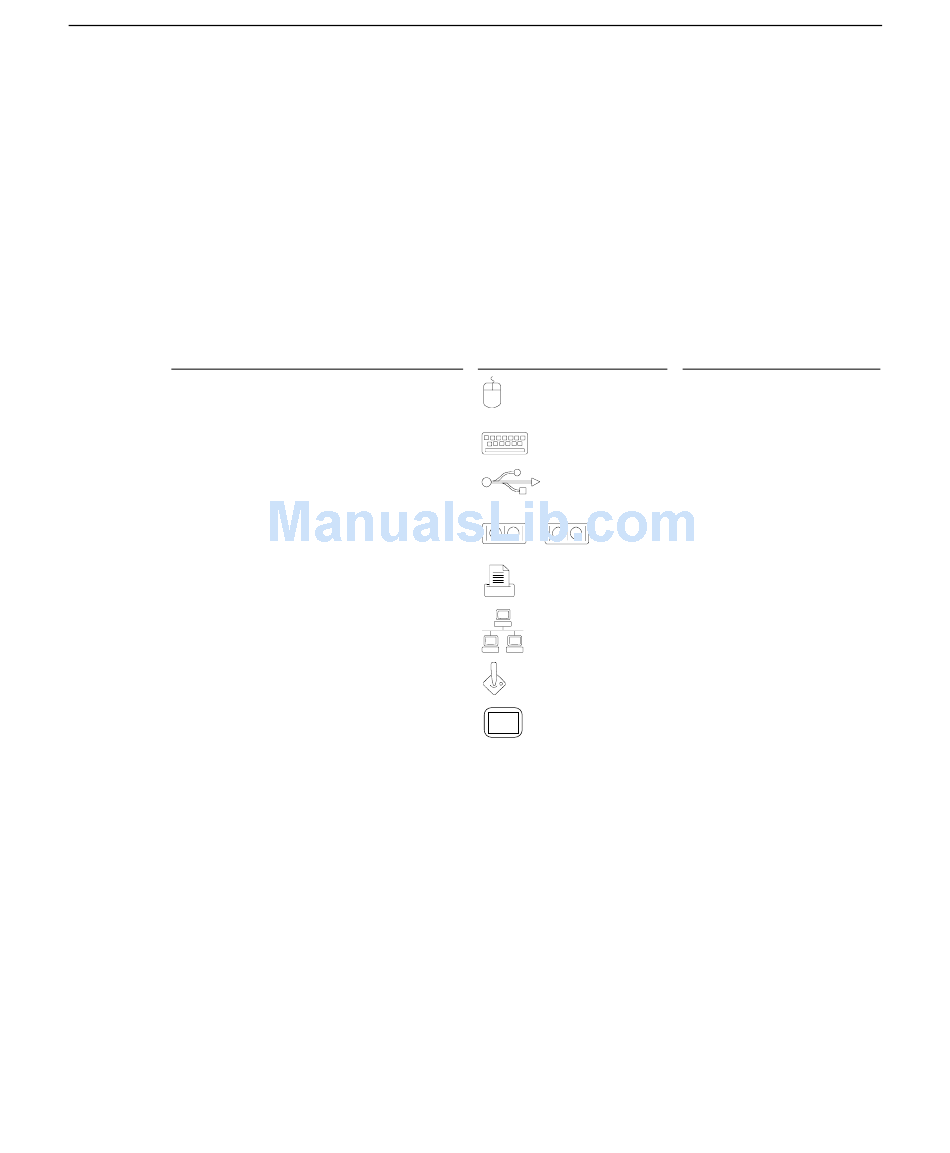

The base unit ports have PC 95 compliant labels. Refer to the following table as needed when
following the cable connection procedure.
Connect the cable from this....
Mouse
Keyboard
Universal Serial Bus device
Modem, printer, or other device
Printer or other device
Network
Game joystick or MIDI device
Monitor
To the port labeled...
1 2
For this connector...
Mouse port
Keyboard port
Universal Serial Bus port
Serial (COM) port 1 or 2
Parallel port
Ethernet port
MIDI/Game port
Video Out port
