To install RAID or non-RAID disk drives:
1. Open the disk drive section door on the front of the base unit. The key is in the parts box.

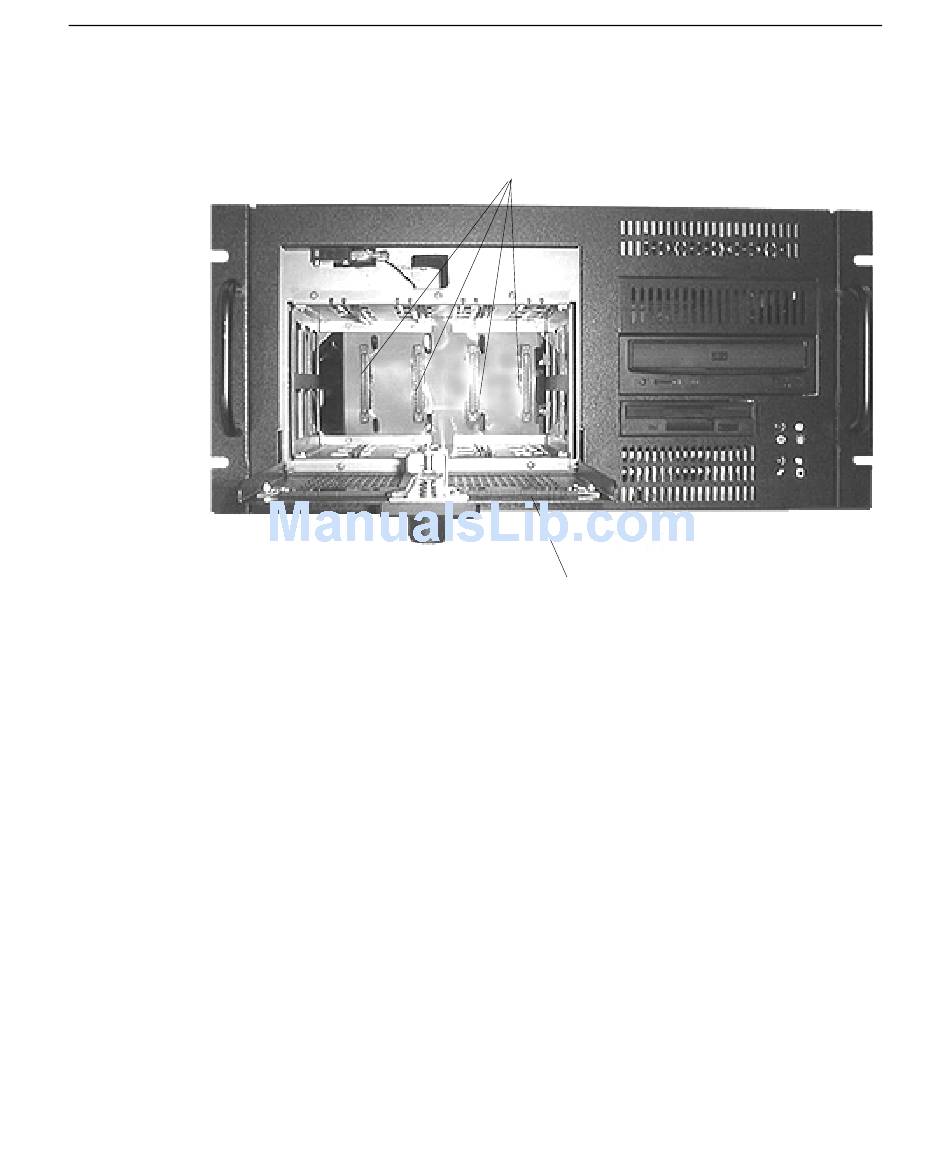

The following figure shows the system with the disk drive section door open.
2. Remove the disk drive(s) from the disk drive carton and place on an antistatic surface.
Carefully open the antistatic bag(s) and remove the disk drive(s). Note the ID number on
the drive(s).
3. Extend the latching clips on Drive 0 and align the rails on the side of the drive with the
slot guides in the rightmost slot. The metal casing of the drive faces to the left. If you
install the drive reversed, it will not connect to the system.
4. With your thumb, push the drive at the center between the latching clips until it slides all
the way into the slot and firmly engages the connector.
5. Close the latching clips to lock the drive in the slot.
6. Repeat steps 3 through 6 to install the remaining disk drives. Fill each slot, moving to the
left adjacent slot as you install each drive. Do not leave empty slots between the drives.
Disk Drive Slots
Disk Drive Door
(open)
