FRU Replacement
QLogic 12800 Series

Power Supply Replacement

FRU part number:12800-PS01
NOTE:
These power supplies are to be used exclusively with the QLogic
12800-series QDR IB switches and are not intended to be sold separately.

Removal Procedures

1. Push the release latch to release the arm.
2. Carefully pull the supply until it is disengaged from the chassis.

Replacement Procedures

1. Slide the power supply straight into the open slot until it engages with the
backplane connector.
2. Make sure the supply is operating and the AC OK and DC OK LEDs are
green.
D-6

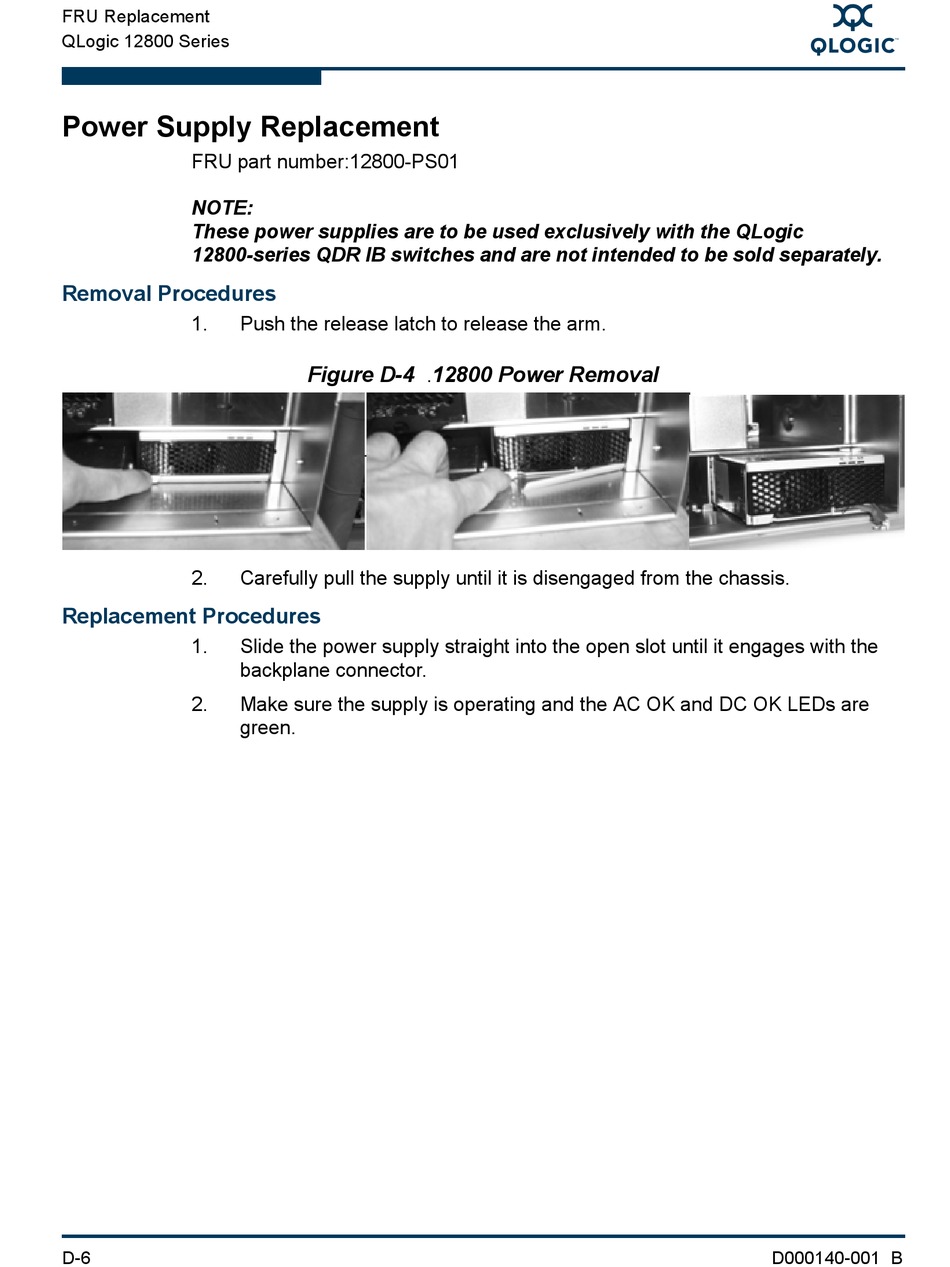

Figure D-4 12800 Power Removal
.
S
D000140-001 B
