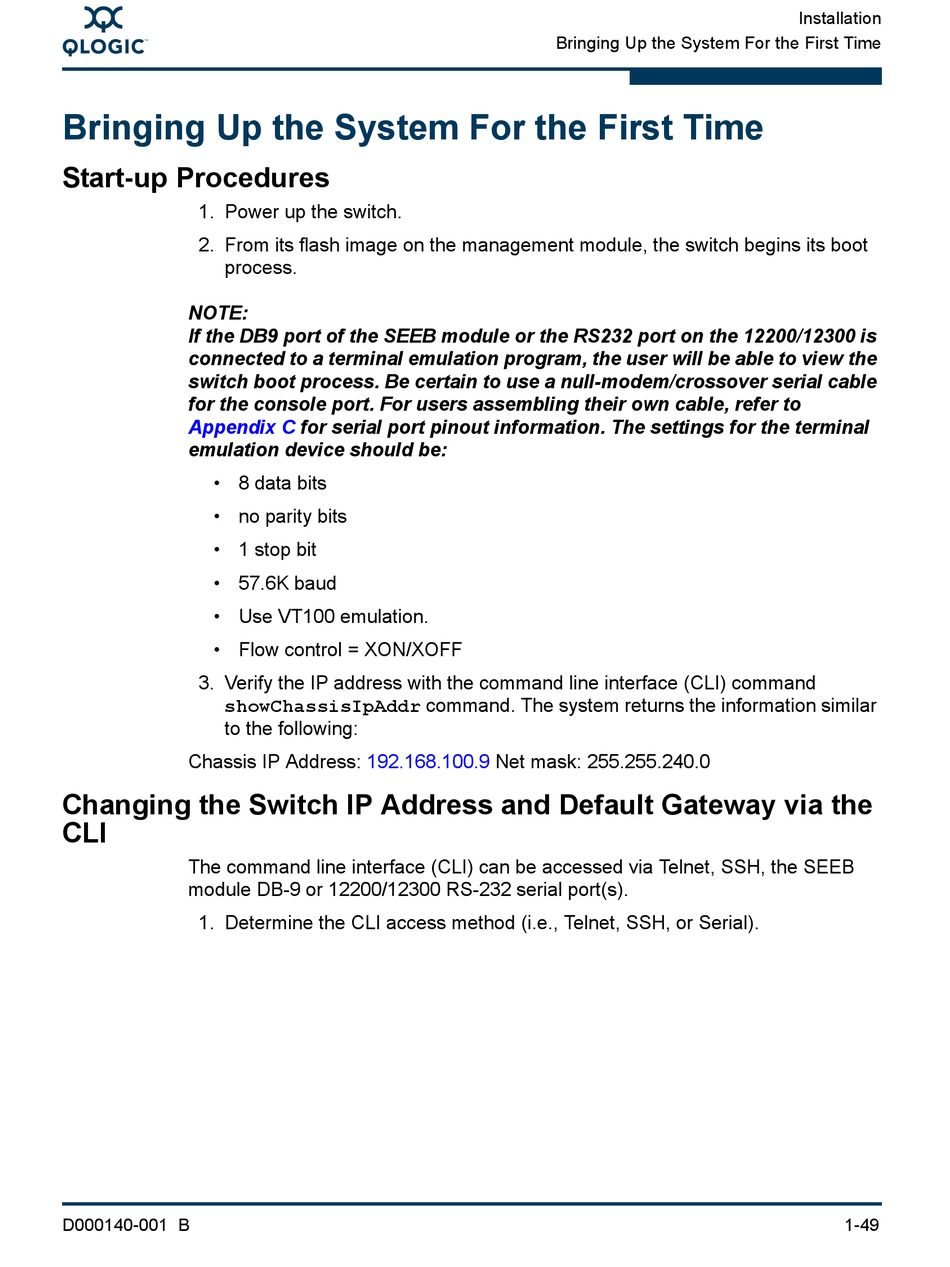

Bringing Up the System For the First Time

Start-up Procedures

1. Power up the switch.
2. From its flash image on the management module, the switch begins its boot
process.
NOTE:
If the DB9 port of the SEEB module or the RS232 port on the 12200/12300 is
connected to a terminal emulation program, the user will be able to view the
switch boot process. Be certain to use a null-modem/crossover serial cable
for the console port. For users assembling their own cable, refer to
Appendix C
emulation device should be:
• 8 data bits
• no parity bits
• 1 stop bit
• 57.6K baud
• Use VT100 emulation.
• Flow control = XON/XOFF
3. Verify the IP address with the command line interface (CLI) command
showChassisIpAddr command. The system returns the information similar
to the following:
Chassis IP Address:
Changing the Switch IP Address and Default Gateway via the
CLI
The command line interface (CLI) can be accessed via Telnet, SSH, the SEEB
module DB-9 or 12200/12300 RS-232 serial port(s).
1. Determine the CLI access method (i.e., Telnet, SSH, or Serial).
D000140-001 B
for serial port pinout information. The settings for the terminal
192.168.100.9
Bringing Up the System For the First Time
Net mask: 255.255.240.0
