Installation
Component LEDs
• Off - the system functioning normally.
• Steady
of the following conditions:
• The switch temperature is at a warning level on the module.
• The switch silicon temperature is at a warning level (approximately 90 degrees
C).
• DC voltages on the board are slightly out of tolerance (12V Bulk, 5V, 3.3V
and 1.8V are all monitored).
• The module can no longer function properly. The system will take the
appropriate actions to ensure that no damage is done to its components.
• Blinking

Spine Module

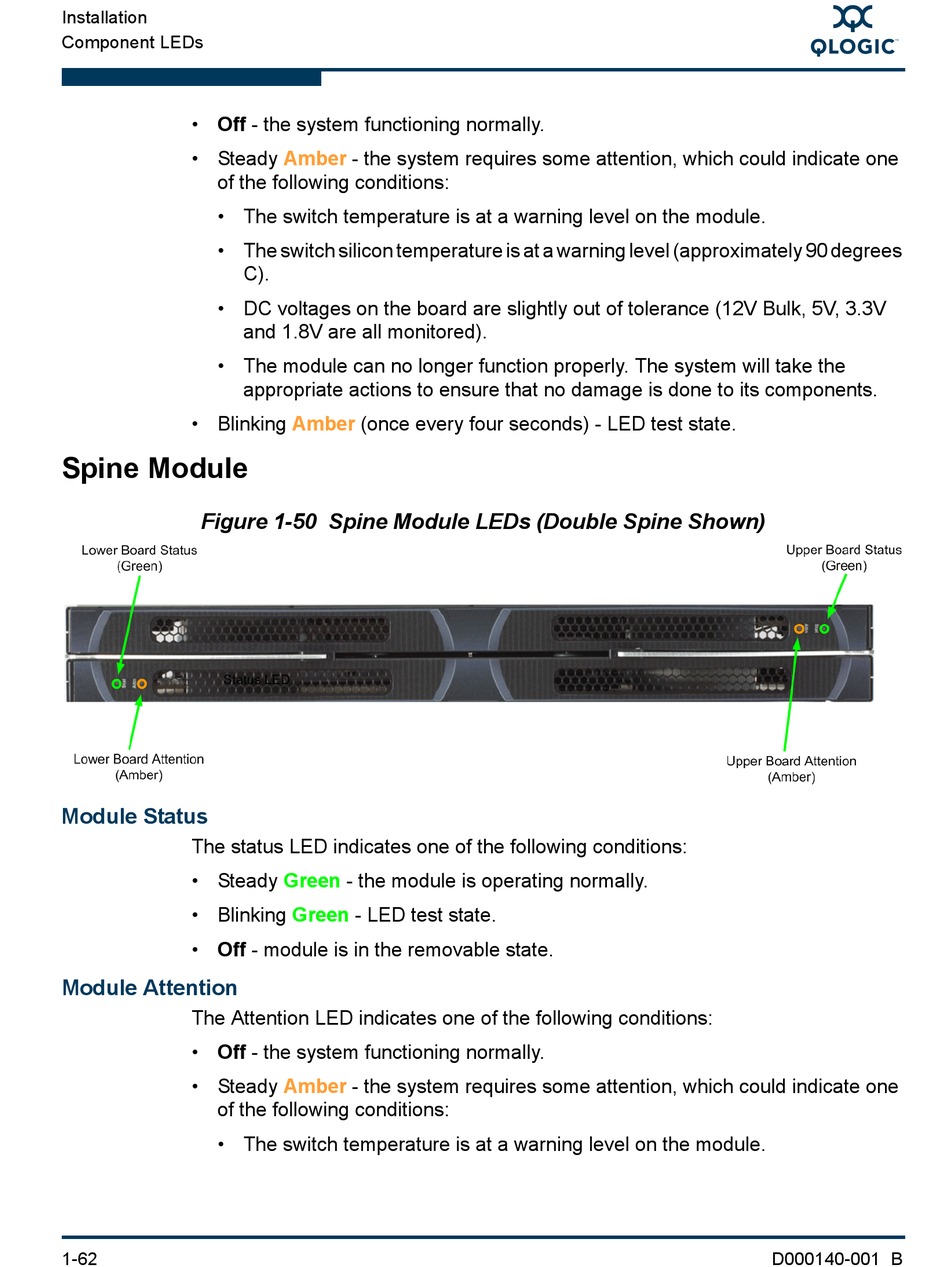

Figure 1-50 Spine Module LEDs (Double Spine Shown)

Module Status

The status LED indicates one of the following conditions:
• Steady
• Blinking
• Off - module is in the removable state.

Module Attention

The Attention LED indicates one of the following conditions:
• Off - the system functioning normally.
• Steady
of the following conditions:
• The switch temperature is at a warning level on the module.
1-62
Amber - the system requires some attention, which could indicate one
Amber (once every four seconds) - LED test state.
Green - the module is operating normally.
Green - LED test state.
Amber - the system requires some attention, which could indicate one
S
D000140-001 B
