Installation
12800-360 Installation
Installation Tasks
NOTE:
It is recommended that 12800-360 is installed into the rack at 5U or 6U
location. This will locate the chassis approximately 12" from the floor and
will allow the chassis to be moved onto the support rails by sliding off the
pallet.
1.
Install clip nuts: If applicable, remove the doors of the rack. Install M6 clip
nuts in the following locations on EIA rails for U5 installation. For U6
installation, increment clip nut locations by one U (1.75").
1-36

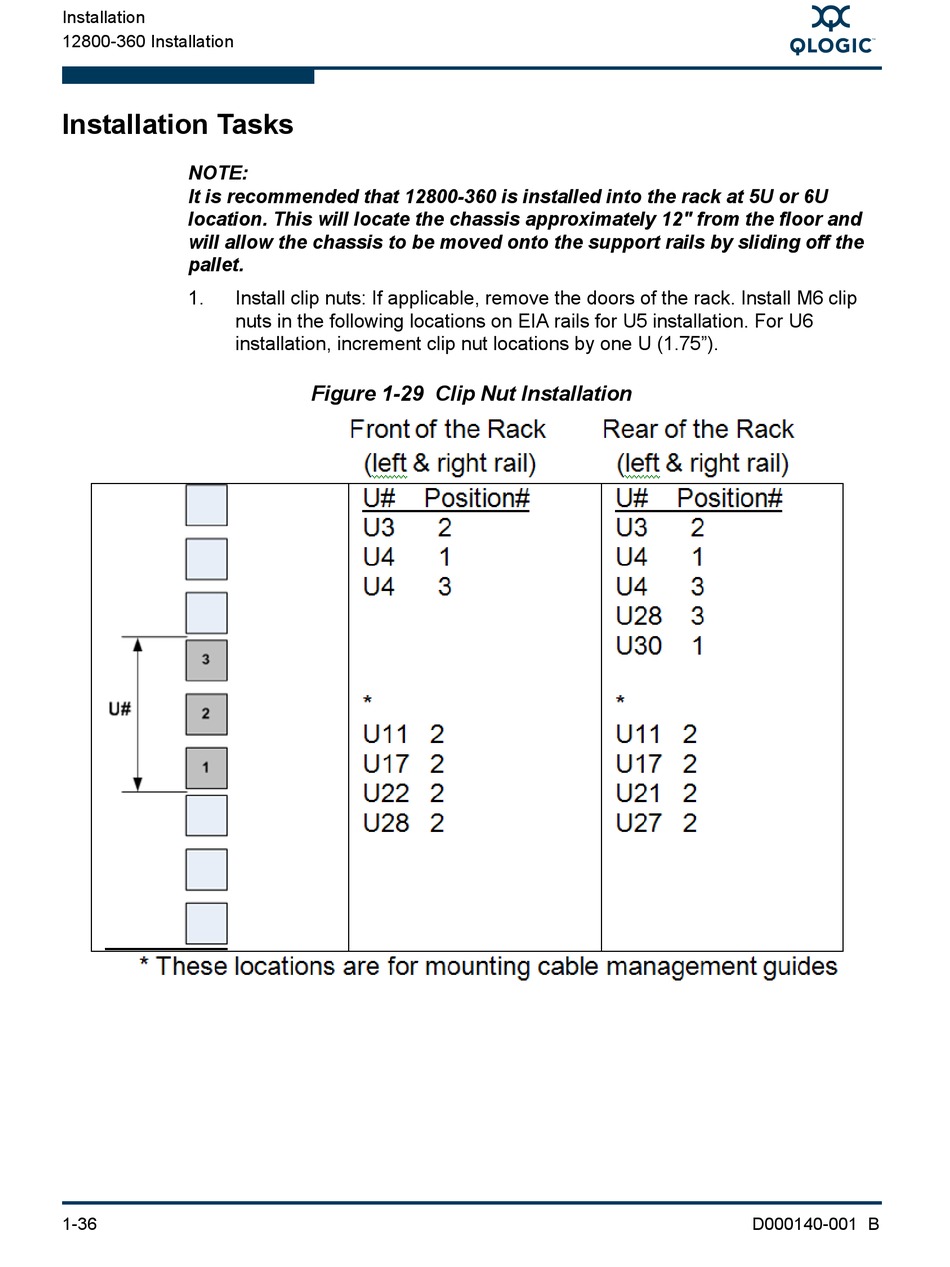

Figure 1-29 Clip Nut Installation
S
D000140-001 B
