7. To change the switch default gateway IP address enter:
setDefaultRoute -h ipaddress
where -h ipaddress is the new default gateway IP address in dotted decimal
(i.e., xxx.xxx.xxx.xxx) format.
8. To to exit the CLI enter:
logout

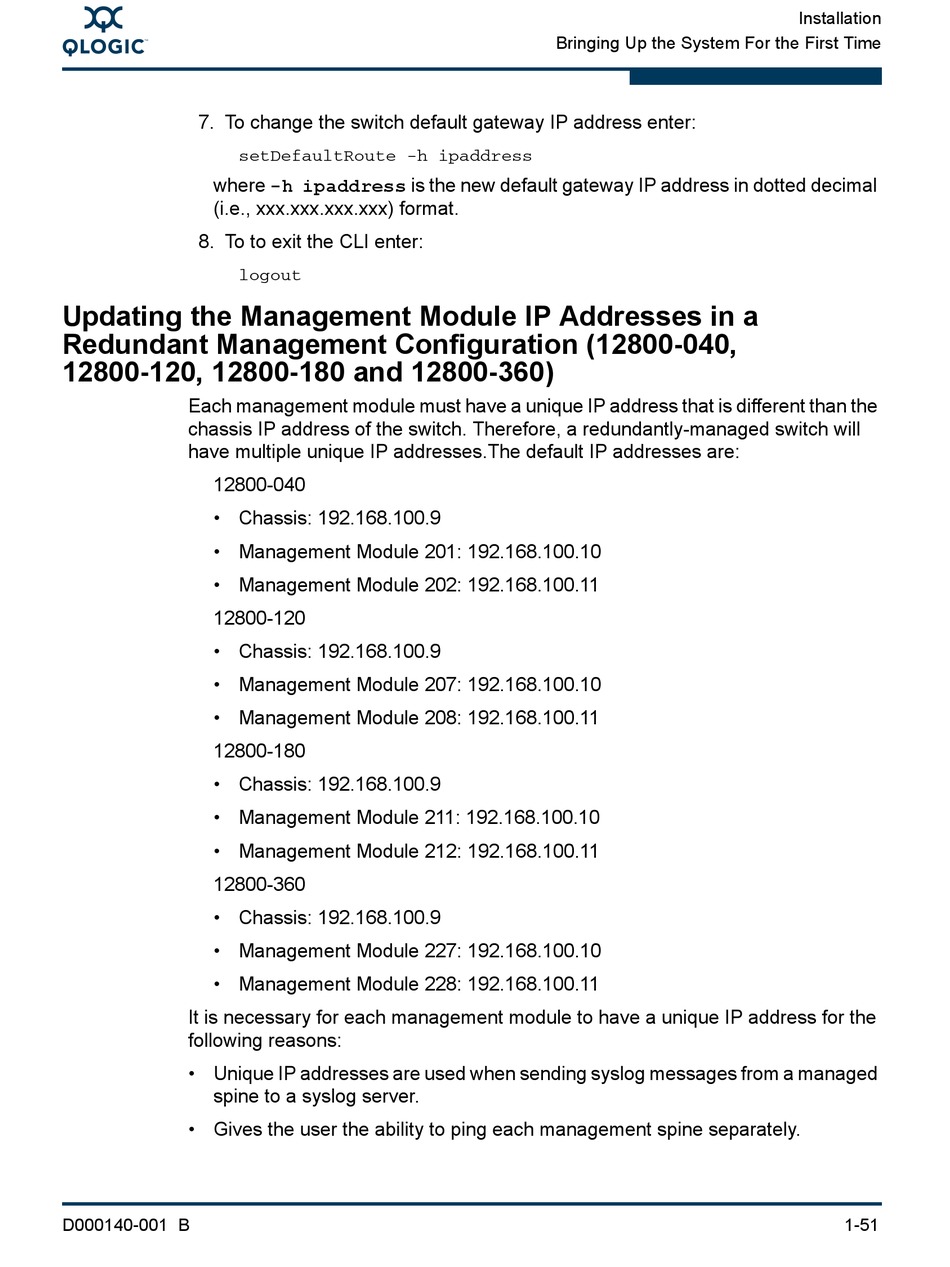

Updating the Management Module IP Addresses in a
Redundant Management Configuration (12800-040,
12800-120, 12800-180 and 12800-360)
Each management module must have a unique IP address that is different than the
chassis IP address of the switch. Therefore, a redundantly-managed switch will
have multiple unique IP addresses.The default IP addresses are:
12800-040
• Chassis: 192.168.100.9
• Management Module 201: 192.168.100.10
• Management Module 202: 192.168.100.11
12800-120
• Chassis: 192.168.100.9
• Management Module 207: 192.168.100.10
• Management Module 208: 192.168.100.11
12800-180
• Chassis: 192.168.100.9
• Management Module 211: 192.168.100.10
• Management Module 212: 192.168.100.11
12800-360
• Chassis: 192.168.100.9
• Management Module 227: 192.168.100.10
• Management Module 228: 192.168.100.11
It is necessary for each management module to have a unique IP address for the
following reasons:
• Unique IP addresses are used when sending syslog messages from a managed
spine to a syslog server.
• Gives the user the ability to ping each management spine separately.
