A

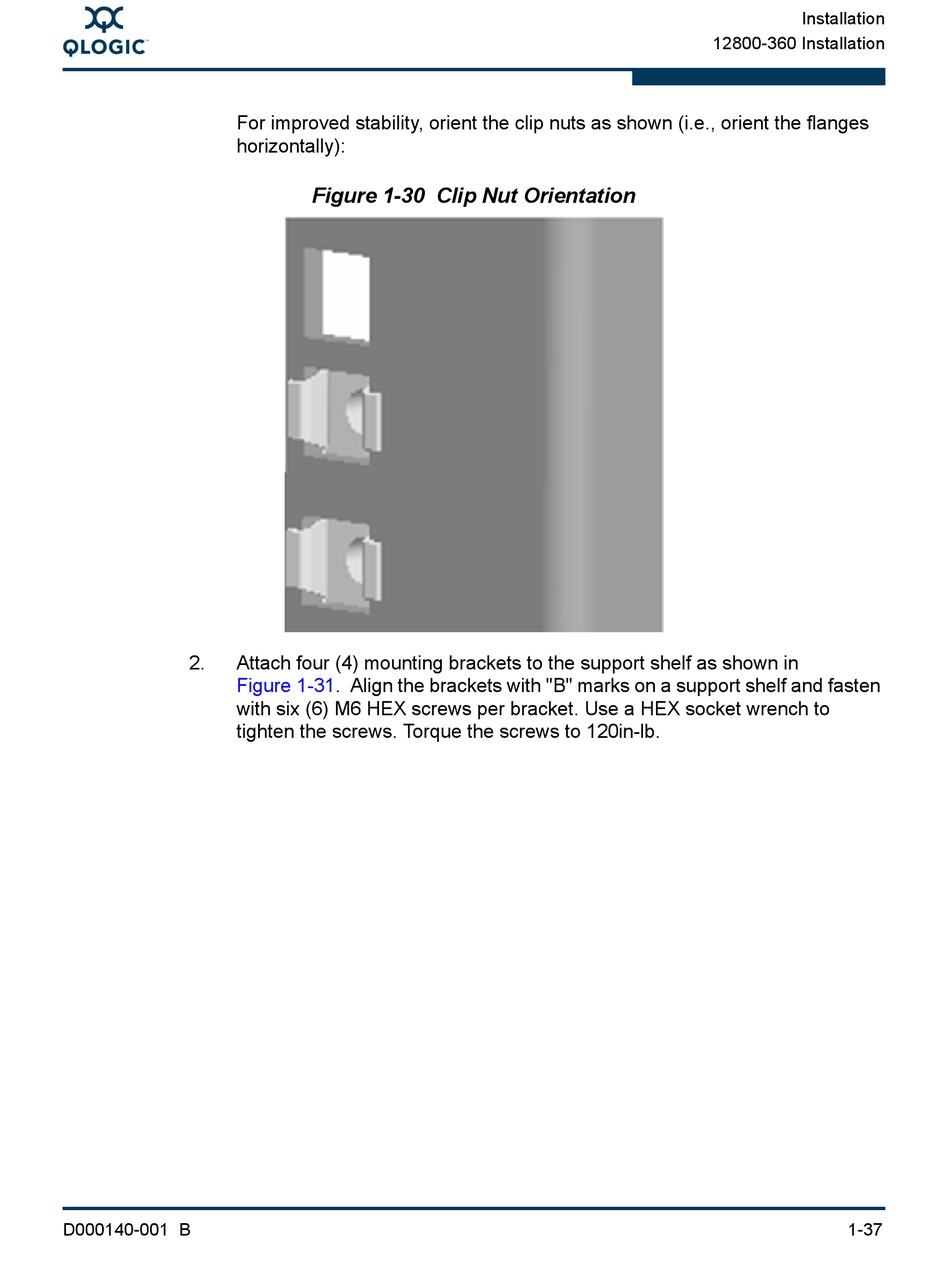

For improved stability, orient the clip nuts as shown (i.e., orient the flanges
horizontally):
2.
Attach four (4) mounting brackets to the support shelf as shown in
Figure
with six (6) M6 HEX screws per bracket. Use a HEX socket wrench to
tighten the screws. Torque the screws to 120in-lb.
D000140-001 B
Figure 1-30 Clip Nut Orientation
1-31. Align the brackets with "B" marks on a support shelf and fasten
Installation
12800-360 Installation
1-37
