Installation
QLogic 12000 Six-Port Upgrade

Procedures

1. Record the 12300-BS18 serial number.
2. Go to the QLogic Feature Activation/License Key web site
http://lk.qlogic.com.
3. Enter the 12300-BS18 serial number. Click Continue. The system validates
the serial number and moves to the next screen.
4. Click Activate License Key and click Continue.
5. Enter your email address in the Email: and Confirm Email: text boxes.
Click Continue.
6. Enter all applicable contact information. Click Continue.
7. Enter the transaction code and switch GUID, then click Continue.
NOTE:The FRU GUID can be found:
8. If the information displayed is correct, click Yes.
9. Review the end-user license agreement, then click Agree.
10. The screen displays the generated license key, along with the updated port
count status. To send this information to another user, enter an email
address and click Send. When finished, click Done.
1-76

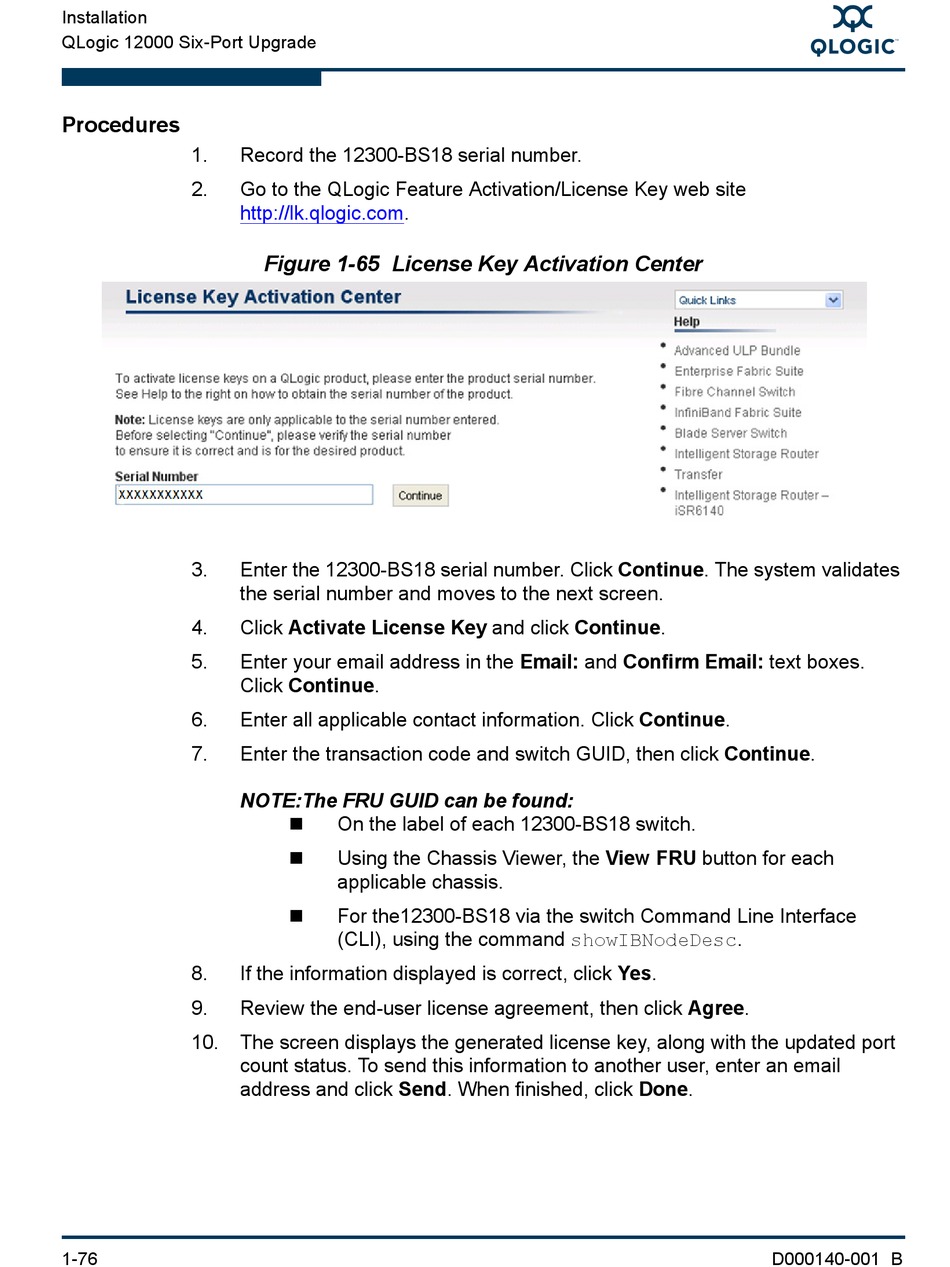

Figure 1-65 License Key Activation Center
On the label of each 12300-BS18 switch.
Using the Chassis Viewer, the View FRU button for each
applicable chassis.
For the12300-BS18 via the switch Command Line Interface
(CLI), using the command showIBNodeDesc.
S
D000140-001 B
