Qlogic 12000 Installation Manual page 35

12000/12800 series
Hide thumbs Also See for QLogic 12000:
Table of Contents

Advertisement

A
Installation
12800-180 Installation
3. Install support rails in the rack. Fasten with two (2) M6 screws per EIA rail to
pre-installed clip nuts and torque to 30 in-lb.

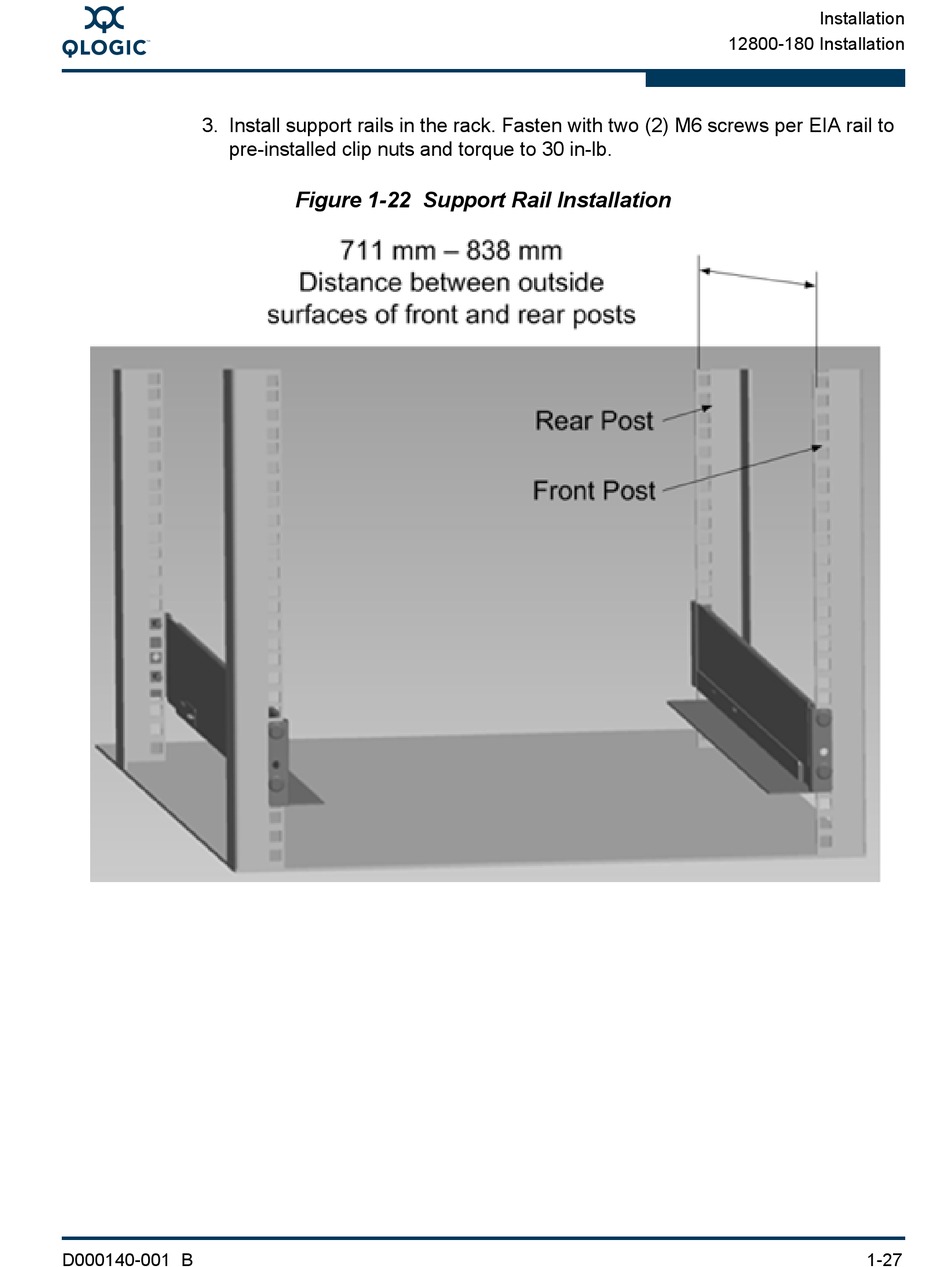

Figure 1-22 Support Rail Installation
D000140-001 B
1-27
