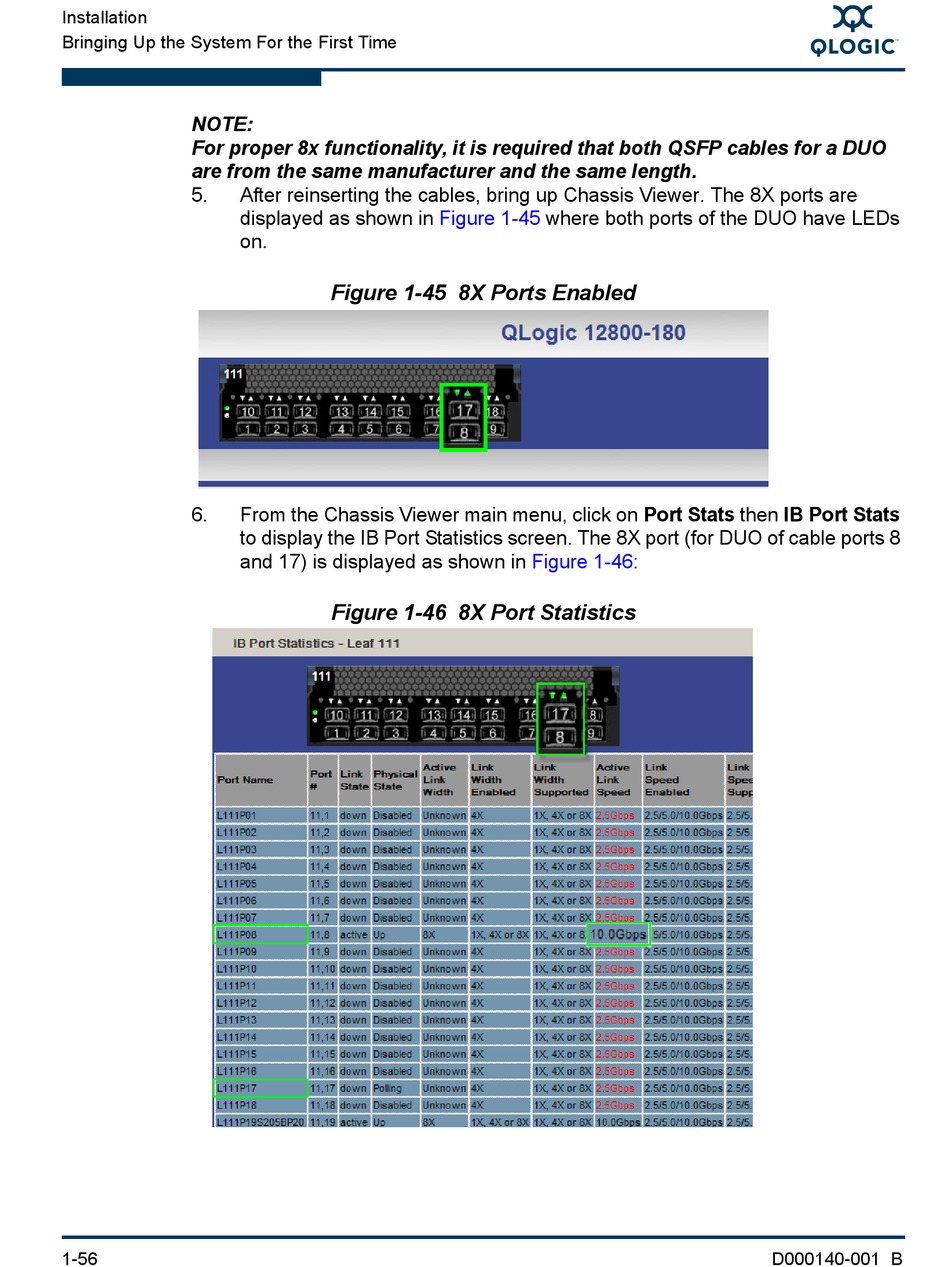

Qlogic 12000 Installation Manual page 64

Installation
Bringing Up the System For the First Time
NOTE:
For proper 8x functionality, it is required that both QSFP cables for a DUO
are from the same manufacturer and the same length.
5. After reinserting the cables, bring up Chassis Viewer. The 8X ports are
displayed as shown in
on.
6. From the Chassis Viewer main menu, click on Port Stats then IB Port Stats
to display the IB Port Statistics screen. The 8X port (for DUO of cable ports 8
and 17) is displayed as shown in
1-56
Figure 1-45
Figure 1-45 8X Ports Enabled
Figure 1-46 8X Port Statistics
where both ports of the DUO have LEDs
Figure 1-46:
