Installing the chassis in the rack: Align the chassis with the rack. Raise the
chassis using a pallet jack such that the bottom of the chassis is at or slightly
higher than the top surface of the support shelf pre-installed in the rack.
Lock the pallet jack wheels. Use a group of people to push the chassis from
the front to slide it off the pallet and on the support shelf. The chassis should
be inserted into the rack until the rear of the chassis base is against the rear
support bracket.
D000140-001 B

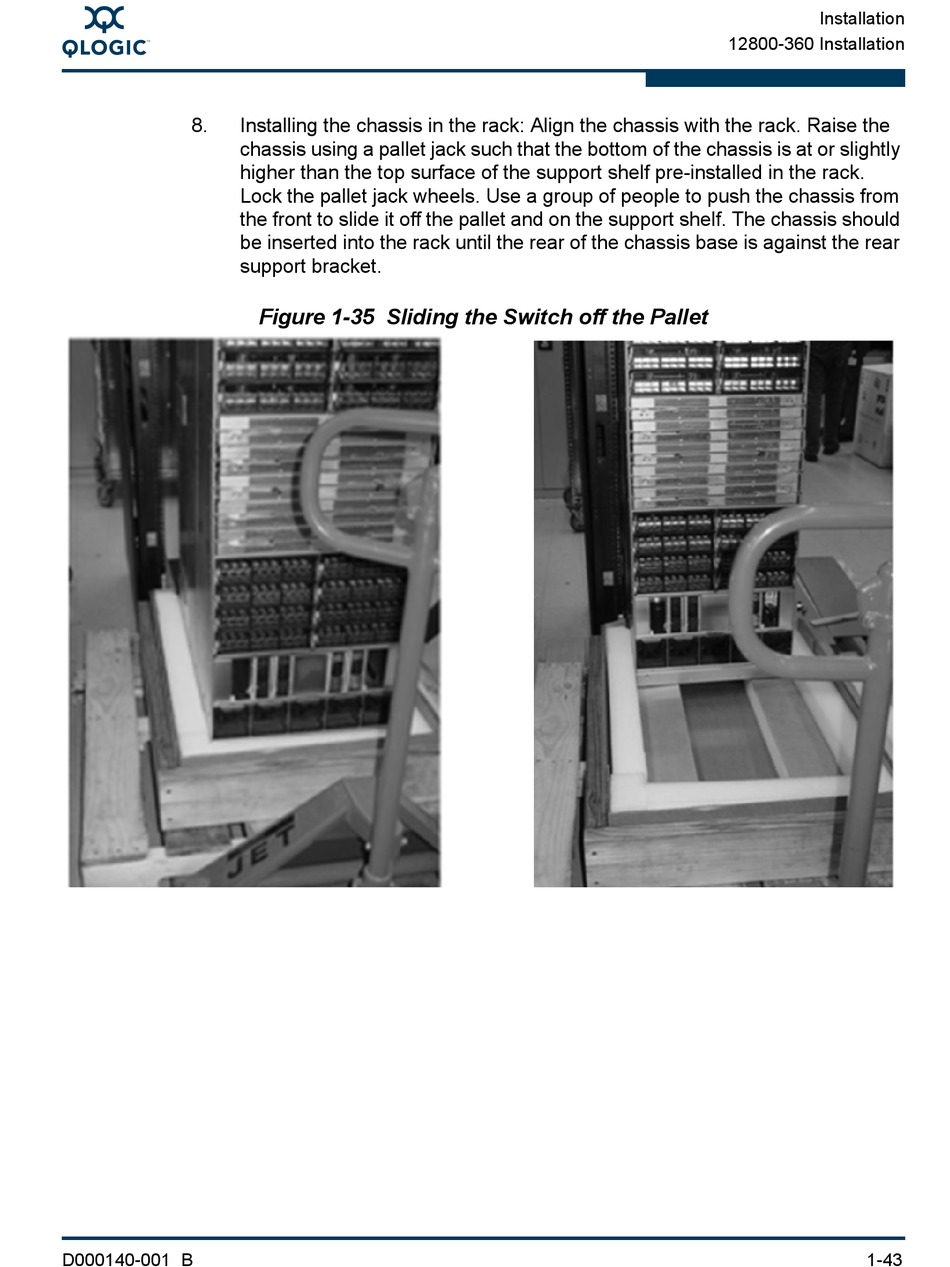

Figure 1-35 Sliding the Switch off the Pallet
Installation
12800-360 Installation
1-43
