Installation
12800-360 Installation
9.
Fasten the front of the chassis to the rack by installing the front support
bracket and fasten to the base of the chassis with five (5) M6 screws. Fasten
to the support shelf with seven (7) #10-32 screws. Torque to 30 in-lb.

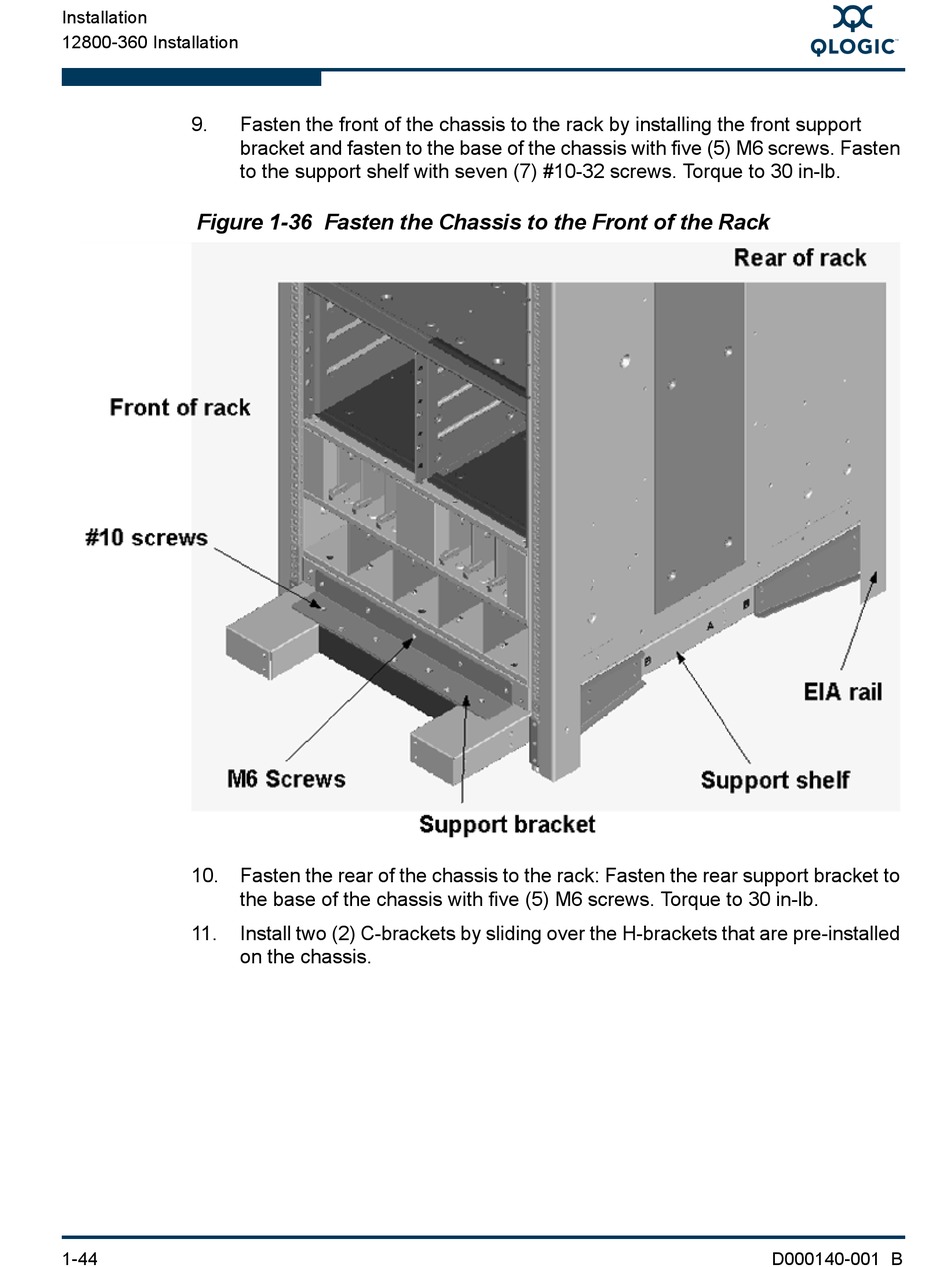

Figure 1-36 Fasten the Chassis to the Front of the Rack
10.
Fasten the rear of the chassis to the rack: Fasten the rear support bracket to
the base of the chassis with five (5) M6 screws. Torque to 30 in-lb.
11.
Install two (2) C-brackets by sliding over the H-brackets that are pre-installed
on the chassis.
1-44
S
D000140-001 B
