Install the support shelf into the rack. Fasten the M6 screws to pre-installed
clip nuts and torque to 30 in-lb. There are three (3) screws per mounting
bracket.

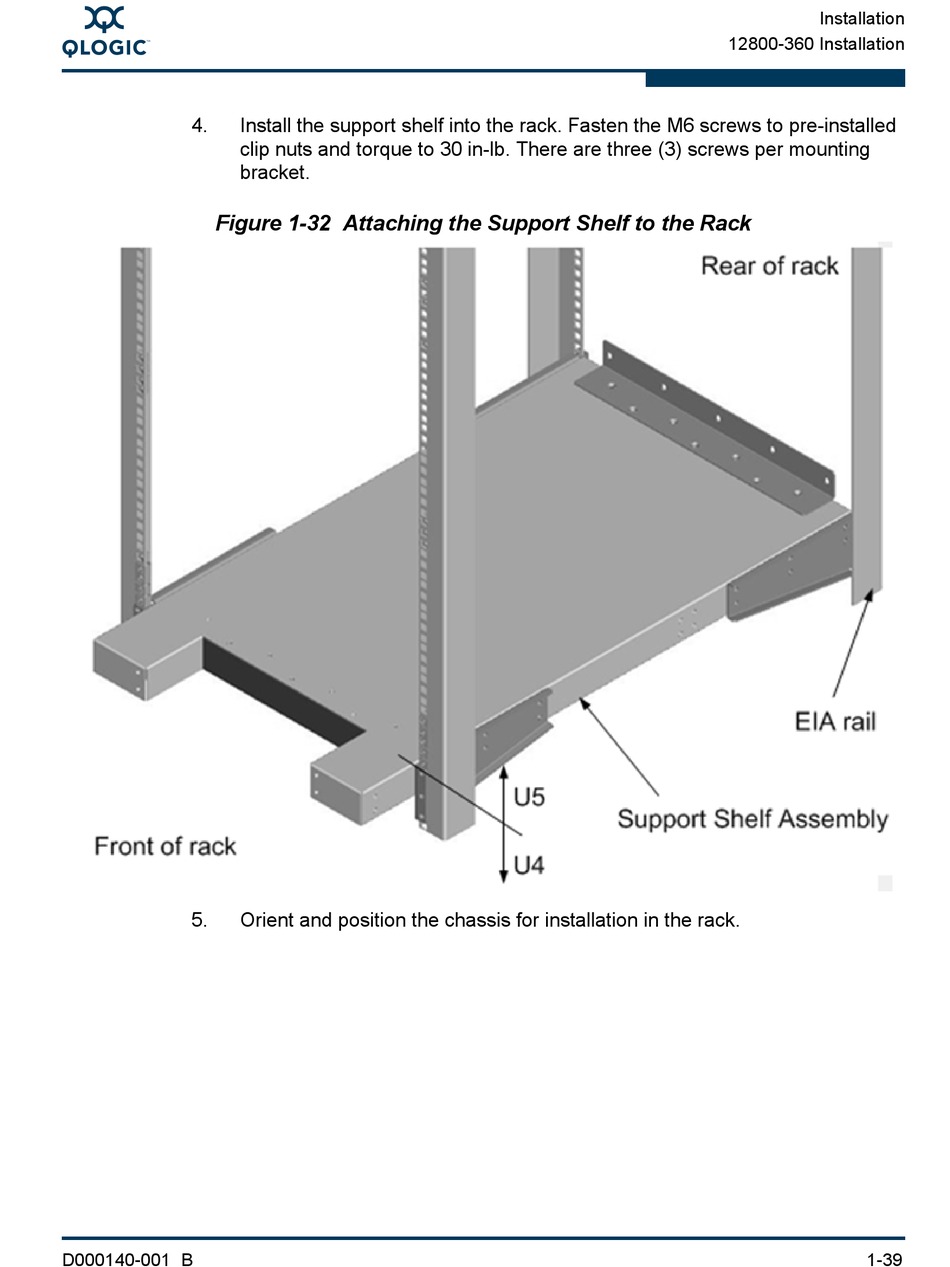

Figure 1-32 Attaching the Support Shelf to the Rack
5.
Orient and position the chassis for installation in the rack.
D000140-001 B
Installation
12800-360 Installation
1-39
