Mainboard Overview - Top (Connectors)

4
5
6
1
2
3
12
11
9
8
10
7
1. MDC Connector
2. LED Cable
3. CCD Cable
4. Inverter Board
5. COM Port Cable
6. Speaker-1 Cable
7. Keyboard Cable
8. TouchPad Cable
9. Audio "DJ" Cable
10. Microphone Cable
11. Speaker-2 Cable
12. CPU Fan Cable
Mainboard Overview - Top (Connectors) 1 - 13
Introduction

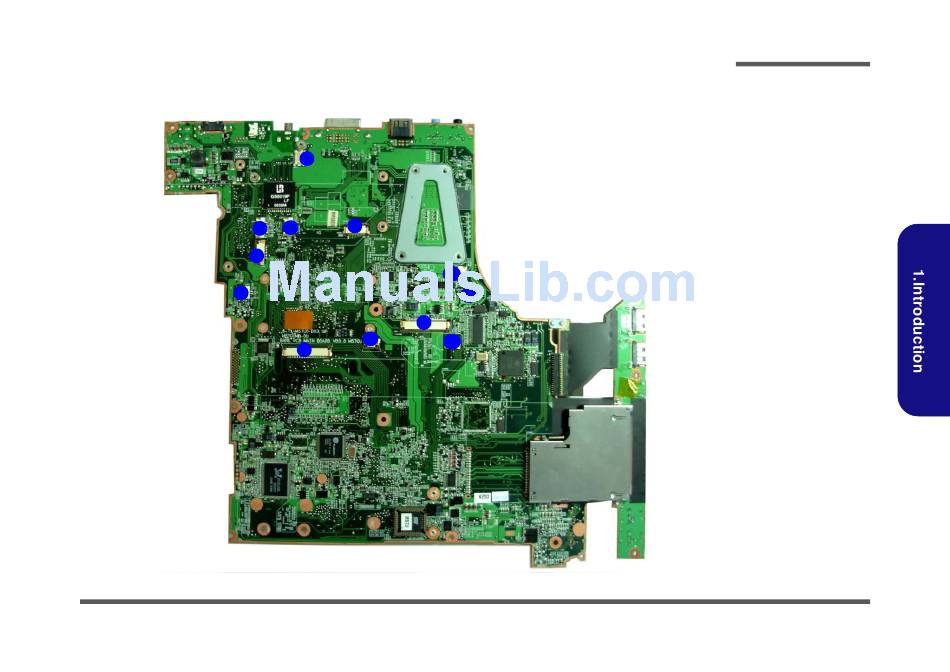

Figure 9
Mainboard Top
Connectors
Connector
Connector
Cable Connector
Connector
Connector
Connector
Connector
Connector
Connector
Connector
Connector
