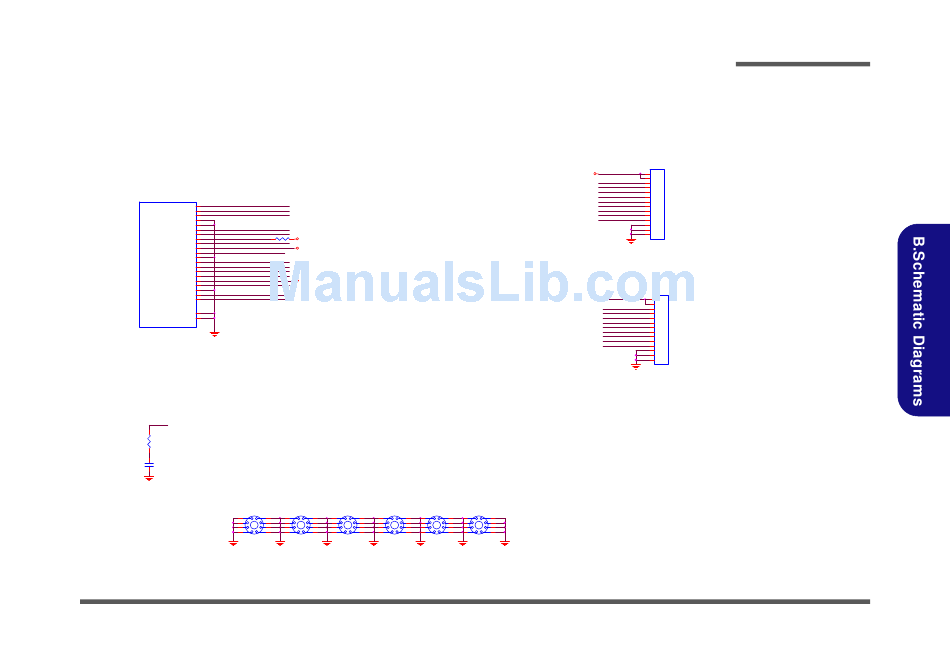

Card Reader Board

CJREADER1
1 CSD_WP
SD-WP-SW
2 CMS_DATA1/SD_DAT1
SD-DATA1
3 CMS_SDIO/SD_DAT0
SD-DATA0
4
SD-GND1
5
MS-GND1
6 CMS_BS/SD_CMD
MS-BS
7 CMS_CLK/SD_CLK
SD-CLK
8 CMS_DATA1/SD_DAT1
MS-DATA1
9 CMS_SDIO/SD_DAT0
MS-DATA0
10
SD-VCC
11 CMS_DATA2/SD_DAT2
MS-DATA2
12
SD-GND2
13 CMS_CD#
MS-INS
14 CMS_DATA3/SD_DAT3
MS-DATA3
15 CMS_BS/SD_CMD
SD-CMD
16 CMS_CLK/SD_CLK
MS-SCLK
17
MS-VCC
18 CMS_DATA3/SD_DAT3
SD-DATA3
19
MS-GND2
20 CMS_DATA2/SD_DAT2
SD-DATA2
21 CSD_CD#
SD-CD-SW
22
GND1
23
GND2
MDR019-X0-0X10
CDGND
CMS_CLK/SD_CLK
CR2
10
Z2008
CC1
10P
CDGND
Close to socket
CH5
2
3
4
1
5
MTH315D111
CDGND
CR1
CMS_SD3_3V
*0
CMS_SD3_3V
CMS_SD3_3V
CH6 CH1 CH2 CH3
9 2 9 2 9 2 9 2
8 3 8 3 8 3 8 3
7 4 7 4 7 4 7 4
1 1 1 1
6 5 6 5 6 5 6 5
MTH315D111 MTH315D111 MTH315D111 MTH315D111
CDGND CDGND CDGND CDGND
FOR M560U
CMS_SD3_3V
CMS_BS/SD_CMD
CMS_SDIO/SD_DAT0
CMS_DATA1/SD_DAT1
CMS_DATA2/SD_DAT2
CMS_DATA3/SD_DAT3
CMS_CD#
CSD_CD#
CMS_CLK/SD_CLK
CSD_WP
CDGND
FOR M570U
CMS_SD3_3V
CMS_BS/SD_CMD
CMS_SDIO/SD_DAT0
CMS_DATA1/SD_DAT1
CMS_DATA2/SD_DAT2
CMS_DATA3/SD_DAT3
CMS_CD#
CSD_CD#
CMS_CLK/SD_CLK
CSD_WP
CDGND
CH4
9 2 9
8 3 8
7 4 7
1
6 5 6
MTH315D111
CDGND CDGND
Schematic Diagrams
CJCREADER2
1
2
3
4
5
6
7
8
9
10
11
12
13
14
*CON14
Sheet 34 of 40
Card Reader Board
CJCREADER1
1
2
3
4
5
6
7
8
9
10
11
12
13
14
CON14
Card Reader Board B - 35
