Mainboard Overview - Top (Connectors)

All manuals and user guides at all-guides.com
2 3
1
6
5
4
7
8
9
10
11
Mainboard Overview - Top (Connectors) 1 - 11
Introduction

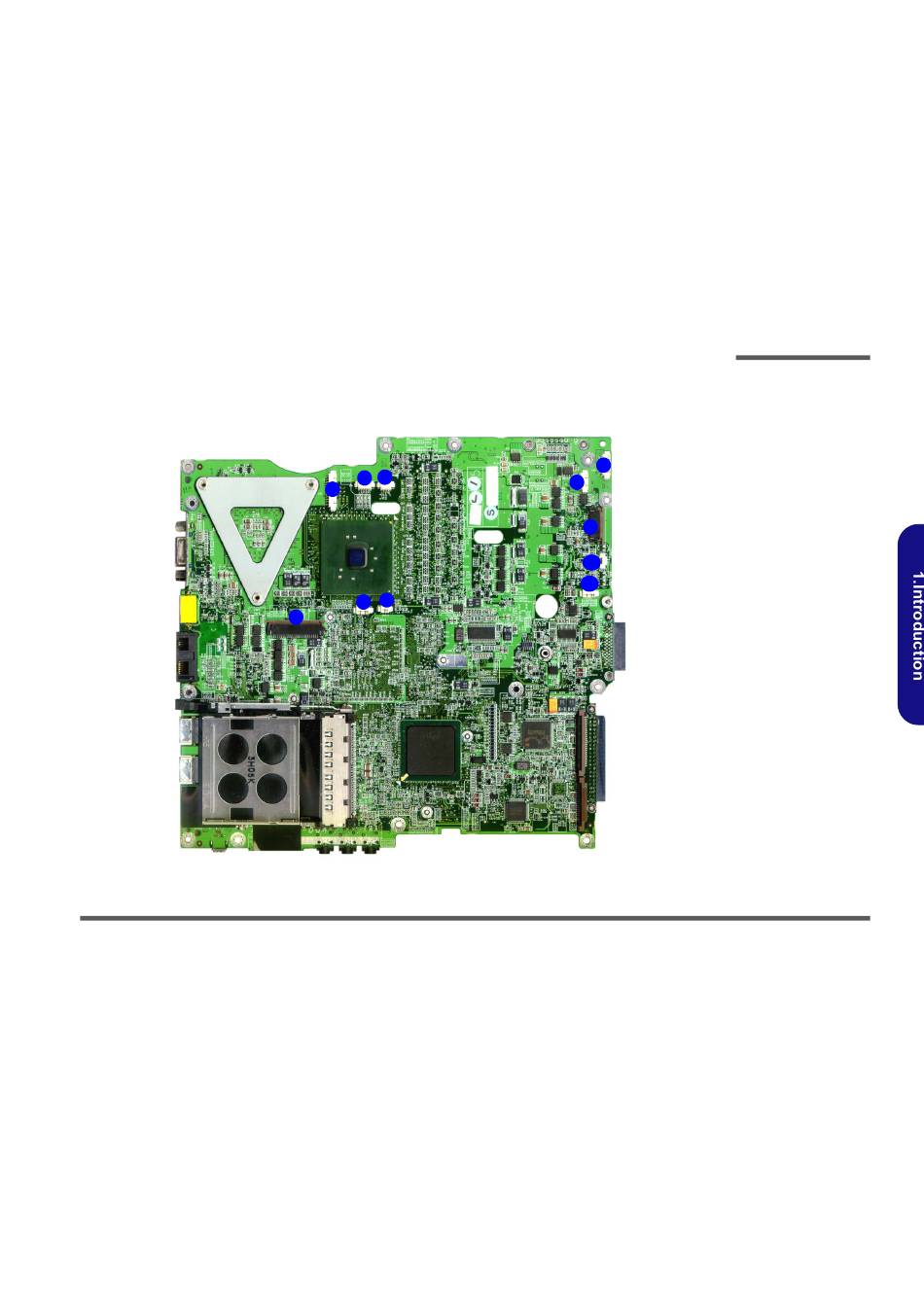

Figure 9
Mainboard Top
Connectors
1. Inverter Cable
Connector (CN2)
2. Speaker Cable
Connector
(JSPK1)
3. Fan Cable
Connector
(JFAN1)
4. Keyboard Cable
Connector (JKB1)
5. TouchPad Cable
Connector (JTP1)
6. Microphone Cable
Connector (JMIC1)
7. Power Cable
Connector (CN1)
8. CCD Cable
Connector
(JCCD1)
9. Multi-Function
Board (CN3)
10. CMOS Battery
Cable Connector
(JBAT1)
11. Speaker Cable
Connector
(JSPK2)
