Mainboard Overview - Top (Connectors)

1
8
8
8
2 3
7
9
4
10
5
8
6
8
8
11
Mainboard Overview - Top (Connectors) 1 - 11
Introduction

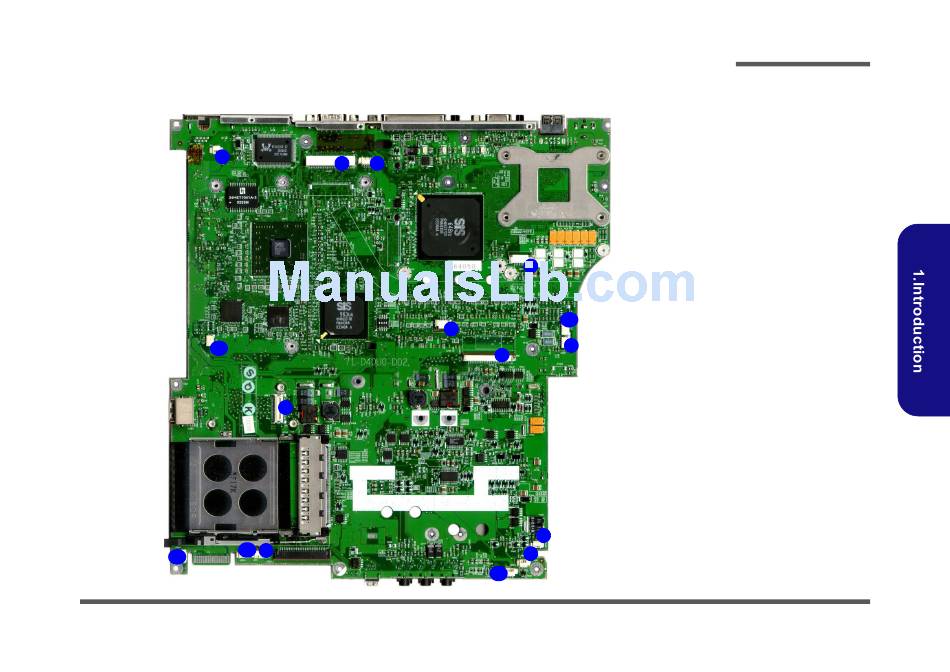

Figure 10
Mainboard Top
Connectors
1. Modem Cable
Connector (CN1)
2. LCD (and Inverter)
Connector
(JLCD1)
3. Video Camera
Cable Connector
(JCCD1)
4. Power Switch
Board Cable
Connector (JSW1)
5. TouchPad Cable
Connector (JTP1)
6. Keyboard Cable
Connector (JKB1)
7. Modem Module
Connector
(JMDC1)
8. Speaker Cable
Connector
(JSPK1-6)
9. Card Reader
Connector (JCR1)
10. Fan Cable
(JFAN2)
11. TV Tuner
Connector (JTV1)
