M660N Mainboard Overview - Top (Connectors)

11
14
16
All manuals and user guides at all-guides.com
8
9
10
12
13
14
3
2
1
4
5
6
7
7
15
M660N Mainboard Overview - Top (Connectors) 1 - 11
Introduction

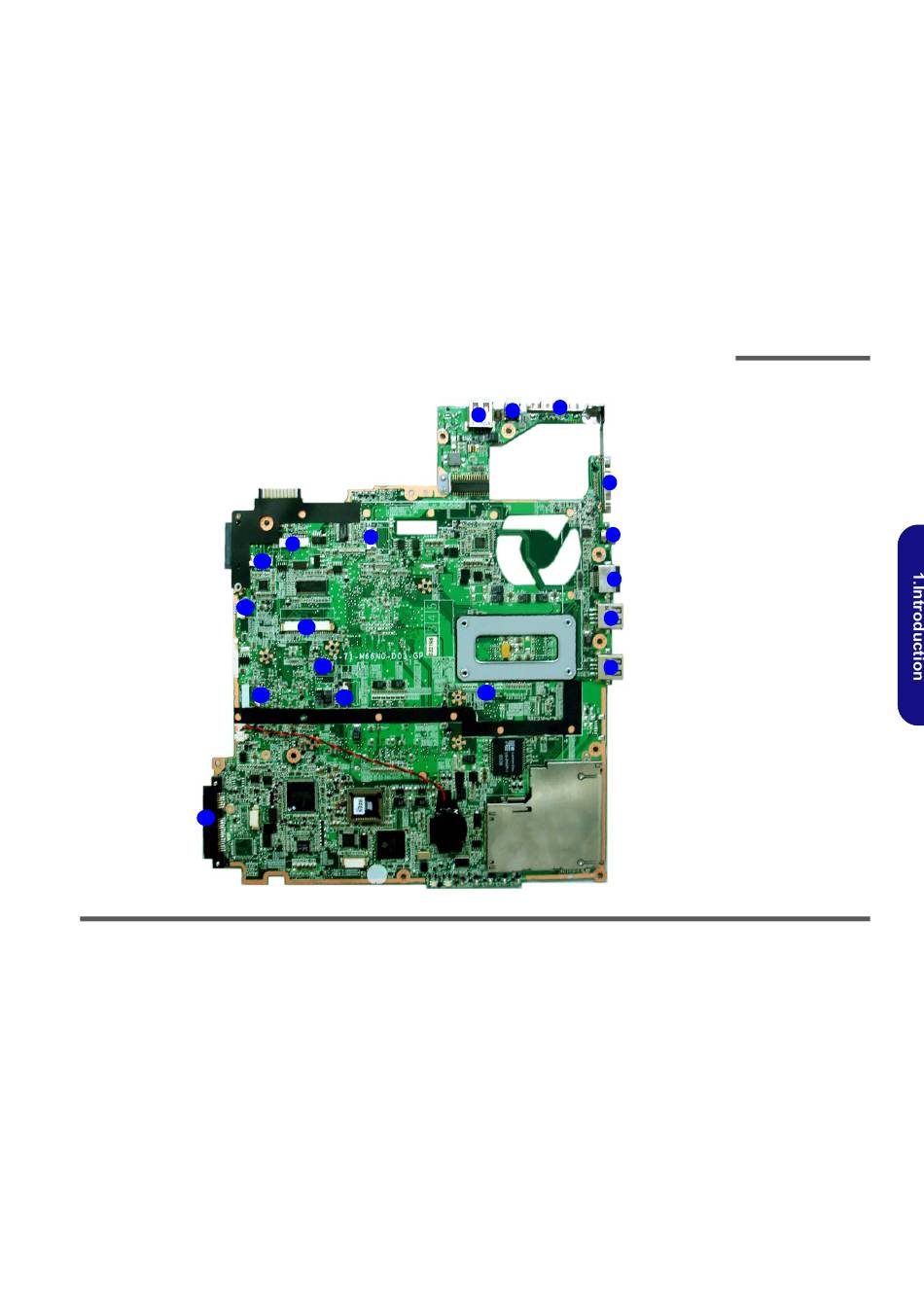

Figure 10
Mainboard Top
Connectors
1. USB Port
2. Mini-IEEE 1394
Port
3. Serial Port
4. External Monitor
Port
5. 7-Pin S-Video-Out
Jack
6. RJ-45 LAN Jack
7. USB Port
8. CCD Cable
Connector
9. Debug Cable
Connector
10. Inverter Cable
Connector
11. Speaker Cable
Connector
12. Keyboard Cable
Connector
13. Touch Pad Cable
Connector
14. Hotkey Cable
Connector
15. Microphone Cable
Connector
16. SATA HDD
Connector
