SYSYTEM BLOCK DIAGRAM

Sheet 1 of 40
SYSYTEM BLOCK
DIAGRAM
USB 3 PORT
BULE TOOTH
Giga-LAN
RTL8110SBL
B - 2 SYSYTEM BLOCK DIAGRAM

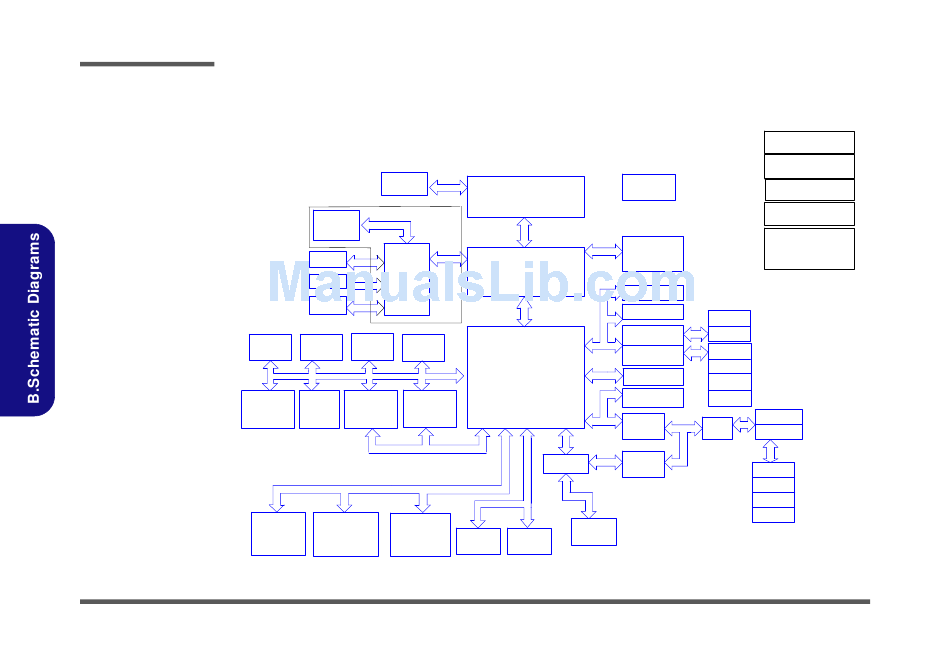

M570U BLOCK DIAGRAM
IMVP-6 VR
VGA Daughter Card
VRAM
VGA
LCD
TV OUT
DVI PORT
USB 0 USB 1 USB 6
USB 7
PORT PORT PORT
PORT
USB 2.0 480MHz
USB 5 USB 2 PORT
USB 4 PORT
PORT MINI PCIE
NEW CARD
CCD SOCKET
PCI_E
PCI BUS 33MHz
1394
Realtek
Card Reader
MINI PCI SLOT
FOR TV-TUNE
TI7402
Yonah CPU
478uFCPGA
FSB DDR2
667MHz 667MHz
Cailstoga 945PM
PCI_E
x16 1466 FCBGA
DMI
LPC
ICH7-R
SPI I/F
I/O Controller
Hub
AZALIA
IDE BUS
BlueBird
AC 97
IDE BUS
SATA150
CD-ROM
SATA HDD SATA HDD
1.+VCORE
1.+1.05VS,+2.5VS
CK-410M
1.+1.8V,+1.5VS,+0.9VS
1.CHARGER,DC IN
1.+VDD3,+VDD5
DDR 2
2.+3VH8
SO-DIMM
3.+3V,+5V,+3VS,+5VS
x2 4.+5VCDROM,+3VCDROM
TPM
FWH
COM PORT
NS SIO FIR
INT K/B
H8 KBC
FAN
SPI Flash
Battery
CIR
MDC
Sub-Woofer
AZALIA
SRS
CODEC
AMP
AC 97
CODEC
SPDIF
SPKOUT
MIC IN
LINE IN
