Mainboard Overview - Top (Connectors)

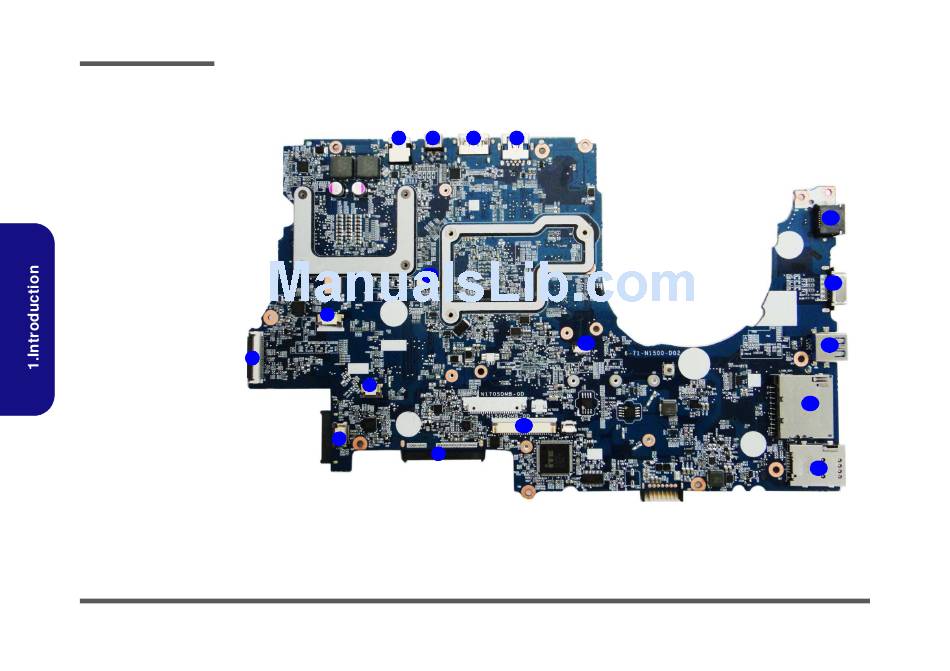

Figure 9
Mainboard Top
Connectors
1. DC-In Jack
2. Mini Display Port
3. HDMI-Out Port
4. USB Port 3.0
Connector
5. Audio Board
Connector
6. Finger Print
Connector
7. TP Connector
8. LED Board
Connector
9. HDD Connector
10. Keyboard Cable
Connector
5
11. USIM Card
Reader
12. Multi-in-1 Card
Reader
13. USB Port 3.0
Connector
14. External Monitor
Port
15. RJ-45 LAN Jack
16. Power Switch
Board Connector
17. Speaker
Connector
1 - 10 Mainboard Overview - Top (Connectors)
1 2 3
17
6
7
8
9
4
16
10
15
14
13
12
11
