EUROCOM m248 User Manual

Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual
V13.3.10

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the m248 and is the answer not in the manual?

Questions and answers

Related Manuals for EUROCOM m248

Summary of Contents for EUROCOM m248

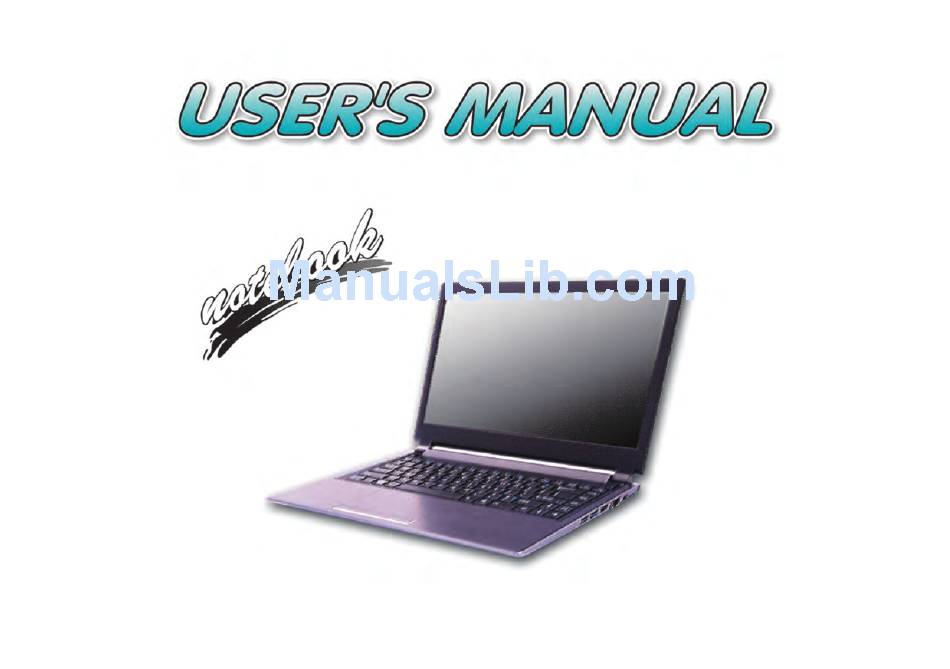

  • Page 1 V13.3.10...
  • Page 3 Preface Notice The company reserves the right to revise this publication or to change its contents without notice. Information contained herein is for reference only and does not constitute a commitment on the part of the manufacturer or any subsequent vendor. They assume no responsibility or liability for any errors or inaccuracies that may appear in this publication nor are they in anyway responsible for any loss or damage resulting from the use (or misuse) of this publication.

  • Page 4: Erp Off Mode Power Consumption Statement

    Preface R&TTE Directive This device is in compliance with the essential requirements and other relevant provisions of the R&TTE Direc- tive 1999/5/EC. This device will be sold in the following EEA countries: Austria, Italy, Belgium, Liechtenstein, Denmark, Lux- embourg, Finland, Netherlands, France, Norway, Germany, Portugal, Greece, Spain, Iceland, Sweden, Ireland, United Kingdom, Cyprus, Czech Republic, Estonia, Hungary, Latvia, Lithuania, Malta, Slovakia, Poland, Slov- enia.
  • Page 5 Preface CE Marking This device has been tested to and conforms to the regulatory requirements of the European Union and has at- tained CE Marking. The CE Mark is a conformity marking consisting of the letters “CE”. The CE Mark applies to products regulated by certain European health, safety and environmental protection legislation.

  • Page 6: Fcc Statement

    Preface FCC Statement (Federal Communications Commission) You are cautioned that changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment. This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules.

  • Page 7: Fcc Rf Radiation Exposure Statement

    Preface FCC RF Radiation Exposure Statement: This Transmitter must not be co-located or operating in conjunction with any other antenna or transmitter. This equipment complies with FCC RF radiation exposure limits set forth for an uncontrolled environment. This equipment should be installed and operated with a minimum distance of 20 centimeters between the radiator and your body.

  • Page 8: Important Safety Instructions

    Preface IMPORTANT SAFETY INSTRUCTIONS Follow basic safety precautions, including those listed below, to reduce the risk of fire, electric shock, and injury to persons when using any electrical equipment: Do not use this product near water, for example near a bath tub, wash bowl, kitchen sink or laundry tub, in a wet basement or near a swimming pool.

  • Page 9: Instructions For Care And Operation

    Preface Instructions for Care and Operation The notebook computer is quite rugged, but it can be damaged. To prevent this, follow these suggestions: Don’t drop it, or expose it to shock. If the computer falls, the case and the components could be damaged. Do not expose the computer Do not place it on an unstable Do not place anything heavy...
  • Page 10 Preface Avoid interference. Keep the computer away from high capacity transformers, electric motors, and other strong magnetic fields. These can hinder proper performance and damage your data. Follow the proper working procedures for the computer. Shut the computer down properly and don’t forget to save your work.

  • Page 11: Power Safety

    Preface Power Safety The computer has specific power requirements: • Only use a power adapter approved for use with this computer.  • Your AC/DC adapter may be designed for international travel but it still requires a Power Safety steady, uninterrupted power supply. If you are unsure of your local power specifications, Warning consult your service representative or local power company.

  • Page 12: Polymer Battery Precautions

    Preface Polymer Battery Precautions Note the following information which is specific to polymer batteries only, and where applicable, this overrides the general battery precaution information overleaf. • Polymer batteries may experience a slight expansion or swelling, however this is part of the battery’s safety mecha- nism and is not a cause for concern.

  • Page 13: Battery Precautions

    Preface Battery Precautions • Only use batteries designed for this computer. The wrong battery type may explode, leak or damage the computer. • Do not remove any batteries from the computer while it is powered on. • Do not continue to use a battery that has been dropped, or that appears damaged (e.g. bent or twisted) in any way. Even if the computer continues to work with a damaged battery in place, it may cause circuit damage, which may possibly result in fire.

  • Page 14: Cleaning

    Preface Cleaning Do not apply cleaner directly to the computer; use a soft clean cloth. Do not use volatile (petroleum distillates) or abrasive cleaners on any part of the computer. Servicing Do not attempt to service the computer yourself. Doing so may violate your warranty and expose you and the computer to electric shock.

  • Page 15: Travel Considerations

    Preface Travel Considerations Packing As you get ready for your trip, run through this list to make sure the system is ready to go: Check that the battery pack and any spares are fully charged. Power off the computer and peripherals. Close the display panel and make sure it’s latched.
  • Page 16 Preface On the Road In addition to the general safety and maintenance suggestions in this preface, and Chapter 8: Troubleshooting, keep these points in mind: Hand-carry the notebook - For security, don’t let it out of your sight. In some areas, computer theft is very common.
  • Page 17 Preface Developing Good Work Habits Developing good work habits is important if you need to work in front of the computer for long periods of time. Improper work habits can result in discomfort or serious injury from repetitive strain to your hands, wrists or other joints.

  • Page 18: Lcd Screen Care

    Preface Lighting Proper lighting and comfortable display viewing angle can reduce eye strain and muscle fatigue in your neck and shoulders. • Position the display to avoid glare or reflections from overhead lighting or outside sources of light. • Keep the display screen clean and set the brightness and contrast to levels that allow you to see the screen clearly. •...

  • Page 19: Table Of Contents

    Preface Contents Notice ................................I ErP Off Mode Power Consumption Statement: ................... II FCC Statement ............................IV FCC RF Radiation Exposure Statement: ..................... V Instructions for Care and Operation ......................VII Power Safety ...............................IX Polymer Battery Precautions ........................X Battery Precautions .............................XI Cleaning ..............................
  • Page 20 Preface System Map: LCD Panel Open ........................1-6 LED Indicators ............................1-7 Keyboard ..............................1-8 Keyboard Shortcuts ...........................1-9 Function/Hot Key Indicators ........................1-10 Control Center ............................1-11 System Map: Front & Left Views ......................1-12 System Map: Right & Rear Views ......................1-13 System Map: Bottom View ........................1-14 3G Module USIM Card Installation ......................1-15 Windows 8 Touch Screen Controls/Gestures ..................1-16 Touch Keyboard ............................1-18...
  • Page 21 Preface Features & Components Overview ..............................2-1 Hard Disk Drive/Solid State Drive ......................2-2 Multi-In-1 Push-Push Card Reader ......................2-3 Touchpad and Buttons/Mouse ........................2-4 One-Finger ..............................2-8 Multi-Finger .............................2-11 Additional ..............................2-13 Audio Features ............................2-14 Setup for Audio Recording ........................2-15 Power Management Overview ..............................3-1 The Power Sources ............................3-2 AC/DC Adapter ............................3-2 Battery ................................3-2 Turning On the Computer ..........................3-3...
  • Page 22 Preface Configuring the Power Buttons .........................3-8 Resuming Operation ..........................3-10 Power Conservation Modes ........................3-11 Battery Information ..........................3-13 Battery Power ............................3-13 Conserving Battery Power ........................3-14 Battery Life ..............................3-15 New Battery .............................3-15 Recharging the Battery with the AC/DC Adapter ...................3-15 Proper handling of the Battery Pack ......................3-16 Battery FAQ .............................3-17 Drivers &...
  • Page 23 Preface Video (VGA) .............................4-7 LAN ................................4-7 CardReader ..............................4-7 Touchpad ..............................4-7 Airplane ..............................4-7 Hot Key ..............................4-8 MEI Driver ..............................4-8 Audio .................................4-8 Windows Experience Index ........................4-9 Optional Drivers ............................4-10 BIOS Utilities Overview ..............................5-1 The Setup Utility ............................5-2 Failing the POST ............................5-3 Fatal Errors ..............................5-3 Non-Fatal Errors ............................5-3 Setup Screens .............................5-4 Main Menu ..............................5-5...
  • Page 24 Preface MB Series / BIOS Revision / KBC/EC firmware Revision ..............5-6 Advanced Menu ............................5-7 Intel Smart Connect Technology (Advanced Menu) .................5-7 Intel(R) Rapid Start Technology (Advanced Menu) .................5-8 Intel Anti-Theft Technology (Advanced Menu) ..................5-8 SATA Mode (Advanced Menu) ........................5-8 Boot Logo (Advanced Menu) ........................5-8 Power On Boot Beep (Advanced Menu) ....................5-9 Battery Low Alarm Beep (Advanced Menu) .....................5-9 Security Menu ............................5-10...
  • Page 25 Preface Upgrading The Computer Overview ..............................6-1 When Not to Upgrade ..........................6-2 Removing the Battery ..........................6-3 Removing the Component Bay Cover .......................6-4 Replacing the Component Bay Cover .......................6-5 Upgrading the Hard/Solid State Disk Drive ....................6-6 Removing the Hard Disk Bay Cover ......................6-7 Replacing the HDD Bay Cover .........................6-8 Upgrading the System Memory (RAM) ....................6-11 Modules &...
  • Page 26 Preface 3rd Party Bluetooth (V4.0) Combo Driver Installation ................7-18 Intel Bluetooth Combo Driver Installation ....................7-18 Bluetooth Configuration in Windows 8 ....................7-19 Trusted Platform (Security) Module ......................7-23 Enabling & Activating TPM ........................7-24 Trusted Platform Module (TPM) Driver Installation ................7-26 Initializing TPM ............................7-27 Infineon Security Platform Settings Tool ....................7-29 Intel®...
  • Page 27 Preface 3G Configuration in Windows 8 ......................7-62 EM820W 3G Module PIN Code & Power-Saving ..................7-65 Troubleshooting Overview ..............................8-1 Basic Hints and Tips ..........................8-2 Backup and General Maintenance ......................8-3 Viruses ...............................8-4 Upgrading and Adding New Hardware/Software ..................8-5 Problems and Possible Solutions .......................8-7 Resolving the “Insert a SIM”...
  • Page 28 Preface Display Devices & Options ........................C-15 Attaching Other Displays ........................C-16 Attaching Other Displays - Devices (Charms Bar) ................C-18 Configuring an External Display In Windows ..................C-19 HDMI Audio Configuration ........................C-21 Specifications Processors ..............................D-2 Display ..............................D-2 Memory ..............................D-2 Video Adapter ............................D-2 Storage ..............................D-2 Audio ................................D-2 Keyboard &...
  • Page 29 Preface BIOS .................................D-3 Security ..............................D-3 Features ..............................D-4 Operating System ............................D-4 Environmental Spec ..........................D-4 Dimensions & Weight ..........................D-4 XXVII...
  • Page 30 Preface XXVIII...

  • Page 31: Quick Start Guide Overview

    Quick Start Guide Chapter 1: Quick Start Guide Overview This Quick Start Guide is a brief introduction to the basic features of your computer, to navigating around the computer and to getting your system started. The remainder of the manual covers the following: •...

  • Page 32: Advanced Users

    Quick Start Guide Advanced Users If you are an advanced user you may skip over most of this Quick Start Guide. However you may find it useful to refer to “What to Install” on page 4 - “BIOS Utilities” on page 5 - 1 “Upgrading The Computer”...

  • Page 33: Not Included

    Quick Start Guide Not Included Operating Systems (e.g. Windows 8) and applications (e.g. word processing, spreadsheet and database pro- grams) have their own manuals, so please consult the appropriate manuals.  Drivers If you are installing new system software, or are re-configuring your computer for a different system, you will need to install the drivers listed in “Drivers &...

  • Page 34: System Startup

    Quick Start Guide System Startup Remove all packing materials. Place the computer on a stable surface. Securely attach any peripherals you want to use with the notebook (e.g. keyboard and mouse) to their ports. Attach the AC/DC adapter to the DC-In jack on the right of the computer, then plug the AC power cord into an outlet, and connect the AC power cord to the AC/DC adapter.

  • Page 35: System Software

    Quick Start Guide System Software Your computer may already come with system software pre-installed. Where this is not the case, or where you are re-configuring your computer for a different system, you will find the Windows 8 operating system is sup- ported.

  • Page 36: System Map: Lcd Panel Open

    Quick Start Guide System Map: LCD Panel Open Figure 1 - 2 LCD Panel Open  Built-in PC Camera Wireless Device PC Camera LED Operation Aboard Built-In Microphone Aircraft Power Button The use of any portable elec- Keyboard tronic transmission devices Touchpad &...

  • Page 37: Led Indicators

    Quick Start Guide LED Indicators The LED indicators on the computer display helpful information about the current status of the computer. Icon Color Description Orange DC Power is Plugged In Green The Computer is On Blinking Green The Computer is in Sleep Mode Orange The Battery is Charging Green...

  • Page 38: Keyboard

    Quick Start Guide Keyboard  The keyboard has an embedded numerical keypad for easy numeric data input, and Other Keyboards function keys to change operational features instantly. If your keyboard is dam- Function Keys aged or you just want to make a change, you can NumLk &...

  • Page 39: Keyboard Shortcuts

    Quick Start Guide Keyboard Shortcuts  The following Windows Logo Key (Winkey) keyboard shortcuts are useful for navi- gation/operation in Windows 8. Windows Logo Keyboard Shortcut Windows Logo Use the Windows logo Description Key + + D key com- bination to switch be- Toggle between the Start screen and the foremost running app or the tween the Start screen Tap Winkey...

  • Page 40: Function/Hot Key Indicators

    Quick Start Guide Function/Hot Key Indicators The function keys (F1 - F12 etc.) will act as hot keys when pressed while the Fn key is held down. In addition to the basic function key combinations; visual indicators are available when the hot key utility is installed. Keys Function Keys...

  • Page 41: Control Center

    Quick Start Guide Control Center When in the Windows Desktop application (not in the Start screen) press the Fn + Esc key combination, or double-click the icon in the notification area of the taskbar to toggle the Control Center on/off. The Con- trol Center gives quick access to frequently used controls and enables you to quickly turn the camera/Touch Pad on/off.

  • Page 42: System Map: Front & Left Views

    Quick Start Guide System Map: Front & Left Views Figure 1 - 5 Front & Left Views LED Power Indicators Security Lock Slot Microphone-In Jack Headphone-Out Jack  Vent/Fan Intake/ Outlet Overheating Speaker To prevent your computer from overheating make sure nothing blocks the Vent/Fan Intake while the computer is in use.

  • Page 43: System Map: Right & Rear Views

    Quick Start Guide System Map: Right & Rear Views Figure 1 - 6 Right & Rear Views 1. Speaker 2. Multi-in-1 Push- Push Card Reader 3. USB 3.0 Port 4. HDMI-Out Port 5. RJ-45 LAN Jack  6. DC-In Jack 7.

  • Page 44: System Map: Bottom View

    Quick Start Guide System Map: Bottom View Figure 1 - 7 Bottom View  Battery Vent/Fan Intake/ Battery Information Outlet Speakers Always completely dis- charge, then fully Component Bay charge, a new battery Cover before using it. Com- HDD Bay Cover pletely discharge and charge the battery at least once every 30...

  • Page 45: 3G Module Usim Card Installation

    Quick Start Guide 3G Module USIM Card Installation  If you have included an optional 3G module, follow the instructions below to install Power Safety the USIM card (which will be provided by your service provider). See page 7 - 62 Warning for configuration instructions.

  • Page 46: Windows 8 Touch Screen Controls/Gestures

    Quick Start Guide Windows 8 Touch Screen Controls/Gestures This computer model incorporates a touch screen and this can be used to navigate through he interface in much the same way as a mouse, touchpad and keyboard. Where you see the instruction to click an item in this man- ual, you can choose to tap/double tap the appropriate area of the screen instead.
  • Page 47 Quick Start Guide • Swipe from left and back (Display running apps) - Slide your finger from the left and quickly drag it back towards the right to display a list of apps that are currently running. Tap any app to switch to it. •...

  • Page 48: Touch Keyboard

    Quick Start Guide Touch Keyboard If you need to type on screen then the Touch Keyboard will pop up when required (e.g. when you need to type in an internet URL address in Internet Explorer). When the Touch Keyboard is displayed you have several dis- play/input options and these can be accessed from the icon at the bottom right of the keyboard.
  • Page 49 Quick Start Guide The Touch Keyboard allows you to input text without the use of an actual keyboard., and you can use writing pad to write (continuously or one character at a time) or touch keyboard to input text. Use the Help menu for further information.

  • Page 50: Windows Control Panel

    Quick Start Guide Windows Control Panel Throughout this manual you will see an instruction to open the Control Panel. In Windows 8 right-click the lower left hot corner to bring up the context menu (or use the Windows Logo Key + X key combination) and select Control Panel.

  • Page 51: Windows 8 Start Screen & Desktop

    Quick Start Guide Windows 8 Start Screen & Desktop The Apps, control panels, utilities and programs within Windows 8 are accessed from the Start screen and/or Windows Desktop app. The Desktop (which runs as an app within the Start screen) can be accessed by clicking the Desktop item in the Start screen (or by using the Windows Logo Key + D key combination).
  • Page 52 Quick Start Guide Apps & Tiles The Windows 8 Start screen will contain a number of apps, and many more will be installed as you add more applications etc. Not all of these apps can fit on one screen so you will often need use the slider at the bottom of the screen in order to view all the necessary Apps.
  • Page 53 Quick Start Guide Desktop Application When the Desktop app is running (click the app in the Start screen or use the Windows Logo Key + D key combination) you can use lower left hot corner to switch between the Start screen and the Windows Desktop app.
  • Page 54 Quick Start Guide When the Desktop app is running you can right-click the lower left hot corner (or use the Windows Logo Key + X key combination) to bring up an advanced context  menu of useful features such as Control Panel, Programs and Features, Power Op- Display Most tions, Task Manager, Search, Windows Explorer, Command Prompt, Device Man- Recently Used...

  • Page 55: Windows 8 Charms Bar

    Quick Start Guide Windows 8 Charms Bar The right side of the screen displays the Windows 8 Charms Bar. The Charms Bar contains the Search, Share, Start, Devices and Settings menus. To access up the Charms Bar move the cursor to the upper or lower right corners of the screen, and then hover over one of the items in the Charms Bar to activate it (the bar will be black when it is active), or use the Windows Logo Key + C key combination.
  • Page 56 Quick Start Guide Charms Bar Items • Search : You can search for any file, application, Apps and control panel settings with instantaneous results. • Share : This button is used to share information with people via mail or social networks. •...

  • Page 57: Windows 8 Control Panel

    Quick Start Guide Windows 8 Control Panel In many instances throughout this manual you will see an instruction to open the Control Panel. The Control Panel can be accessed in a number of ways in Windows 8. • Click/ Search in the Windows Charms Bar (see previous page) and the search pane will pop out. Type Control Panel and select it from the results to the left.
  • Page 58 Quick Start Guide • When in the Desktop app (this does not apply to the Start screen) click on Settings in the Windows Charms Bar and select Control Panel from the menu. Figure 1 - 22 - Settings Charms Bar (Desktop App Only) •...
  • Page 59 Quick Start Guide • Right-click the lower left hot corner to bring up the menu and select Control Panel (see Figure 1 - 17 on page 1 - 24).  Keyboard Shortcut to Control Panel You can also use keyboard shortcuts to access the Control Panel. Press the Windows logo key and X to bring up the context menu, and then press P to bring up the Control Panel.

  • Page 60: Windows 8 Taskbar

    Quick Start Guide Windows 8 Taskbar In many instances throughout this manual you will see an instruction to access the notification area of the task- bar. In Windows 8 the taskbar is accessed from the Desktop application. If you are in the Start screen you will need to click the Desktop app to switch to the Desktop.

  • Page 61: Video Features

    Quick Start Guide Video Features You can switch display devices, and configure display options, from the Display control panel (in Appearances and Personalization) in Windows 8 when running the Desktop app (see “Desktop Application” on page 1 - 23 Appendix C).
  • Page 62 Quick Start Guide To access Display (Control Panel) and Screen Resolution in Windows 8: Go to the Control Panel. Click Display (icon) - In the Appearance and Personalization category. Adjust resolution.  Right-Click Desktop App You can right-click the desktop and select Screen resolution (Figure 1 - 26).
  • Page 63 Quick Start Guide To access the Intel(R) HD Graphics Control Panel: Click Advanced settings (Figure 1 - 26 on page 1 - 32) in the Screen Resolution control panel in Win- dows. Click the Intel(R)... tab and click Graphics Properties (button) (Figure 1 - 27) .

  • Page 64: Power Options

    Quick Start Guide Power Options Power Options (Hardware and Sound) can be accessed from the Control Panel. The Power Menu item in Set- tings in the Charms Bar in Windows 8 may be used to Shut down or Restart (you can also add Hibernate/ Sleep to the menu).

  • Page 65: Running Apps

    Quick Start Guide Running Apps To run apps in Windows 8 you will need to check that the Screen Resolution and User Account Control Set- tings are compatible with the system requirements. Screen Resolution Settings Switch to the Windows Desktop (click the app or use the Windows logo key + D key combination).
  • Page 66 Quick Start Guide User Account Control Settings If your computer meets the minimum screen resolution requirements, and still you can't run Metro apps, then that you have to check the status of User Account Control (UAC). Metro apps may fail to open when the UAC is turned off.

  • Page 67: Features & Components Overview

    Features & Components Chapter 2: Features & Components Overview Read this chapter to learn more about the following main features and components of the computer: • Hard Disk Drive/Solid State Drive • Multi-In-1 Push-Push Card Reader • Touchpad and Buttons/Mouse •...

  • Page 68: Hard Disk Drive/Solid State Drive

    Features & Components Hard Disk Drive/Solid State Drive  The hard disk/solid state drive is used to store your data in the computer. The HDD/ Power Safety SSD can be taken out to accommodate other serial (SATA) drives (see “Storage” on page D - 2 for specification information) The hard disk is(are) accessible after Before attempting to ac-...

  • Page 69: Multi-In-1 Push-Push Card Reader

    Features & Components Multi-In-1 Push-Push Card Reader  The card reader allows you to use some of the latest digital storage cards. Push the Card Reader Cover card into the slot and it will appear as a removable device, and can be accessed in the same way as your hard disk (s).

  • Page 70: Touchpad And Buttons/Mouse

    Features & Components Touchpad and Buttons/Mouse  The Touchpad is an alternative to the mouse; however, you can also add a mouse to Mouse Driver your computer through one of the USB ports. The Touchpad buttons function in much the same way as a two-button mouse. If you are using an ex- ternal mouse your op- erating system may be...
  • Page 71 Features & Components Elan TouchPad  Once you have installed the touchpad driver (see “Touchpad” on page 4 - 7) you can configure the functions by double-clicking the touchpad driver icon in the Mouse Driver notification area of the taskbar (or from Options in the ELAN tab in the Mouse If you are using an ex- control panel in Windows).
  • Page 72 Features & Components The Elan Smart-Pad control panel allows you to use a specific gesture (action) on the surface of the touchpad to perform specific actions to manipulate documents, ob- jects and applications. Click the menu tabs (One-finger, Multi-finger or Additional) and then the function button on the left to access the Configuration controls in the right panel.
  • Page 73 Features & Components Click the Function Description button to get a detailed description of any func- tion. Click the Default button to set any of the functions to the default setting. Figure 2 - 5 Smart-Pad Control Panel with Function Description Touchpad and Buttons/Mouse 2 - 7...

  • Page 74: One-Finger

    Features & Components One-Finger Tapping One-Finger tapping is equivalent to clicking the left mouse button to perform a point/click/select function. Figure 2 - 6 Tapping Button The left and right touchpad buttons may be configured to perform any action listed in the Button drop-down menu.
  • Page 75 Features & Components Drag and Drop You can select the different drag and drop methods from the menu provided. The ob- ject can be released when you lift the finger off the touchpad, when you tap again or after a set time delay. Figure 2 - 8 Drag and Drop Edge Scroll...
  • Page 76 Features & Components Edge Swipe Enable Edge Swipe to use a single finger to scroll from the edges of the touchpad to perform the designated function in Windows 8. Figure 2 - 10 Edge Swipe 2 - 10 Touchpad and Buttons/Mouse...

  • Page 77: Multi-Finger

    Features & Components Multi-Finger Zooming Place two fingers on the touchpad (for best results use the tips of the fingers) and slide them apart to zoom in, or closer together to zoom out. Figure 2 - 11 Zooming Scrolling The Two-Finger scrolling feature works in most scrollable windows and allows you to scroll horizontally and vertically.
  • Page 78 Features & Components Rotation You can rotate objects by using a two-finger gesture. Touch and rotate using two fin- gers on the pad in the direction required. Alternatively place a finger down on the pad and rotate the other finger around it in a circular motion (clockwise or counter- clockwise).

  • Page 79: Additional

    Features & Components Additional Palm Tracking This feature helps guard against accidental contact such as palms resting on the pad. Use the slider to adjust the sensitivity of the feature as appropriate. Figure 2 - 15 Palm Tracking Sensitivity Adjust the level of finger pressure required for the cursor to respond from this menu. Figure 2 - 16 Sensitivity Touchpad and Buttons/Mouse 2 - 13...

  • Page 80: Audio Features

    Features & Components Audio Features  You can configure the audio options on your computer from the Sound control Volume Adjustment panel in Windows, or from the Realtek HD Audio Manager icon in the taskbar The sound volume level notification area/control panel (right-click the taskbar notification area icon can be set using the vol- bring up an audio menu).

  • Page 81: Setup For Audio Recording

    Features & Components Setup for Audio Recording To record audio sources on your computer at optimum quality follow the instruc- tions below: Go to the Control Panel. Click Realtek HD Audio Manager (Hardware and Sound), or right-click the taskbar icon and select Sound Manager.
  • Page 82 Features & Components 2 - 16...

  • Page 83: Power Management Overview

    Power Management Chapter 3: Power Management  Overview OS Note Power management To conserve power, especially when using the battery, your computer power man- functions will vary slight- agement conserves power by controlling individual components of the computer ly depending on your (the monitor and hard disk drive) or the whole system.

  • Page 84: The Power Sources

    Power Management The Power Sources  The computer can be powered by either an AC/DC adapter or a battery pack. Forced Off AC/DC Adapter If the system “hangs”, and the Ctrl + Alt + Del Use only the AC/DC adapter that comes with your computer. The wrong type of AC/ key combination doesn’t DC adapter will damage the computer and its components.

  • Page 85: Turning On The Computer

    Power Management Turning On the Computer  Now you are ready to begin using your computer. To turn it on simply press the pow- Power Button as er button on the front panel. Stand by or When the computer is on, you can use the power button as a Stand by/Hibernate/ Hibernate Button Shutdown hot-key button when it is pressed for less than 4 seconds (pressing and You can use the OS’s...

  • Page 86: Power Plans

    Power Management Power Plans  The computer can be configured to conserve power by means of power plans. You Resuming can use (or modify) an existing power plan, or create a new one. Operation The settings may be adjusted to set the display to turn off after a specified time, and Table 3 - 1, on to send the computer into Sleep after a period of inactivity.
  • Page 87 Power Management Each Windows power plan will also adjust the processor performance of your ma- chine in order to save power. This is worth bearing in mind if you are experiencing any reduced performance (especially under DC/battery power). Choose High performance (you may need to click Show additional plans to view the High performance plan) for maximum performance when the computer is pow- ered from an AC power source.

  • Page 88: Power-Saving States

    Power Management Power-Saving States  You can use power-saving states to stop the computer’s operation and restart where Wake On LAN you left off. Win 7 uses the Sleep, Hibernate and Shut Down power-saving states. Support (Windows 8) Sleep Wake-On-LAN is only In Sleep all of your work, settings and preferences are saved to memory before the supported from Sleep or system sleeps.

  • Page 89: Hibernate

    Power Management Hibernate Hibernate uses the least amount of power of all the power-saving states and saves all of your information on a part of the hard disk before it turns the system off. If a power failure occurs the system can restore your work from the hard disk; if a power failure occurs when work is saved only to memory, then the work will be lost.

  • Page 90: Configuring The Power Buttons

    Power Management Configuring the Power Buttons  The power/sleep button (Fn + F4 key combo) and closed lid may be set to send the Password computer in to a power-saving state. Click Choose what the power buttons do on Protection the left menu in Power Options to bring up the menu.
  • Page 91 Power Management Adding Hibernate/Sleep to the Power Menu Add Hibernate/Sleep to the Power Menu as follows. Go to the Power Options (Hardware and Sound) control panel 1 - 27 (see page Click “Change settings that are currently unavailable” Click Choose what the power buttons do. Click to put a tick in the Hibernate/Sleep box under Shutdown settings.

  • Page 92: Resuming Operation

    Power Management Resuming Operation You can resume operation from power-saving states by pressing the power button, or in some cases pressing the sleep button (Fn + F4 key combo). Power Status To Resume Icon Color Table 3 - 1 Power Off Press the Power Button Resuming Operation...

  • Page 93: Power Conservation Modes

    Power Management Power Conservation Modes  This system supports Energy Star power management features that place comput- ers (CPU, hard drive, etc.) into a low-power sleep modes after a designated period Power Conservation of inactivity. Adjust Power Conservation Modes from the Control Center: Modes The Energy Star setting Press the Fn + Esc key combination to toggle the Control Center on/off.
  • Page 94 Power Management Ctrl + Alt + Delete Key Combination You can use the CTRL + ALT + DEL key combination from almost any of the Win- dows 8 interfaces/Apps to bring up a full-screen displaying Lock, Switch User, Log off, Change a password and Task Manager options. If you click the Power icon in the lower right corner of the screen a power management option menu appears to display Sleep, Shut down, and Restart.

  • Page 95: Battery Information

    Power Management Battery Information  Follow these simple guidelines to get the best use out of your battery. Low Battery Battery Power Warning Your computer’s battery power is dependent upon many factors, including the pro- When the battery is criti- grams you are running, and peripheral devices attached.

  • Page 96: Conserving Battery Power

    Power Management Conserving Battery Power  • Use a power plan that conserves power (e.g Power saver), however note that this may have an affect on computer performance. Windows Mobility Center • Lower the brightness level of the LCD display. The system will decrease LCD brightness slightly to save power when it is not powered by the AC/DC adapter.

  • Page 97: Battery Life

    Power Management Battery Life Battery life may be shortened through improper maintenance. To optimize the life and improve its performance, fully discharge and recharge the battery at least once every 30 days. We recommend that you do not remove the battery yourself. If you do need to re- move the battery for any reason (e.g.

  • Page 98: Proper Handling Of The Battery Pack

    Power Management Proper handling of the Battery Pack  • DO NOT disassemble the battery pack under any circumstances Caution • DO NOT expose the battery to fire or high temperatures, it may explode • DO NOT connect the metal terminals (+, -) to each other Danger of explosion if battery is incorrectly re- placed.

  • Page 99: Battery Faq

    Power Management Battery FAQ How do I completely discharge the battery? Use the computer with battery power until it shuts down due to a low battery. Don’t turn off the computer even if a message indicates the battery is critically low, just let the computer use up all of the battery power and shut down on its own.
  • Page 100 Power Management Click Change plan settings (after creating it) and click Change plan settings > Change advanced power settings. Figure 3 - 12 Change Plan Settings / Change Advanced Power Settings 3 - 18 Battery Information...
  • Page 101 Power Management Scroll down to Battery and click + to expand the battery options. Choose the options below (click Yes if a warning appears): Figure 3 - 13 Power Options Advanced Settings - Battery • Low battery levels = 0% •...
  • Page 102 Power Management How do I fully charge the battery? When charging the battery, don’t stop until the LED charging indicator light changes from orange to green. How do I maintain the battery? Completely discharge and charge the battery at least once every 30 days or after about 20 partial discharges.

  • Page 103: Drivers & Utilities

    Drivers & Utilities Chapter 4: Drivers & Utilities  Driver Installation & This chapter deals with installing the drivers and utilities essential to the operation or Power improvement of some of the computer’s subsystems. The system takes advantage of some newer hardware components for which the latest versions of most available op- When installing driv- erating systems haven’t built in drivers and utilities.

  • Page 104: Driver Installation

    Drivers & Utilities Driver Installation Insert the Device Drivers & Utilities + User’s Manual disc into the attached DVD drive. Click the message “Tap to choose what happens with this disc.” Click Run autorun.exe. Click Install Drivers (button), or Option Drivers (button) to access the Optional driver menu. Figure 4 - 1 - Drivers Installer Screen 1 4 - 2 Driver Installation...
  • Page 105 Drivers & Utilities Check the driver installation order from Table 4 - 1, on page 4 - 4 (the drivers must be installed in this order) which is the same as that listed in the Drivers Installer menu below. Click to select the driver you wish to install, (you should note down the drivers as you install them). Follow the instructions for each individual driver installation procedure as listed on the following pages.
  • Page 106 Drivers & Utilities Win 8 Driver Page # Optional Items Page # Chipset Page 4 - 7 PC Camera Module (No driver required for Windows 8) Page 7 - 2 Video (VGA) Page 4 - 7 Wireless LAN Module Page 7 - 9 Page 4 - 7 Bluetooth &...

  • Page 107: Updating/Reinstalling Individual Drivers

    Drivers & Utilities Manual Driver Installation Updating/Reinstalling Individual Drivers Click Browse CD/DVD (button) in the Drivers Install- If you wish to update/reinstall individual drivers it er application and browse to the executable file in the may be necessary to uninstall the original driver.To do appropriate driver folder.

  • Page 108: User Account Control

    Drivers & Utilities User Account Control  If a User Account Control prompt appears as part of the driver installation procedure, click Continue or Driver Installation General Guidelines Allow, and follow the installation procedure as direct- The driver installation procedure outlined in this Chapter (and in Chapter 7 Options &...

  • Page 109: Driver Installation Procedure

    Drivers & Utilities Driver Installation Procedure CardReader Insert the Device Drivers & Utilities + User’s Manual 1. Click 5.Install Cardreader Driver > Yes. disc into an attached optical (DVD) drive and click In- 2. Click Finish. stall Drivers/Option Drivers (button). Touchpad Chipset 1.

  • Page 110: Hot Key

    Drivers & Utilities Hot Key Note that after installing the audio driver the system will not return to the Drivers Installer screen. To in- 1. Click 8.Install Hotkey AP > Yes. stall any of the optional drivers listed overleaf, eject 2.

  • Page 111: Windows Experience Index

    Drivers & Utilities Windows Experience Index  After the drivers are installed follow this procedure to ensure an accurate rating from the Windows Experi- Windows Update ence Index (make sure the AC/DC adapter is plugged After installing all the drivers make sure you enable Win- in): dows Update in order to get all the latest security up- dates etc.

  • Page 112: Optional Drivers

    Drivers & Utilities Optional Drivers See the pages indicated in Table 4 - 1, on page 4 - 4 for the driver installation procedures for any modules in- cluded in your purchase option.  Optional Driver Installation Note Note that driver # 4 (Sound Blaster Cinema) is not required for this particular model.

  • Page 113: Bios Utilities Overview

    BIOS Utilities Chapter 5: BIOS Utilities  Overview BIOS Screens Note that BIOS This chapter gives a brief introduction to the computer’s built-in software: screens pictured these pages are intend- If your computer has never been set up, or you are making important changes to the ed for guidance in set- system (e.g.

  • Page 114: The Setup Utility

    BIOS Utilities The Setup Utility  Each time you turn on the computer the system takes a few seconds to conduct a BIOS Settings POST, including a quick test of the on-board RAM (memory). Warning As the POST proceeds, the computer will tell you if there is anything wrong. If there Incorrect settings can is a problem that prevents the system from booting, it will display a system summary cause your system to...

  • Page 115: Failing The Post

    BIOS Utilities Failing the POST Errors can be detected during the POST. There are two categories, “fatal” and “non- fatal”. Fatal Errors These stop the boot process and usually indicate there is something seriously wrong with your system. Take the computer to your service representative or authorized distributor/supplier as soon as possible.

  • Page 116: Setup Screens

    BIOS Utilities Setup Screens  The following pages contain additional advice on portions of the Setup. Along the top of the screen is a menu bar with menu headings. When you select a heading, a Setup Menus new screen appears. Scroll through the features listed on each screen to make chang- Setup menus es to Setup.

  • Page 117: Main Menu

    BIOS Utilities Main Menu Figure 5 - 2 Main Menu System Time & Date (Main Menu) The hour setting uses the 24-hour system (i.e., ØØ = midnight; 13 = 1 pm). If you can change the date and time settings in your operating system, you will also change these settings.

  • Page 118: Sata Port # (Main Menu)

    BIOS Utilities SATA Port # (Main Menu) Pressing Enter opens the sub-menu to show the configuration of a optical Device/ HDD on the computer’s SATA Ports. CPU/System/Extended Memory: (Main Menu) This item contains information on the CPU type and system memory, and is not user configurable.

  • Page 119: Advanced Menu

    BIOS Utilities Advanced Menu Figure 5 - 3 Advanced Menu Intel Smart Connect Technology (Advanced Menu) Smart Connect is a technology that makes checks on web applications that are open even when the computer is in sleep mode, and thus allows updates to be made with- out the need to turn the computer on.

  • Page 120: Intel(R) Rapid Start Technology (Advanced Menu)

    BIOS Utilities Intel(R) Rapid Start Technology (Advanced Menu)  Enable/disable Intel(R) Rapid Start Technology from this menu. The rapid start hibernation mode can resume power within 5 to 6 seconds and can remember your UEFI Boot computer's state with zero power. When UEFI Boot is en- abled, then the prompts Intel Anti-Theft Technology (Advanced Menu)

  • Page 121: Power On Boot Beep (Advanced Menu)

    BIOS Utilities Power On Boot Beep (Advanced Menu) Use this menu item to enable/disable the beep as the computer starts up. Battery Low Alarm Beep (Advanced Menu) Use this menu item to enable/disable the battery low alarm beep. Advanced Menu 5 - 9...

  • Page 122: Security Menu

    BIOS Utilities Security Menu  Security Menu The changes you make here affect the access to the Setup utility itself, and also access to your machine as it boots up after you turn it on. These settings do not affect your machine or network passwords which will be set in your...

  • Page 123: Set User Password (Security Menu)

    BIOS Utilities Note: To clear existing passwords press Enter and type the existing password, then  press Enter for the new password (without typing any password entry) and Enter again to confirm the password clearance. Password Warning If you set a boot pass- Set User Password (Security Menu) word (Password on boot You can set a password for user mode access to the Aptio Setup Utility.

  • Page 124: Secure Boot Control (Security Menu)

    BIOS Utilities Secure Boot Control (Security Menu) Secure Boot prevents unauthorized operating systems and software from loading during the startup process. Secure Boot Control is available as a menu option if you have enabled UEFI Boot (see “UEFI Boot (Boot Menu)” on page 5 - 17).

  • Page 125: Tpm Configuration (Security Menu)

    BIOS Utilities TPM Configuration (Security Menu) This sub-menu will allow you to enable/disable Trusted Platform Module (TPM) support, and to configure the TPM State. Select TPM Configuration and press En- ter to access the sub-menu. Press Enter to access the Security Device Support menu and select Enable to display the full TPM configuration menu (see “Trusted Plat- form (Security) Module”...

  • Page 126: Tpm State (Security Menu > Security Device Support Enabled)

    BIOS Utilities TPM State (Security Menu > Security Device Support Enabled) Select TPM State, press Enter and select Enabled to change the TPM state to en- abled. You will then need to press F4 to save the changes and restart the computer. Figure 5 - 6 TPM State (Enabled) As the computer restarts press F2 to enter the BIOS again and go to the TPM Con-...

  • Page 127: Pending Tpm Operation (Security Menu > Security Device Support & Tpm State Enabled)

    BIOS Utilities Pending TPM operation (Security Menu > Security Device Support & TPM State Enabled) Select Pending operation, press Enter and select the option you require (if you are initializing TPM you should select Enable Take Ownership). You will then need to press F4 to save the changes and restart the computer.

  • Page 128: Boot Menu

    BIOS Utilities Boot Menu Figure 5 - 8 Boot Menu  BIOS Screens Note that BIOS screens pictured these pages are intend- ed for guidance in set- ting up your system’s BIOS. BIOS versions are sub- ject to constant change and revision, therefore your computer’s actual When you turn the computer on it will look for an operating system (e.g.

  • Page 129: Boot Option Priorities (Boot Menu)

    BIOS Utilities Boot Option Priorities (Boot Menu) Press Enter to access the menu, use the arrow keys to move up and down the menu, and press Enter to select a device from the Boot Option # list (the selected device will be highlighted in white).

  • Page 130: Exit Menu

    BIOS Utilities Exit Menu Figure 5 - 9 Exit Menu Click Save Changes and Reset to save all changes made. Choosing to Discard Changes, or Exit Discarding Changes, will wipe out any changes you have made to the Setup. You can also choose to restore the original Setup defaults that will re- turn the Setup to its original state, and erase any previous changes you have made in a previous session.

  • Page 131: Upgrading The Computer Overview

    Upgrading The Computer Chapter 6: Upgrading The Computer Overview  This chapter contains information on upgrading the computer. Follow the steps out- lined to make the desired upgrades. If you have any trouble or problems you can con- Warranty Warning tact your service representative for further help.

  • Page 132: When Not To Upgrade

    Upgrading The Computer When Not to Upgrade  These procedures involve opening the system’s case, adding and sometimes replac- ing parts. Power Safety Warning You should not perform any of these upgrades if: Before you undertake • Your system is still under warranty or a service contract upgrade proce- •...

  • Page 133: Removing The Battery

    Upgrading The Computer Removing the Battery  If you are confident in undertaking upgrade procedures yourself, for safety reasons Warranty Warning it is best to remove the battery. Turn the computer off, and turn it over. Please check with your Slide the latch in the direction of the arrow.

  • Page 134: Removing The Component Bay Cover

    Upgrading The Computer Removing the Component Bay Cover Turn off the computer, and turn it over and remove the battery (see page Remove screws & from the bottom of the computer. Slide the component bay cover until the cover and case indicators are aligned.

  • Page 135: Replacing The Component Bay Cover

    Upgrading The Computer Replacing the Component Bay Cover Reinsert the component bay cover by placing it on the bottom case assembly, and make sure the case markers line up Apply downward pressure and sliding the cover in the direction of arrow Replace screws &...

  • Page 136: Upgrading The Hard/Solid State Disk Drive

    Upgrading The Computer Upgrading the Hard/Solid State Disk Drive  The hard disk drive (or solid state drive) can be taken out to accommodate other 2.5" HDD System serial (SATA) hard disk/solid state drives with a height of 7mm (h) (see “Storage”...

  • Page 137: Removing The Hard Disk Bay Cover

    Upgrading The Computer Removing the Hard Disk Bay Cover Turn off the computer, and turn it over and remove the battery (see page Remove screws & from the bottom of the computer. Slide the HDD bay cover in the direction of arrow until the cover and case indicators are aligned.

  • Page 138: Replacing The Hdd Bay Cover

    Upgrading The Computer Replacing the HDD Bay Cover Reinsert the HDD bay cover by placing it on the bottom case assembly, and make sure the case markers line up Apply downward pressure with both thumbs at points & and slide the cover in the direction of the arrows as illustrated.
  • Page 139 Upgrading The Computer Removing the HDD Remove the HDD bay cover (see page Grip the tab and slide the HDD assembly in the direction of arrow Remove the HDD assembly Remove screws & and the cover Replace the HDD assembly by using a finger to push it in at point in the direction of arrow Replace the component bay cover and screws.
  • Page 140 Upgrading The Computer Removing the SSD From the Component Bay Remove the component bay cover (see page The SSD slot is at point on the mainboard. Remove screw The SSD will pop-up and you can then remove it Replace the SSD by angling it as illustrated, and then fit the connector firmly into the slot.

  • Page 141: Upgrading The System Memory (Ram)

    Upgrading The Computer Upgrading the System Memory (RAM) The computer has two memory sockets for 204 pin Small Outline Dual In-line (SO- DIMM) DDR3L type memory modules (see “Memory” on page D - 2 for details of supported module types). Turn off the computer, and turn it over and remove the battery (see page and component bay cover (see page The memory sockets will be visible at point...
  • Page 142 Upgrading The Computer Gently pull the two release latches on the sides of the memory socket in the direction indicated by the arrows ( & Figure 6 - Figure 6 - 9 RAM Module Release Latches  Contact Warning Be careful not to touch The RAM module will pop-up, and you can remove it.
  • Page 143 Upgrading The Computer Pull the latches to release the second module if necessary. Insert a new module holding it at about a 30° angle and fit the connectors firmly into the memory slot. The module’s pin alignment will allow it to only fit one way. Make sure the module is seated as far into the slot as it will go.
  • Page 144 Upgrading The Computer 6 - 14...

  • Page 145: Modules & Options Overview

    Modules & Options Chapter 7: Modules & Options  Overview Wireless Device Operation Aboard This chapter contains information on the following modules, which may come with Aircraft your computer, depending on the configuration purchased. If you are unsure please The use of any portable contact your service representative.

  • Page 146: Pc Camera Module

    Modules & Options PC Camera Module When the PC Camera application is run the LED indicator to the left of the camera will be illuminated in (see Figure on page 1 - 6). Note that you need to use the Camera app in Windows 8 to take pictures and capture video. Use the Fn + F10 key combination (see “Function/Hot Key Indicators”...

  • Page 147: Pc Camera Audio Setup

    Modules & Options PC Camera Audio Setup If you want to capture video & audio with your camera, it is necessary to setup the audio recording options in Windows. Go to the Control Panel. Click Sound (Hardware and Sound) and click Recording (tab). Right-click hold and release Microphone (Realtek High Definition Audio) and make sure the item is not disabled.

  • Page 148: Camera App

    Modules & Options Camera App Make sure the camera is powered on (use the Fn + F10 key combination to toggle power to the camera module). Click the Camera app icon in the Start screen to run the Camera app The camera interface is a translucent app bar with three buttons.
  • Page 149 Modules & Options You can also click on More to adjust Brightness, Contrast and Flicker (if you  find that the video screen in the camera program is flickering, you can try to adjust the setting here). Eliminating Screen Flicker If you find that the video screen in the camera pro- gram is flickering, you can...

  • Page 150: Taking Pictures/Capturing Video

    Modules & Options Taking Pictures/Capturing Video Make sure the camera is powered on (use the Fn + F10 key combination to toggle power to the camera module). Click the Camera app icon in the Start screen to run the Camera app Click to select the timer if you require a countdown before capture.
  • Page 151 Modules & Options A scroll arrow will appear on the left side of the screen after any pictures/videos have been captured. Click the arrows (on either side of the screen) to browse through the captured photos/video, and back to the Camera app. 10.
  • Page 152 Modules & Options Reducing Video File Size Note that capturing high resolution video files requires a substantial amount of disk space for each file. After recording video, check the video file size (right-click the file and select Properties) and the remaining free space on your hard disk (go to My Computer, right-click the hard disk, and select Properties).

  • Page 153: Wireless Lan Module

    Modules & Options Wireless LAN Module  If you have included an Intel® or 3rd Party WLAN module in your purchase option Wireless Device make sure that the module is on (i.e. the system is not in Airplane Mode) before in- Operation Aboard stalling the driver.

  • Page 154: 3Rd Party 802.11B/G/N Driver Installation

    Modules & Options 3rd Party 802.11b/g/n Driver Installation 1. Make sure the system is not in Airplane Mode, and then insert the Device Drivers & Utilities + User’s Manual disc into an attached DVD drive . 2. Click Option Drivers (button). 3.

  • Page 155: Wlan Configuration In Windows 8

    Modules & Options WLAN Configuration in Windows 8 You can configure a wireless connection using one of the following options, how- ever make sure the Wireless LAN module is turned on (and not in Airplane Mode) before configuration begins. Charms Bar Go to the Charms Bar.
  • Page 156 Modules & Options Double-click an access point to connect to it (or click it and click Connect). Enter a network security key (password) if required, and click Next. You can choose to share or connect to devices or not. When you are connected to the network access point it will display the Connected icon Select any connected network and click Disconnect to disconnect from a...
  • Page 157 Modules & Options 11. You need to either use Airplane Mode, or to turn the WLAN module off aboard aircraft. Figure 7 - 10 PC Settings (Wireless) Wireless LAN Module 7 - 13...
  • Page 158 Modules & Options Desktop Mode Switch to the Windows Desktop (click the app or use the Windows logo key D key combination). Click the wireless icon in the notification area of the taskbar. A list of available access points will appear. Double-click an access point to connect to it (or click it and click Connect).
  • Page 159 Modules & Options Control Panel If you are in Category View do the following (see over for Icon View): Open the Control Panel. Click the Network and Internet control panel. Click Connect to a network. Figure 7 - 12 Network and Internet Control Panel A list of available access points will appear.
  • Page 160 Modules & Options If you are in Icon View do the following: Open the Control Panel. Click Network and Sharing Center. Click Change Adapter Settings. Double-click Wi-Fi. Figure 7 - 13 Network and Sharing Center Control Panel A list of available access points will appear. Double-click an access point to connect to it (or click it and click Connect).

  • Page 161: Bluetooth & Wlan Combo Module

    Modules & Options Bluetooth & WLAN Combo Module If your purchase option includes the Combination Wireless LAN & Bluetooth module (either Intel® or 3rd Party) then install the driver as instructed overleaf. Make sure that the module is on (i.e. the system is not in Airplane Mode) before in- stalling the driver.

  • Page 162: 3Rd Party Bluetooth (V4.0) Combo Driver Installation

    Modules & Options 3rd Party Bluetooth (V4.0) Combo Driver Installation  1. Make sure the system is not in Airplane Mode, and then insert the Device Drivers & Utilities + User’s Manual disc into an attached DVD drive . High Speed Bluetooth Data Transfer 2.

  • Page 163: Bluetooth Configuration In Windows 8

    Modules & Options Bluetooth Configuration in Windows 8 You can configure a Bluetooth connection as below, however make sure the Blue- tooth module is on (i.e. not in Airplane Mode) before configuration begins. Desktop Mode Switch to the Windows Desktop (click the App or use the Windows logo key D key combination).
  • Page 164 Modules & Options Click Add a Device. Double-click the device you want to pair with the computer. Figure 7 - 15 PC Settings (Devices) - Add A Device) On first connection the computer will provide you with a pairing code to be entered onto the device.
  • Page 165 Modules & Options You need to either use Airplane Mode, or to turn the Bluetooth module off aboard aircraft. Figure 7 - 17 PC Settings (Wireless) Bluetooth & WLAN Combo Module 7 - 21...
  • Page 166 Modules & Options To Make your Computer Discoverable to Bluetooth Devices Switch to the Windows Desktop (click the app or use the Windows logo key D key combination). Click the notification area of the taskbar, click the Bluetooth icon and click Open Settings.

  • Page 167: Trusted Platform (Security) Module

    Modules & Options Trusted Platform (Security) Module If your purchase option includes the TPM security chip, this allows you to create and manage digital certificates for user and platform authentication. This type of se- curity is usually administered within large enterprises and organizations, and there- fore requires implementation by a system administrator before users can access security features.

  • Page 168: Enabling & Activating Tpm

    Modules & Options Enabling & Activating TPM Restart the computer. Enter the Aptio Setup Utility pressing F2 during the POST/startup. Use the arrow keys to select the Security menu. Select TPM Configuration and press Enter to access the sub-menu. Press Enter to access the Security Device Support menu and select Enable to display the full TPM configuration menu.
  • Page 169 Modules & Options Select Pending operation, press Enter and select the option you require (if you are initializing TPM you should select Enable Take Ownership). You will then need to press F4 to save the changes and restart the computer. Figure 7 - 20 Pending operation (Enable Take...

  • Page 170: Trusted Platform Module (Tpm) Driver Installation

    Modules & Options Trusted Platform Module (TPM) Driver Installation 1. Make sure you have enabled and activated the TPM in the BIOS before installing the driver. 2. Insert the Device Drivers & Utilities + User’s Manual disc into an attached DVD drive .

  • Page 171: Initializing Tpm

    Modules & Options Initializing TPM Switch to the Desktop app and click the TPM icon right-click the icon in the notification area of the taskbar, and select Security Platform Initialization (or click the Security Platform State taskbar bubble). Click User Settings (tab) and click Yes, or right-click the icon in the notification area of the taskbar, and select Security Platform Initialization (or click the Security Platform State taskbar bubble).
  • Page 172 Modules & Options Choose the Security Platform Features you want to use by clicking the  appropriate tickbox. Enter a Basic User Password (and re-type to confirm it) and click Next. Help Right-click the icon the notification area of the taskbar to bring up the menu to select Help or How to use the Security Platform Fea-...

  • Page 173: Infineon Security Platform Settings Tool

    Modules & Options Infineon Security Platform Settings Tool  The Infineon Security Platform Settings Tool allows you to manage and check the TPM state, manage your password information, and to backup and restore the TPM Menus data. As TPM is usually administered within large enterprises and organizations, Note that not all the your system administrator will need to assist you in managing the information here.
  • Page 174 Modules & Options User Settings This page allows the settings to be configured for the currently logged in Infineon Security Platform user including the ability to change the password, configure se- cure e-mail, file and folder encryption and Enhanced Authentication. You can also import or delete certificates protected by the security platform.
  • Page 175 Modules & Options Backup Here you can configure backup and restore operations. Backup files contain the computer identification and user identification information which is used to match the machine name and user name with the current machine and user during restora- tion.
  • Page 176 Modules & Options Migration The Migration tab is used to help securely transfer keys and certificates from one platform to another. Figure 7 - 26 Infineon Security Platform Settings Tool (Migration) 7 - 32 Trusted Platform (Security) Module...
  • Page 177 Modules & Options Password Reset Use Password Reset to reset basic user passwords when required. Figure 7 - 27 Infineon Security Platform Settings Tool (Password Reset) Trusted Platform (Security) Module 7 - 33...
  • Page 178 Modules & Options BitLocker BitLocker Drive Encryption can be used in conjunction with the TPM to encrypt data on the disk and is done via the Microsoft BitLocker Control Panel Applet. Click Configure and select a drive to be encrypted and then follow the Wizard to begin the encryption process.
  • Page 179 Modules & Options Access the Microsoft BitLocker Drive Encryption control panel applet from the Windows control panel (System and Security). Figure 7 - 29 BitLocker Drive Encryption Trusted Platform (Security) Module 7 - 35...
  • Page 180 Modules & Options Advanced Configure all the Security Platform owner and policy settings from the Advanced tab. The settings that can be changed are for the local computer only. Figure 7 - 30 Infineon Security Platform Settings Tool (Advanced) 7 - 36 Trusted Platform (Security) Module...

  • Page 181: Intel® Rapid Storage Technology

    Modules & Options Intel Rapid Storage Technology ® Install the Intel® Rapid Storage Technology to support your AHCI mode SATA drive. IRST Driver Installation 1. Insert the Device Drivers & Utilities + User’s Manual disc into an attached DVD drive . 2.

  • Page 182: Intel® Smart Response Technology

    Modules & Options Intel® Smart Response Technology  Intel® Smart Response Technology is an Intel® Rapid Storage Technology Intel® Smart (RST) caching feature that accelerates computer system performance by using the Response SSD as cache memory between the hard disk drive and system memory. Technology System Requirements to support Intel®...

  • Page 183: Enabling Intel Smart Response Technology

    Modules & Options Enabling Intel Smart Response Technology Run the Intel® Rapid Storage Technology application. Click Enable acceleration under Performance > Smart Response Technology (note that you will at least 5MB of free unpartitioned and unallocated space on the SSD otherwise the Smart Response Technology item will not appear).
  • Page 184 Modules & Options Select the HDD (or RAID volume) to be accelerated (it is highly recommended that you accelerate the system volume or system disk for maximum performance). Select the acceleration mode, and then click OK (Enhanced mode is selected by default).
  • Page 185 Modules & Options The page will refresh and report the new configuration in under Performance > Smart Response Technology. Figure 7 - 34 Intel® Rapid Storage Technology - Performance (Smart Response Technology) Intel® Rapid Storage Technology 7 - 41...

  • Page 186: Intel® Rapid Start Technology

    Modules & Options Intel Rapid Start Technology ® Intel(R) Rapid Start Technology can resume power from Hibernation within 5 to 6 seconds and can remember your computer's previous state with zero power. System Requirements to support Intel® Rapid Start Technology: •...

  • Page 187: Intel® Rapid Start Technology Configuration

    Modules & Options Intel® Rapid Start Technology Configuration Enable Intel(R) Rapid Start Technology from the BIOS (see “Intel(R) Rapid Start Technology (Advanced Menu)” on page 5 - Go the Windows control panel and double-click Administrative Tools (System and Security)> Computer Management > Storage > Disk Management Right-click the SSD and select Shrink Volume from the menu.
  • Page 188 Modules & Options Enter the figure, which should be equal to amount of system memory (RAM) in your computer, in “Enter the amount of space to shrink in MB”. Figure 7 - 36 Shrink Volume Size Click Shrink (any unallocated file space may be formatted for storage use). ...
  • Page 189 Modules & Options Run the Desktop app and right-click the lower left hot corner (or use the Windows Logo Key + X key combination) and select Command Prompt (Admin). Figure 7 - 37 Search for CMD Prompt Type “DISKPART”. At the DISKPART command type “list disk”. Figure 7 - 38 Diskpart - List Disk Intel®...
  • Page 190 Modules & Options Type “select disk #” (# is disk number where you want to create the store partition, so refer to the results obtained from "list disk" for exact disk number). 10. The message “Disk # is now the selected disk.” will appear. Figure 7 - 39 Diskpart - Select Disk #...
  • Page 191 Modules & Options 13. Type “detail disk”. Figure 7 - 41 Diskpart - Detail Disk 14. Type “select Volume #” (# is volume of your storage partition so refer to results obtained from "detail disk" for the exact volume number). 15.
  • Page 192 Modules & Options 16. Type the following, depending on the format of the SSD. • For MBR formatted SSDs: “set id=84 override” (the id must be set to 84). • For GPT formatted SSDs: “set id=D3BFE2DE-3DAF-11DF-BA40-E3A556D89593”. Figure 7 - 43 Diskpart - Set id= 17.

  • Page 193: Intel® Rapid Start Technology Driver Installation

    Modules & Options 19. Go the Windows control panel and double-click Administrative Tools (System and Security)> Computer Management > Storage > Disk Management. 20. The disk partition should read Healthy Hibernation Partition. Figure 7 - 44 Computer Management (Healthy Hibernation Healthy (Hibernation Partition) Partition) 21.

  • Page 194: Intel® Smart Connect Technology

    Modules & Options Intel® Smart Connect Technology  Intel® Smart Connect Technology periodically, and briefly, wakes the computer Intel® Smart Connect from Sleep mode in order to update information for certain applications (e.g. to get Technology System mail from Microsoft Outlook) as required. These updates can therefore be made Requirements without having to turn the computer on, and applications will be up to date when the Note that in order to sup-...

  • Page 195: Intel® Smart Connect Technology Configuration

    Modules & Options Intel® Smart Connect Technology Configuration  Access the Intel(R) Smart Connect Technology application from the Start menu. Click Basic (tab) and adjust the slider to set the update frequency (note that the Wireless Device slider balances between “More Frequent Updates” and “More Battery Life”). Operation Aboard Note the sidebar warning about the use of Intel(R) Smart Connect Technology Aircraft...
  • Page 196 Modules & Options Click Advanced (tab) to access the Extended Power Savings settings. Extended Power Savings allows you to set a time period during which the computer will update less often (e.g. at night while you are asleep or whenever you are at work).
  • Page 197 Modules & Options Click the Help tab and click Topics to access the main Help menu.  Intel WLAN Modules If your purchase option includes an Intel WLAN module, (with Intel’s PROSet Wireless Con- nection Utility stalled), Intel® Smart Connect Technology will search for WiFi net- works around you that...
  • Page 198 Modules & Options Disable Intel Rapid Start Technology by clicking the Off button, and clicking Save. 10. Click Timer to make sure it is on, and adjust the slider to select a time to delay entering Rapid Start from running, and click Save. Figure 7 - 48 ®...

  • Page 199: Intel® Wireless Display Application

    Modules & Options Intel Wireless Display Application ®  The Intel ® Wireless Display Application (requires Intel® Centrino WLAN/ Compatible Combo module), in conjunction with a compatible video adapter (purchased sep- Adapters arately), allows you to display the contents of the notebook display on another dis- play (e.g.

  • Page 200: Intel® Widi Application Installation

    Modules & Options Intel WiDi Application Installation ® 1. Insert the Device Drivers & Utilities + User’s Manual disc into the DVD drive. 2. Click Option Drivers (button). 3. Click 8.Install Intel WiDi AP > Yes. 4. Click Next. 5. Click the button to accept the license and click Next. 6.

  • Page 201: Intel® Widi Application Configuration

    Modules & Options Intel WiDi Application Configuration ® Run Intel(R) Wireless Display from the Start screen. Click I agree to the terms of this license (button). The application will scan for any connected compatible adapters (or you can click the Scan for available adapters button to enable Intel My WiFi Technology). Figure 7 - 49 ®...
  • Page 202 Modules & Options Click to select and detected adapters, and click Connect. The system will then prompt you to enter the 4-digit security code which will be displayed on the external TV Screen (or press the connect button on the wireless speaker adapter).

  • Page 203: Intel® Wireless Display Application

    Modules & Options You will then be prompted to enter a name for the video adapter and click  Continue. Click Finished to complete the setup. Test Audio Adapter To verify a successful audio connection (for In- tel® Wireless Music), select the “Test your audio connection”...

  • Page 204: 3G Module

    Modules & Options 3G Module If you have included an optional UMTS/HSPDA+ based 3G Module (Universal Mobile Telecommunications System or High Speed Packet Access) module (see “Communication” on page D - 3 for specification details) in your purchase option, you do not require a driver/application installation for Windows 8. Follow the in- structions overleaf to install the USIM card (which will be provided by your service provider), and then use the Charms Bar Wireless icon to access the 3G network in the same manner as the WLAN (see page...
  • Page 205 Modules & Options 3G Module USIM Card Installation  If you have included an optional 3G module, follow the instructions below to install Power Safety the USIM card (which will be provided by your service provider). Warning Turn the computer off, remove the AC/DC adapter and turn it over. Slide the latch in the direction of the arrow.

  • Page 206: 3G Configuration In Windows 8

    Modules & Options 3G Configuration in Windows 8 You can configure a 3G connection as below, however make sure the system is not in Airplane Mode before configuration begins. Charms Bar Go to the Charms Bar. Select Settings and then click the WiFi icon (it should read Available under the icon and Airplane mode should be Off).
  • Page 207 Modules & Options Any 3G service provider (connection information is usually stored on the USIM card) will appear under Mobile Broadband. Double-click any connection icon under Mobile Broadband (or click and click Connect). Figure 7 - 54 Mobile Broadband (Connect) The system will connect to your network.
  • Page 208 Modules & Options You can then access the internet, download e-mail etc. as per any internet  connection. To disconnect you can select the connection and click Disconnect Wireless Device 10. You need to either use Airplane Mode, or to turn the Mobile Broadband module Operation Aboard off aboard aircraft.

  • Page 209: Em820W 3G Module Pin Code & Power-Saving

    Modules & Options EM820W 3G Module PIN Code & Power-Saving Note that there may be some issues when a PIN Code is set for the EM820W 3G module (if you are unsure of your module version contact your distributor/supplier) in Windows 8, Mobile Broadband has been turned off, and the system has resumed from a power-saving state.
  • Page 210 Modules & Options Click Security (tab) and click Disable PIN. Enter the PIN number and click Disable PIN and click OK to confirm. It is recommended that you do not Enable a PIN for the EM820W 3G module. Figure 7 - 58 Disable PIN 7 - 66 EM820W 3G Module PIN Code &...

  • Page 211: Troubleshooting Overview

    Troubleshooting Chapter 8: Troubleshooting Overview Should you have any problems with your computer, before consulting your service representative, you may want to try to solve the problem yourself. This chapter lists some common problems and their possible solutions. This can’t anticipate every problem, but you should check here before you panic. If you don’t find the answer in these pages, make sure you have followed the instructions carefully and observed the safety precautions in the preface.

  • Page 212: Basic Hints And Tips

    Troubleshooting Basic Hints and Tips Many of the following may seem obvious but they are often the solution to a problem when your computer ap- pears not to be working. • Power - Is the computer actually plugged into a working electrical outlet? If plugged into a power strip, make sure it is actually working.

  • Page 213: Backup And General Maintenance

    Troubleshooting Backup and General Maintenance • Always backup your important data, and keep copies of your OS and programs safe, but close to hand. Don’t forget to note the serial numbers if you are storing them out of their original cases, e.g. in a CD wal- let.

  • Page 214: Viruses

    Troubleshooting Viruses • Install an Anti-Virus program and keep the definitions file (the file which tells your program which viruses to look for) up to date. New computer viruses are discovered daily, and some of them may seriously harm your computer and cause you to lose data. Anti-Virus programs are commercially available and the defini- tions file updates are usually downloadable directly from the internet.

  • Page 215: Upgrading And Adding New Hardware/Software

    Troubleshooting Upgrading and Adding New Hardware/Software • Do not be tempted to make changes to your Windows Registry unless you are very sure of what you are doing, otherwise you will risk severely damaging your system. • Don’t open your computer or undertake any repair or upgrade work if you are not comfortable with what you are doing.
  • Page 216 Troubleshooting • Thoroughly check any recent changes you made to your system as these changes may affect one or more system components, or software programs. If possible, go back and undo the change you just made and see if the problem still occurs. •...

  • Page 217: Problems And Possible Solutions

    Troubleshooting Problems and Possible Solutions Problem Possible Cause - Solution You turned on the power but it doesn’t Battery missing / incorrectly installed. Check the battery bay, make sure the work. battery is present and seated properly (the design of the battery only allows it to go in one way).
  • Page 218 Troubleshooting Problem Possible Cause - Solution The computer feels too hot. Make sure the computer is properly ventilated and the Vent/Fan intakes are not blocked. If this doesn’t cool it down, put the system into Hibernate mode or turn it off for an hour. Make sure the computer isn’t sitting on a thermal surface (see “Overheating”...
  • Page 219 Troubleshooting Problem Possible Cause - Solution You forget the boot password. If you forget the password, you may have to discharge the battery of the CMOS. Contact your service representative for help.  Password Warning If you choose to set a boot password, NEVER forget your password. The consequences of this could be serious. If you cannot remember your boot password you must contact your vendor and you may lose all of the information on your hard disk.
  • Page 220 Troubleshooting Problem Possible Cause - Solution  Other Keyboards If your keyboard is damaged or you just want to make a change, you can use any standard USB keyboard. The system will detect and enable it automatically. However special functions/hot keys unique to the system’s regular keyboard may not work.
  • Page 221 Troubleshooting Problem Possible Cause - Solution The Wireless LAN/Bluetooth modules The driver(s) for the module(s) have not been installed. Make sure you have cannot be configured. installed the driver for the appropriate module (see the instructions for the appropriate module in Chapter 7 "Modules &...

  • Page 222: Resolving The "Insert A Sim" Issue With The 3G Module (Windows 8)

    Troubleshooting Resolving the “Insert a SIM” issue with the 3G Module (Windows 8) If a PIN was set for the EM820W 3G module, you have then switched Mobile broadband off (or put the system in Airplane Mode) under Wireless in PC Settings, and the system has just resumed from a power-saving state the following error may occur.
  • Page 223 Troubleshooting Go to the Charms Bar. Select Settings and you will then note that the WiFi icon will read Unavailable. Standard procedure would be to click the connection and enter the PIN number to unlock the connection. In this instance you will note that the Mobile broadband connection will read Insert a SIM. Figure 8 - 2 - Mobile Broadband (Insert a SIM) In this case you will need to restart the computer.
  • Page 224 Troubleshooting 8 - 14...

  • Page 225: Interface (Ports & Jacks) Overview

    Interface (Ports & Jacks) Appendix A: Interface (Ports & Jacks) Overview The following chapter will give a quick description of the interface (ports & jacks) which allow your computer to communicate with external devices, connect to the internet etc. Interface (Ports & Jacks) A - 1...

  • Page 226: Notebook Ports And Jacks

    Interface (Ports & Jacks) Notebook Ports and Jacks Item Description Card Reader Port The card reader allows you to use some of the latest digital storage cards. Push the card into the slot and it will appear as a removable device. DC-In Jack Plug the supplied AC/DC adapter into this jack to power your computer.
  • Page 227 Interface (Ports & Jacks) Item Description Security Lock Slot To prevent possible theft, a Kensington-type lock can be attached to this slot. Locks can be purchased at any computer store. USB 3.0 Ports These USB 3.0 compatible ports (backwards-compatible with USB 2.0 however USB 3.0 will transfer data much faster than USB 2.0) are for low-speed peripherals such as keyboards, mice or scanners, and for high-speed peripherals such as external HDDs, digital video cameras or high-speed scanners etc.
  • Page 228 Interface (Ports & Jacks) A - 4...

  • Page 229: Control Center Overview

    Control Center Appendix B: Control Center Overview The following chapter will give a quick description of the functions of the Control Center. The Control Center gives quick access to frequently used controls, power management features and enables you to quickly turn mod- ules on/off.
  • Page 230 Control Center Power Modes You can set a Power Mode by clicking the appropriate icon at the top of the Control Center. Each power mode will affect screen brightness, Touchpad and PC camera power etc. You can click a Control Center icon to set an overall power mode and then click individual icons in the Control Center to power on/off the Touchpad and PC camera.
  • Page 231 Control Center Power Status The Power Status icon will show whether you are currently powered by the battery, or by the AC/DC adapter plugged in to a working power outlet. The power status bar will show the current battery charge state. Brightness The Brightness icon will show the current screen brightness level.
  • Page 232 Control Center Sleep Click the Sleep button to bring up the Hibernate or Sleep buttons, and click either button to have the computer enter the appropriate power-saving mode (see “Power-Saving States” on page 3 - Display Switch Click the Display Switch button to access the menu (or use the + P key combination) and select the appro- priate attached display mode.

  • Page 233: Video Driver Controls

    Video Driver Controls Appendix C: Video Driver Controls  Video Card Options The basic settings for configuring the LCD are outlined in “Video Features” on page 1 - 31. Make sure you install the drivers in the order indicated in Table 4 - 1, Note that card types, on page 4 -...

  • Page 234: Intel® Hd Graphics Control Panel

    Video Driver Controls Intel HD Graphics Control Panel ® Advanced video configuration options are provided by the Intel HD Control Pan- ® el. To access the control panel see below and overleaf: Click the Intel® HD Graphics Control Panel icon in the Start screen. Figure C - 1 Start Screen Intel ®...
  • Page 235 Video Driver Controls Right-click the Desktop and select Graphics Properties from the menu. Click Advanced settings in the Screen Resolution control panel in Windows. Click the Intel(R) HD Graphics Control Panel tab and click Graphics Properties (button). Double-click the Intel(R) HD Graphics control panel in the Windows Control Panel.
  • Page 236 Video Driver Controls You may make changes to any of the graphics properties by clicking the appropriate menu panel and adjusting the settings on the right. Figure C - 3 Intel ® HD Graphics Control Panel C - 4 Intel® HD Graphics Control Panel...
  • Page 237 Video Driver Controls Sub-Menus Some of the menu panels will also have sub-menus (in the top left corner of the menu alongside the icon ) to display further configuration options. Figure C - 4 Intel ® HD Graphics Control Panel Sub-Menus Intel®...
  • Page 238 Video Driver Controls Display  Click either Display Settings or Color to make display adjustments, including con- figuration for any attached external displays. Multiple Display At least one other dis- play must be attached in order to view multiple display selection tions.
  • Page 239 Video Driver Controls Click the Display menu at the top of the screen to display the sub-menus. The Mul-  tiple Displays menu allows you to configure the display mode of any attached dis- plays (see “Attaching Other Displays” on page C - 16).
  • Page 240 Video Driver Controls The Audio sub-menu allows you to configure the capability mode of any attached displays if applicable (i.e. the attached display supports audio). Enable Audio Without Video to keep audio on when the display blanks out for power saving pur- poses.
  • Page 241 Video Driver Controls This menu allows you to choose how 3D images are displayed. Quality displays the most detail, Balanced provides better computer performance with good quality and Custom allows you to configure the Anisotropic Filtering, Vertical Sync and Anti-Aliasing features to your preferences. Click Apply to save changes. Figure C - 8 Intel ®...
  • Page 242 Video Driver Controls Options Options allows you to Customize Hot Keys (for opening the application, rotating the display, scaling etc.,) to your preferences. Click Apply to save changes. Figure C - 9 Intel ® HD Graphics Control Panel Options C - 10 Intel® HD Graphics Control Panel...
  • Page 243 Video Driver Controls Click the Options menu at the top of the screen to display the sub-menus. The In-  formation Center provides details on System Information, the Built-In Display and any attached displays. Preferences Go to the Preferences sub-menu in Options to configure the preferenc- es for the Intel®...
  • Page 244 Video Driver Controls Video The Video Profiles menu allows you to brighten or darken movies, or to switch to vivid colors. Click Basic or Advanced to adjust the video settings based on the Ap- plication Settings or Driver Settings. The Preview image will display a sample im- age using the current settings.
  • Page 245 Video Driver Controls Click the Video menu at the top of the screen to display the sub-menus.The Image Enhancement menu allows you to adjust the Sharpness, Skin Tone Enhance- ment, Noise Reduction etc.Click Apply to save changes. Figure C - 12 Intel ®...
  • Page 246 Video Driver Controls The Image Scaling and Gamut Mapping menus allow you to adjust these items. Figure C - 13 Intel ® HD Graphics Control Panel Video Image Scaling & Gamut Mapping C - 14 Intel® HD Graphics Control Panel...

  • Page 247: Display Devices & Options

    Video Driver Controls Display Devices & Options Note that you can use external displays connected to the HDMI-Out port and/or ex- ternal mini display port. See your display device manual to see which formats are supported.  Attaching Displays When you first attach an external display you may find that the desktop does not occupy the full screen area.

  • Page 248: Attaching Other Displays

    Video Driver Controls Attaching Other Displays  To Clone Displays: Multiple Display Attach your external display to the HDMI-Out port/mini display port, and turn it on. Go to the Intel(R) HD Graphics Control Panel control panel and click Display > At least one other dis- Multiple Displays (sub-menu).
  • Page 249 Video Driver Controls To Enable Extended Mode:  Attach your external display to the HDMI-Out port/mini display port, and turn it on. Go to the Intel(R) HD Graphics Control Panel control panel and click Display > Display Settings Multiple Displays (sub-menu). Extended Desktop Click Extended from the Select Multiple Display Mode menu.

  • Page 250: Attaching Other Displays - Devices (Charms Bar

    Video Driver Controls Attaching Other Displays - Devices (Charms Bar)  You can configure attached displays from Devices (in the Windows 8 Charms Bar) Windows Logo Key + P Key Attach your external display to the HDMI-Out port/mini display port, and turn it on. Combination Go the Charms Bar and select Devices.

  • Page 251: Configuring An External Display In Windows

    Video Driver Controls Configuring an External Display In Windows Attach your external display to the HDMI-Out port/mini display port, and turn it on. Go to the Screen resolution control panel in the Desktop app. Click the Detect button. The computer will then detect any attached displays. Figure C - 17 Screen Resolution Multiple Displays...
  • Page 252 Video Driver Controls You can configure the displays from the Multiple Displays menu. Figure C - 18 Screen Resolution Multiple Display Options • Duplicate these displays - Shows an exact copy of the main display desktop on the other display(s) •...

  • Page 253: Hdmi Audio Configuration

    Video Driver Controls HDMI Audio Configuration  HDMI (High-Definition Multimedia Interface) carries both audio and video signals. Volume Adjustment In some cases it will be necessary to go to the Sound control panel and manually The sound volume level configure the HDMI audio output as per the instructions below. can be set using the vol- ume control in the Set- Go to the Control Panel.
  • Page 254 Video Driver Controls Adjust the HDMI settings from the control panel tabs. Click/tap OK to close the Sound control panel. Figure C - 20 HDMI Device Properties C - 22 HDMI Audio Configuration...
  • Page 255 Video Driver Controls HDMI Notes  • Connect a device with HDMI support to the HDMI-Out port BEFORE attempt- ing to play audio/video sources through the device. Other Applications • To play audio sources through your external display’s (TV or LCD) speakers If you are using a third you will need to go to the audio configuration control panel on the display and party...
  • Page 256 Video Driver Controls C - 24...

  • Page 257: Specifications

    Specifications Appendix D: Specifications  Latest Specification Information The specifications listed in this Appendix are correct at the time of going to press. Certain items (particularly processor types/ speeds and CD/DVD device types) may be changed, updated or delayed due to the manufacturer's release schedule. Check with your distributor/supplier for details.

  • Page 258: Processors

    Specifications Processors Video Adapter Keyboard & Pointing Device Intel® Core™ i7-4500U processor Intel® HD Graphics Built-in Touchpad with Multi-Gesture (22nm, 1.80GHz, DDR3L-1600MHz, 4MB (GPU is Dependent on Processor): Functionality L3 cache, TDP: 15W) Dynamic Frequency Isolated A4 Size Keyboard Intel Dynamic Video Memory Technology Intel®...

  • Page 259: Mini Card Slots

    Specifications Mini Card Slots Intel® Dual Band Wireless-N 7260 (2*2 Power Management 802.11 a/g/n) Half Mini-Card PCIe WLAN Slot 1 for Half Size Mini-Card WLAN Supports Wake on LAN Module (Factory Option) Combo Module with PCIe & USB Supports Wake on USB Interfaces Intel®...

  • Page 260: Features

    Specifications Features Painted Style (For some Model designs in this series) Intel® Rapid Start Technology Intel® Smart Response Technology (processor dependent) Intel® Anti-Theft Technology Intel® Identity Protection Technology Intel® Smart Connect Technology Operating System Windows® 8 (64-bit) Environmental Spec Temperature °...

Table of Contents
