Mainboard Overview - Top (Connectors)

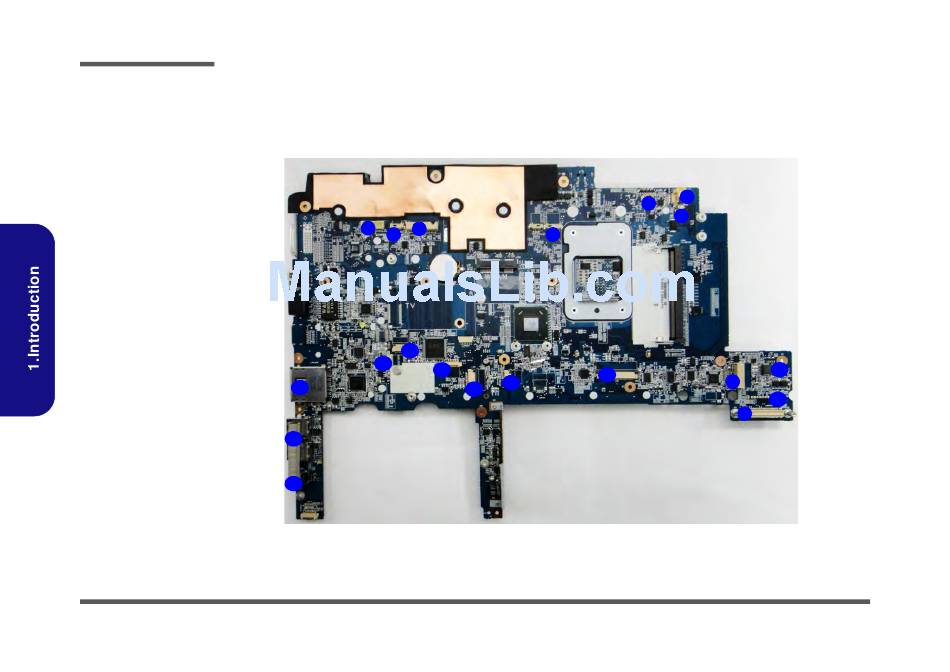

Figure 9
Mainboard Top
Connectors
1. Touch Sensor
Connector
2. MIC Connector
3. LCD Cable Connector
4. LED Cable Connector
5. Subwoofer Connector
6. CCD Cable Connector
7. Power Button
Connector
8. Audio Cable
Connector
9. New card Connector
10. Keyboard Cable
Connector
11. Fingerprint Connector
12. Touch Pad Connector
13. LED Cable Connector
14. Game-Key Cable
Connector
15. Bluetooth Module
Connector
16. Mini-IEEE 1394 Port
17. USB 3.0 Ports
18. Multi-in-1 Card Reader
