Mainboard Overview - Top (Connectors)

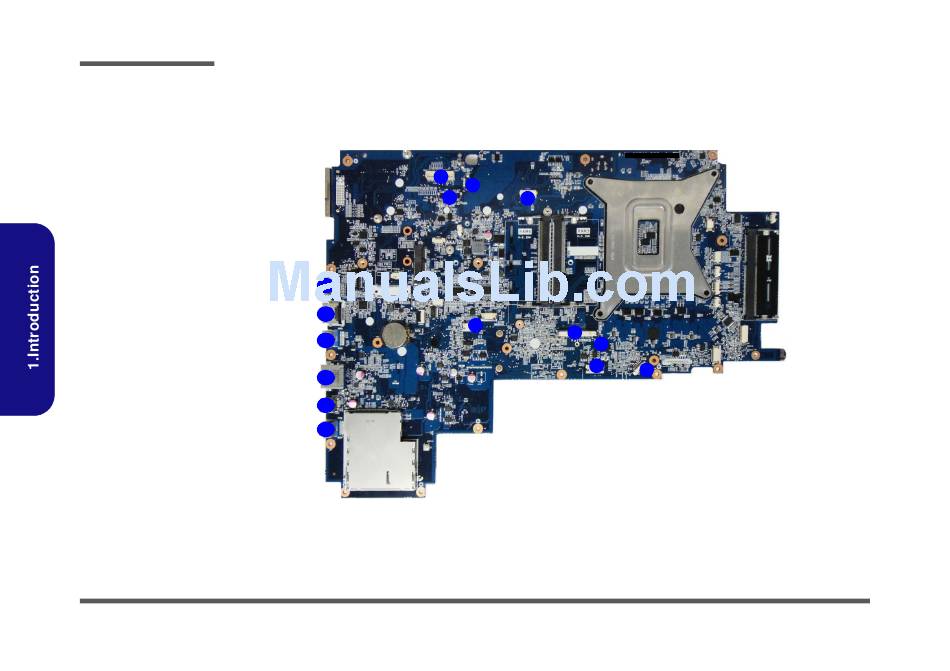

Figure 9
Mainboard Top
Connectors
1. LCD Cable Connector
2. LCD 3D Cable
Connector
3. 3D Emitter Cable
Connector
4. JMIC
5. JSpeaker
6. Keyboard Cable
Connector
7. Keyboard LED Cable
Connector
8. HDD Connector
9. LED Connector
10. HDMI-Out Port
11. Display Port
12. USB 3.0 Ports
13. eSATA/Powered USB
3.0 Port
14. Mini-IEEE 1394 Port
1 - 10 Mainboard Overview - Top (Connectors)
