Introduction

Mainboard Overview - Bottom (Key Parts)

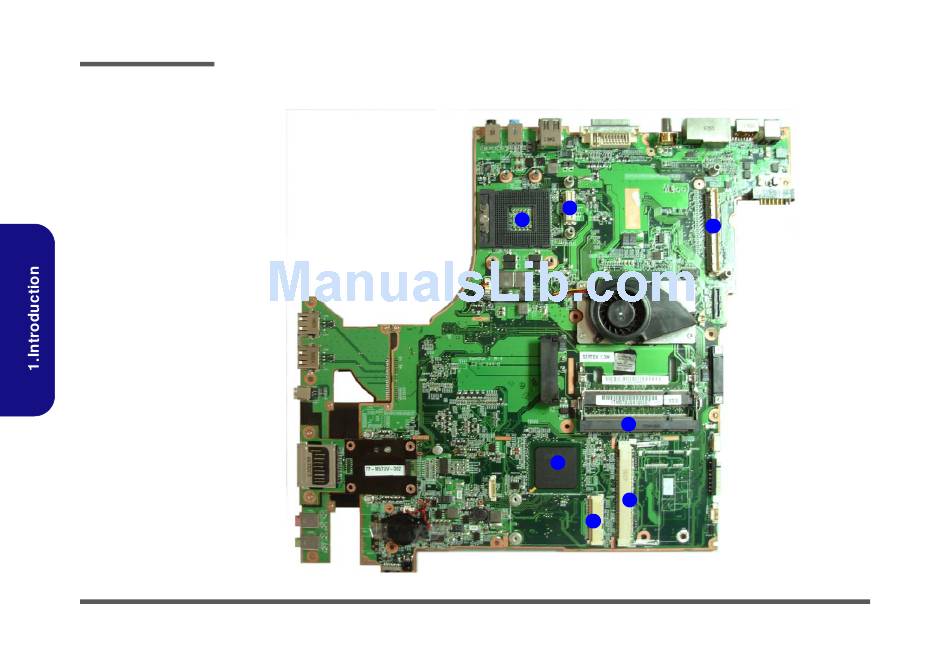

Figure 8
Mainboard Bottom
Key Parts
1. CPU Socket (no
CPU installed)
2. 40-Pin VGA
Socket
3. 160-Pin VGA
Socket
4. Memory Slots
DDR2 So-DIMM
5. Mini-PCI Socket
(TV Tuner Card)
6. Mini-PCIe Socket
(Wireless Lan
Module)
7. Intel I/O
Controller Hub
1 - 12 Mainboard Overview - Bottom (Key Parts)
2
1
4
7
5
6
3
