Front Panel Operations

The following paragraphs detail the power-up process and then describe the menu
system, the picture adjustments, and selection of executive mode.

Power

Power is automatically applied when the power cord is connected to an AC source.
When AC power is applied, the switcher performs a self-test that blinks all of the
front panel LEDs and then lights only the LEDs for the previously selected output
and the tied input. The self-test also displays the model name, part number, and
the firmware version in the LCD display. After approximately 2 seconds, the LCD
reverts to its default display cycle, alternating between two displays: one showing
the inputs selected for outputs 1 and output 2, and the other showing the selected
output rates (figure 3-6). An error-free power up self-test sequence leaves all of the
LEDs off, with the exception of the selected output's and input's LEDs, off and the
LCD cycling through the default displays.
Extron Electronics
ISM 482
Power
on Integration
Scaling Matrix

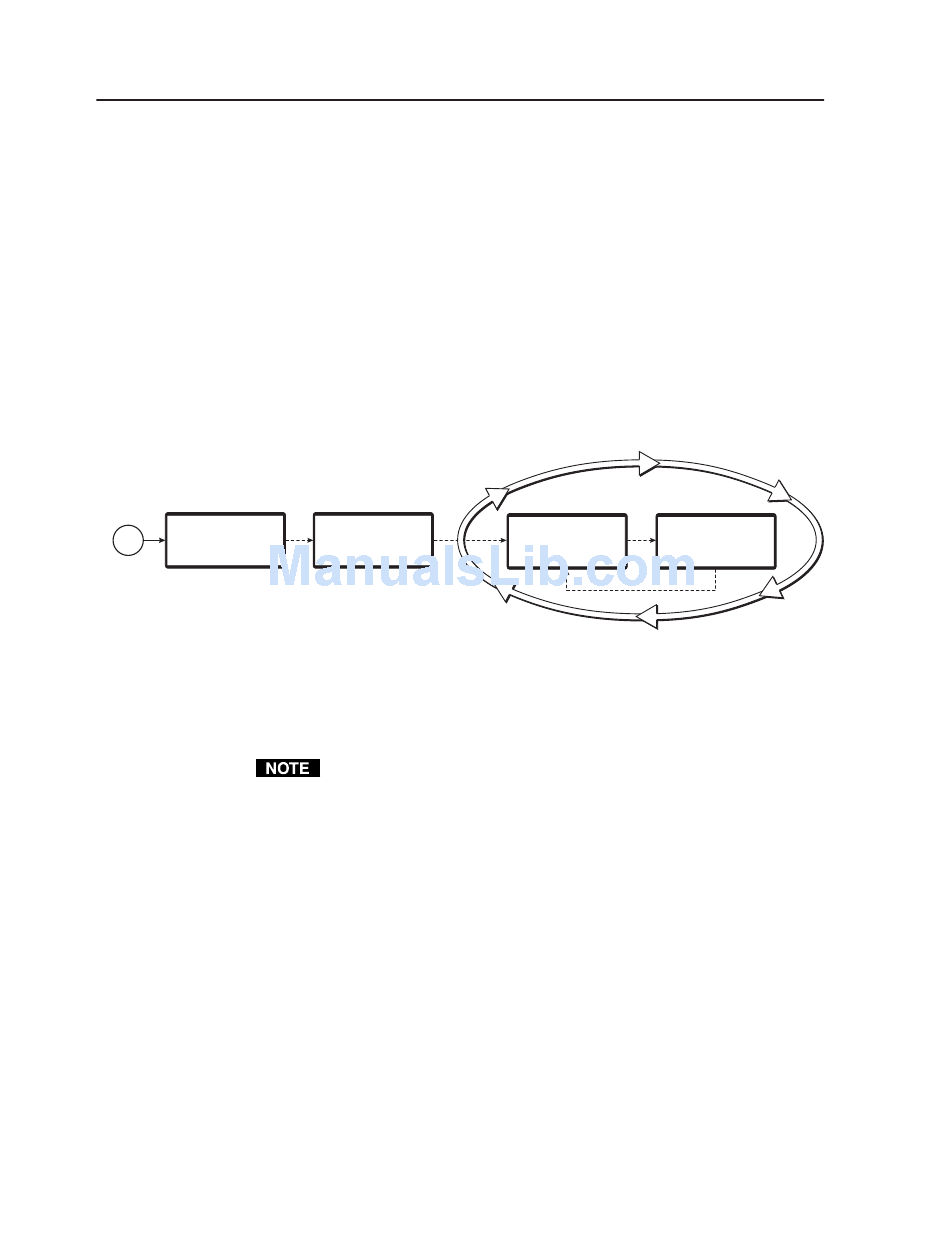

Figure 3-6 — LCD power up and default display cycle
The selected inputs for output 1 and output 2, the picture adjustments, and other
current settings are saved in nonvolatile memory. When power is applied, the
latest configuration is retrieved.
3-6 Integration Scaling Matrix Switcher • Operation
Extron Electronics
ISM 482
60-425-01
2 2
sec. sec.
Version x.xx
On figure 3-6 and all other flowcharts in this chapter, solid lines indicate
screen changes initiated by the operator. Dashed lines indicate screen changes
that are the result of a timeout function.
Default Display Cycle
Out #1 In # 1 RGB Output Rate
0.00 kHz 0.00Hz #1 1280 x 1024 @ 60
Out #2 In # 3 S-Video 2
sec.
0.00 kHz 0.00Hz #2 1280 x 1024 @ 60
2
sec.
