Click the OK button. The switcher checks several possibilities, in the

following order, and then responds accordingly.

Does the address include a specific file name, such as

10.13.156.10/file_name.html? If so, the switcher downloads that HTML

page.

Is there a file in the switcher's memory that is named "index.html"?

If so, the switcher loads "index.html" as the default startup page.

If neither of the above conditions is true, the switcher loads the factory-

installed default startup page, "nortxe_index.html" (figure 6-2), also

known as the Control page.

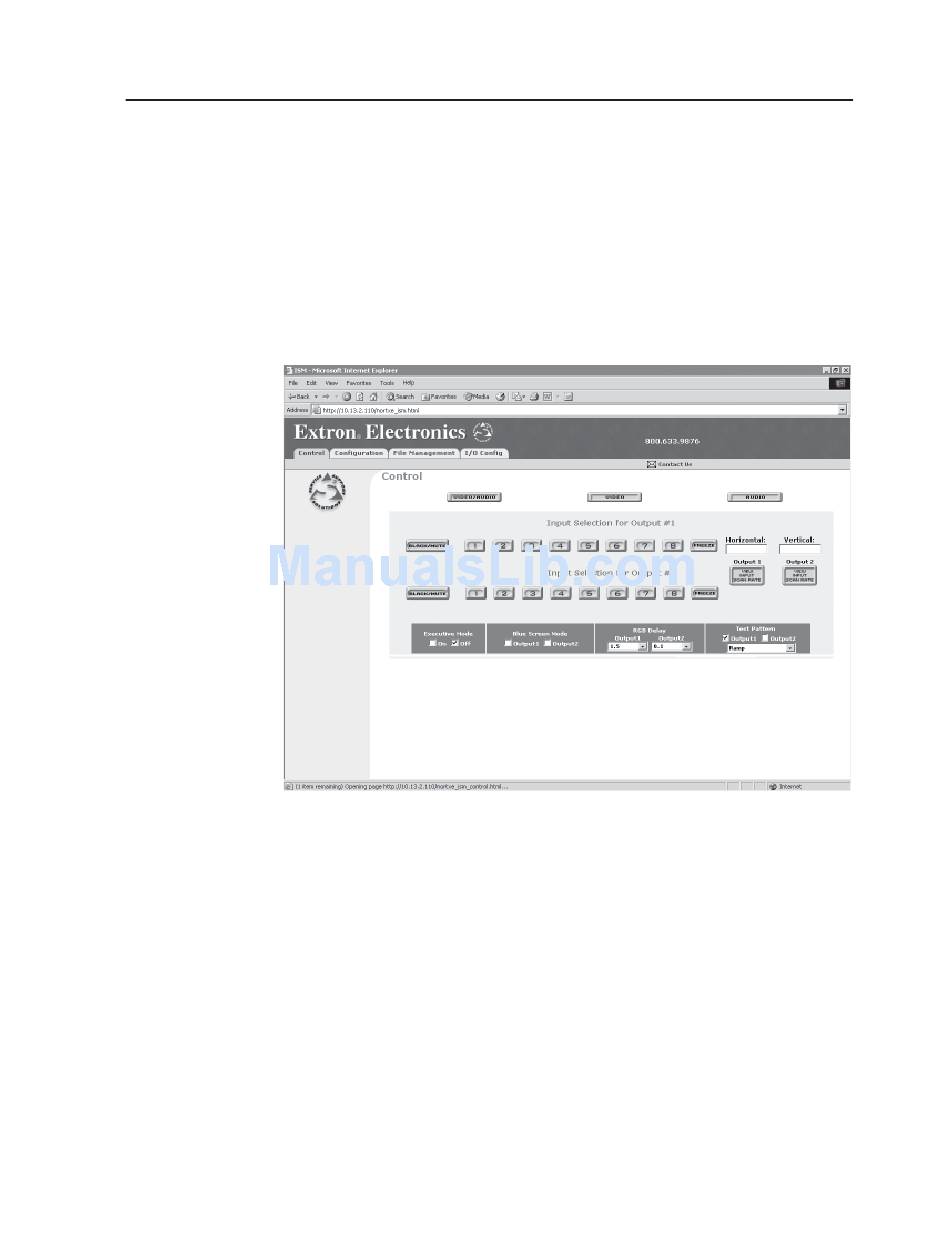

Figure 6-2 — Control page

Integration Scaling Matrix Switcher • Ethernet Operation

6-3
