User Presets menu

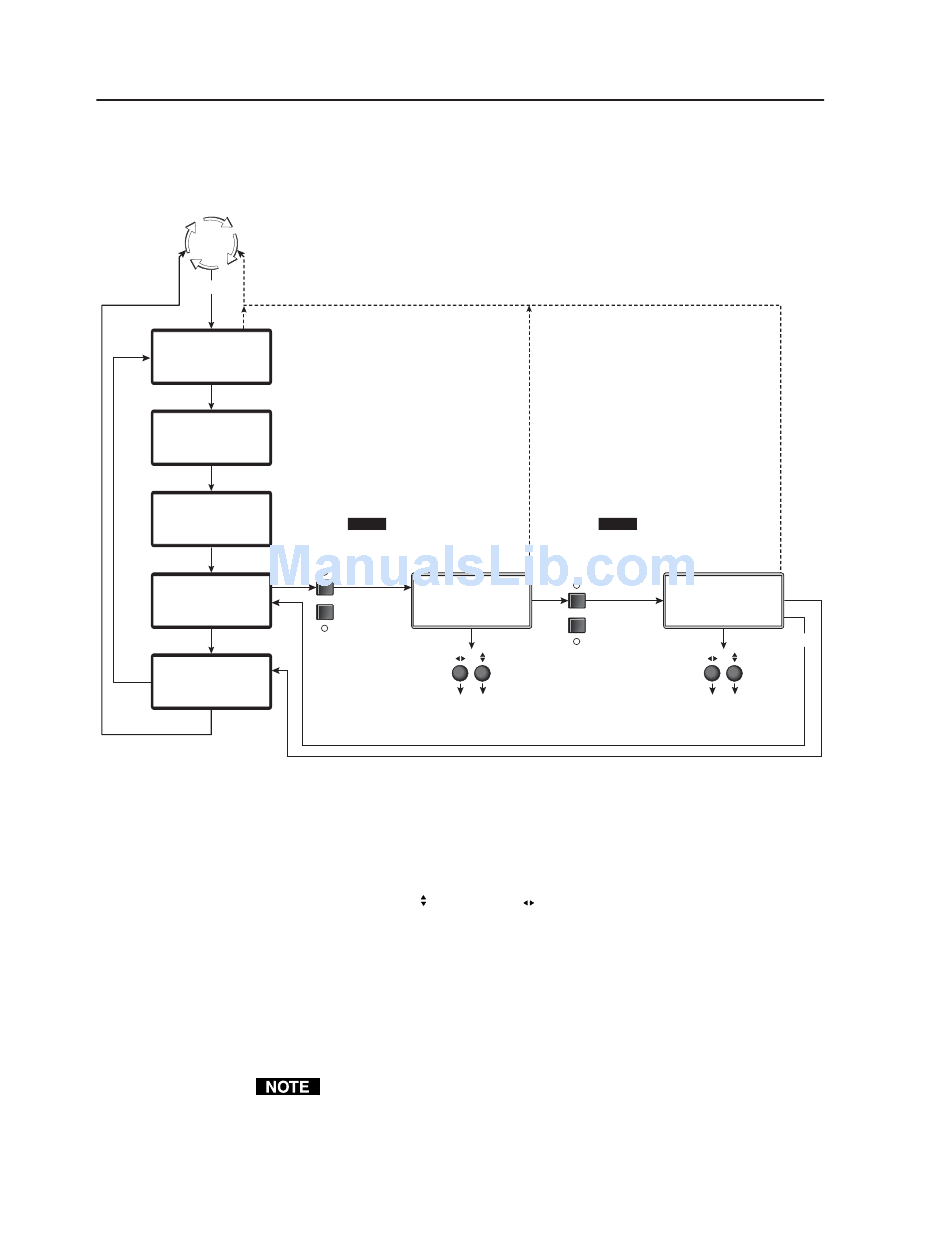

Figure 3-11 is a flowchart that shows an overview of the User Presets menu, the
Save Preset and Erase Preset submenus, and the available settings.
Default
Cycle
Menu
10 sec.
Video & Audio
Configuration
Menu
Output
Configuration
Menu
Advanced
Configuration
Menu
Next
User Presets
Menu
Exit Menu
Menu
Press Next to Exit
Next
Figure 3-11 — User Presets menu flowchart

Save Preset submenu

Select the output with the settings that you want to save as a preset by pressing the
desired Output button.
Rotate either the Adjust or the Adjust
highlight (< >) one of three memory presets for the selected output or highlight
N/A for no preset. Press the Next button to save the current settings to the selected
preset. Select N/A and press the Next button to exit without saving the settings.
Presets are saved sets of values for the current color, tint, contrast, brightness,
detail, sizing, and centering settings. Presets saved in nonvolatile memory; when
the ISM is powered down and later powered back up, the settings are available for
selection. Saving the settings to a preset number overwrites the settings previously
written to that preset number.
3-14 Integration Scaling Matrix Switcher • Operation
NOTE To save a preset for the second
output after saving the preset
for the first, start over from
the default cycle.
1
Save Out #2 Preset
OUTPUTS
If necessary,
<N/A> 1
select the
unselected
2
output.
Use either Adjust knob
to select a preset or no
preset (N/A). Press Next.
The color, tint, contrast, brightness, detail, sizing, and centering adjustments
are tailored for the selected output rate. If you change the output rate and then
recall a preset for the earlier rate, the adjustments recalled in the preset have no
effect on the video output. However, if you then change back to the earlier
output rate, the effects of the adjustments appear on the screen if they were not
overwritten for the old output rate.
NOTE To erase a preset for the second
output after erasing the preset
for the first, start over from
the default cycle.
10 sec.
1
Erase Out #1 Preset
Next
2 3 <N/A>
OUTPUTS
If necessary,
select the
unselected
2
output.
Use either Adjust knob
to select a preset or no
preset (N/A). Press Next.
knob while in the Save Preset submenu to
10 sec.
Menu
1 2 3
Next
