Quick Start — Integration Scaling Matrix Switcher, cont'd
Step 9

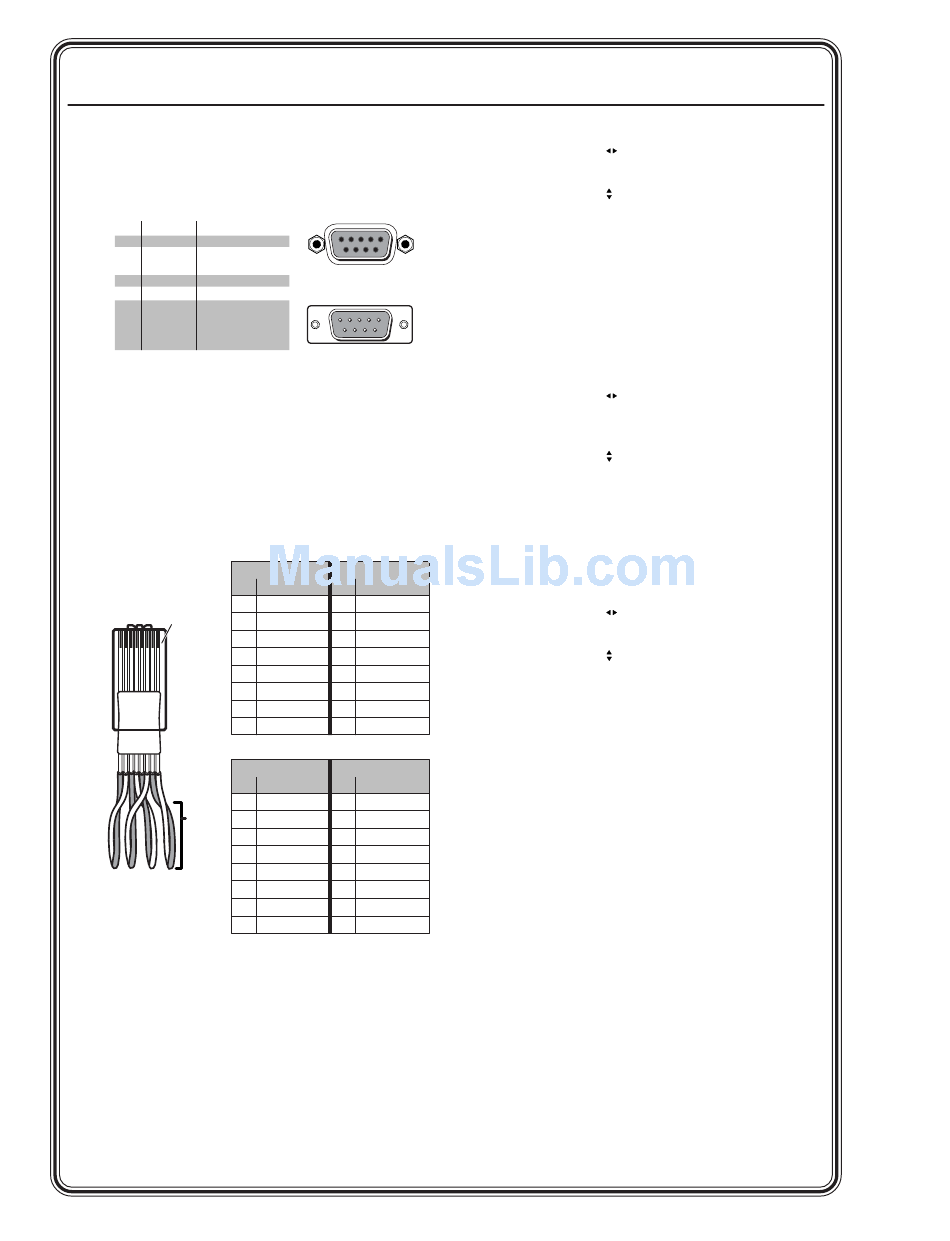

If desired, connect a control system or computer to
the Remote RS-232 port.
Pin RS-232 Function
1 — Not used
2 TX Transmit data
3 RX Receive data
4 — Not used
5 Gnd Signal ground
6 — Not used
7 — Not used
8 — Not used
9 — Not used
Step 10
If desired, connect a network WAN or LAN hub, a
control system, or computer to the Ethernet RJ-45
port. For connection to a network hub, router, or
switch, wire the network interface cable as a
straight-through cable. For connection to a
computer or control system, wire the network
interface cable as a crossover cable.
Pin
Clip Down
1 2 3 4 5 6 7 8
2
RJ-45
connector
3
4 Blue
5
6
7
8 Brown
1 2 3 4 5 6 7 8
Pin
Twisted
2
Pairs
3
4 Blue
5
1&2 3&6 4&5 7&8
6
7
8 Brown
Step 11
Plug the Integration Seamless Matrix switcher and
input and output devices into a grounded AC
source, and turn on the input and output devices.

Setup and Operation

Configure the inputs
1. Press Menu > Next.
2. Press an input button (to select the input to
configure).
QS-2 Integration Scaling Matrix Switcher • Quick Start
5 1
9 6
Female
1 5
6 9
Male
Straight-through cable
Side 1 Side 2
Wire color Pin Wire color
1 White-orange 1 White-orange
Orange 2 Orange
White-green 3 White-green
4 Blue
White-blue 5 White-blue
Green 6 Green
White-brown 7 White-brown
8 Brown
Crossover cable
Side 1 Side 2
Wire color Pin Wire color
1 White-orange 1 White-green
Orange 2 Green
White-green 3 White-orange
4 Blue
White-blue 5 White-blue
Green 6 Orange
White-brown 7 White-brown
8 Brown
3. Rotate the Adjust knob to select the input
video type.
4. Rotate the Adjust knob to select the input
audio gain or attenuation level.
5. Select other inputs to configure as necessary
by pressing the appropriate input button.
6. Press Menu > Menu > Menu > Menu > Next
to return to the default display cycle.
Configure the outputs
1. Press Menu > Menu > Next.
2. Rotate the Adjust knob to select the output
rate for the output indicated on the LCD (for
example, output 1).
3. Rotate the Adjust knob to select the output
frequency.
4. Configure the unselected output (for
example, output 2) by pressing the
appropriate output button and rotating the
knobs as necessary.
5. Press Next.
6. Rotate the Adjust knob to select the output
video sync format (RGBHV or RGBS).
7. Rotate the Adjust knob to select the sync
polarity.
8. Configure the unselected output (for
example, output 1) by pressing the
appropriate output button and rotating the
knobs as necessary.
9. Press Menu > Menu > Menu > Next to
return to the default display cycle.
Create a tie
1. Select video and/or audio to switch by
pressing the Video/Audio button as
necessary to light the green Video LED and/
or the red Audio LED as desired.
2. As necessary, press the Output 1 or Output 2
button to select the desired output. (Only
one output can be selected at a time.) The
Output LED indicates the selected output.
3. Press an input button to select a video and/
or audio input for the selected output. The
output 1 selection is indicated by the solid
green (video) and/or red (audio) Input LED(s).
4. Press the unselected Output button to tie an
input to that output or to view that tie. Both
input selections can be viewed in the LCD
display cycle.
