Extron electronics ISM 482 Assembly, Installation And Operation

Installation and Operation
Installation
1. Ensure power is off to the ISM and all other devices that will be connected to it.
See the typical application diagram at right.
2. If desired, install the optional DVI output card. Refer to the ISM 482 User's
Manual for details.
3. If desired, mount the ISM in a rack. Otherwise, affix the four rubber feet to the
bottom of the ISM in the four corners.
4. Connect up to 8 computer/RGB, component video, S-video, or composite video
source devices to the ISM's BNC inputs. See the input and output BNC
connections diagram below for cabling the various video formats.
5. Connect up to 8 stereo or mono sources to the ISM's captive screw audio inputs.
See the audio input connections diagram below to properly wire the connectors.
6. Connect displays and/or other output devices to the ISM's BNC and 15HD
outputs. See the RGBHV and RGBS examples on the input and output BNC
connections diagram below for cabling outputs.
7. If a DVI output board is installed, connect a DVI or HDMI (with a DVI-to-HDMI
adapter) compatible monitor or display to the rear panel DVI connector. The DVI connector
outputs the output 1 video signal.
8. Connect audio output devices, such as an audio amplifier or powered speakers. See the audio
output connections diagram below to wire the connectors.
CAUTION Incorrect audio connector wiring can damage the switcher. See the audio output
connections diagram below.
9. If desired, connect a PC or third-party control system to the ISM's RS-232 port. See the remote
port diagram below.
10. If desired, plug an RJ-45 connector into the Ethernet port to connect the ISM to a LAN/WAN or
directly to a computer. For a network connection, wire the interface cable as a straight cable. For
connection to a computer or control system, wire the interface cable as a crossover cable.
11. Plug the ISM and input and output devices into a grounded AC power source, and turn on the input and output devices.
Operation
1.
Select video and/or audio to switch by pressing the Video/Audio button as necessary to light the green Video LED and/or red Audio LED.
2. As necessary, press the Output 1 or Output 2 button to select the desired output. (Only one output can be selected at a time.)
3. Press an input button to select a video and/or audio input for the selected output. The selected input is indicated by the solid green (for video) and/or red (for audio) Input
LED(s). Press the unselected output button to tie an input to that output or to view that tie. Both outputs' input selections can be viewed in the LCD display cycle.
4. Use the LCD menu screens (see Main Menus and Operations at right), SIS commands, or the accompanying software program to configure the ISM inputs and outputs.
Refer to the ISM 482 User's Manual for details.
Picture Adjustments
Make picture adjustments (color [RGBcS, component, S-video, and composite video only] / tint [NTSC S-video and composite video only], contrast / brightness, size,
centering, and filter) to the input connected to the selected output by pressing the desired Picture Adjustments button and then rotating the Adjust
on the left side of the LCD screen or the Adjust knob to adjust the setting on the right side of the LCD screen. Press the unselected output button to select and make picture
adjustments to that output's connected input.
Auto Imaging
Auto imaging automatically sizes and centers the selected input. Execute the auto imaging feature for a specific input by pressing and holding the appropriate input button until
the LCD displays the message "Auto Image Input #n", releasing the input button, and then pressing and releasing the input button again.
Input and output BNC connections
R/R-Y R/R-Y R/R-Y R/R-Y R/R-Y
G/Y G/Y G/Y G/Y G/Y
VID VID VID VID VID
B/C B/C B/C B/C B/C
B-Y B-Y B-Y B-Y B-Y Sleeve(s)
H/HV H/HV H/HV H/HV H/HV
V V V V V
RGBHV RGBS or RGsB or S-Video Composite
Video RGBcvS Component Video
Video Video
Extron Electronics, Anaheim, CA, USA
USA 800.633.9876 • Europe +800.3987.6673
Asia +800.7339.8766 • Japan +81.3.3511.7655
China +400.883.1568 • Middle East +971.4.2991800
www.extron.com

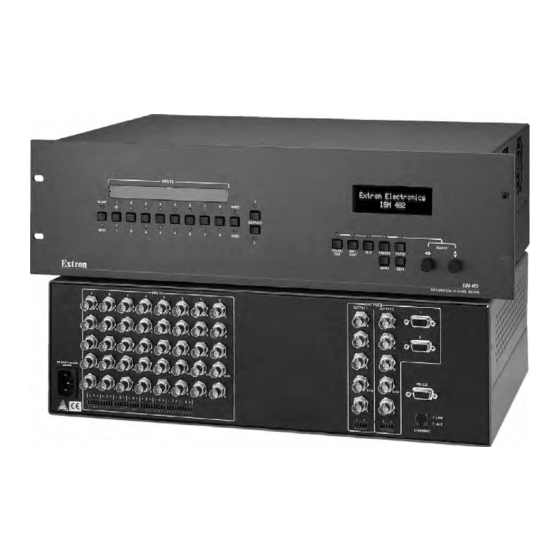

ISM 482 Integration Scaling Matrix Switcher
VCR
Codec
DVD
SMSNSM
M E N U
INPUTS
1 2 3 4 5 6
R/R-Y R/R-Y R/R-Y R/R-Y R/R-Y R/R-Y
G/Y G/Y G/Y G/Y G/Y G/Y
VID VID VID VID VID VID
B/C B/C B/C B/C B/C B/C
B-Y B-Y B-Y B-Y B-Y B-Y
100- 240 50/60 Hz
1.2A MAX.
H/HV H/HV H/HV H/HV H/HV H/HV
V V V V V V
1 2 3 4 5 6 7
INPUT
Laptop
Audio Connections
Inputs Outputs
Unbalanced (high impedance)
Unbalanced
Tip Tip
L
NO GROUND HERE.
Sleeve
Sleeve
Gnd
Tip Tip
R
Sleeve NO GROUND HERE.
Balanced (high impedance)
CAUTION
For unbalanced audio,
connect the sleeve(s)
Tip
L
Ring
to the ground contact.
Gnd
DO NOT connect the
Tip
R
sleeve(s) to the
Ring
negative (-) contacts).
Balanced
Tip
Ring
Sleeve (s)
Tip
Ring
Monitor Monitor
Projector
Extron ISM 482
OUTPUTS
7 8 1 2
1
R/R-Y R/R-Y R R
2
G/Y G/Y G G DVI OUT
RS-232
VID VID
B/C B/C B B
B-Y B-Y
RS-232
H/HV H/HV H/HV H/HV
V V V V
ETHERNET
8
Extron RGB 109xi
LAN/WAN
BUFFERED LOCAL H. SHIFT
MONITOR OUTPUT Network/
Internet
RGB 109xi
VGA INTERFACE WITH ADSP

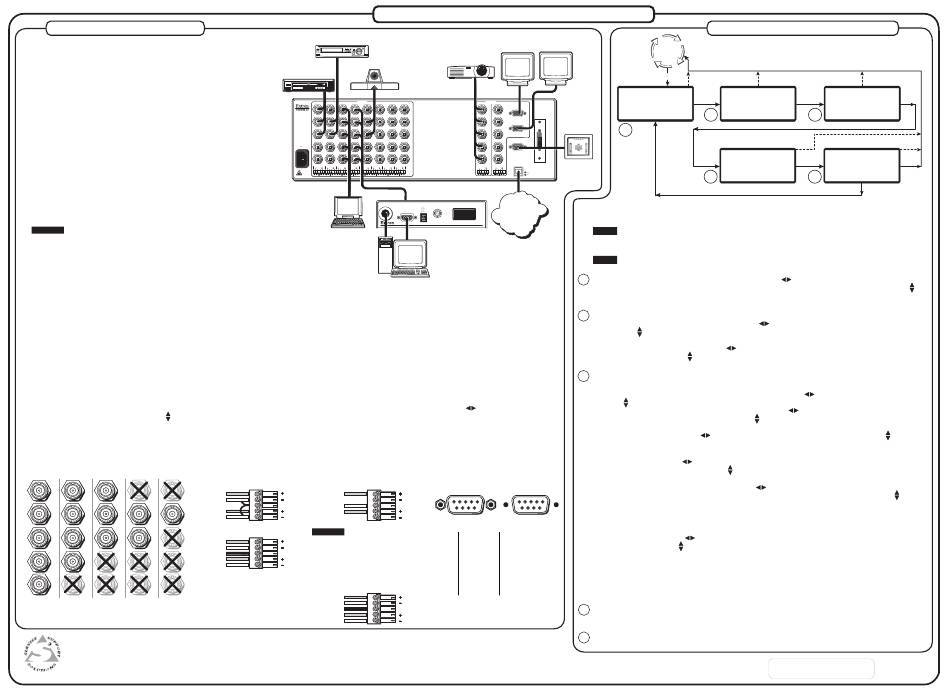

Typical application
PC
knob to adjust the setting
Remote port
5 1 1 5
L
Gnd
R
9 6 6 9
Female Male
Pin RS-232 Function
1 — Not used
2 TX Transmit data
3 RX Receive data
4 — Not used
5 Gnd Signal ground
6-9 — Not used
L
Gnd
R
Main Menus and Operation
Default
Cycle
Menu
10 sec.
Video & Audio Output
Menu
Configuration Configuration
2
1
User Presets
Menu
4
Use the Menu and Next buttons to navigate through the menu system. Use the Adjust knobs to make
configuration changes.
NOTE
If you press the Menu button while a submenu is active, the next main menu will become active. For
example, the menu will change from the Input Configuration menu or submenus to the Output
Configuration main menu.
NOTE
To return to the default screens, let the ISM remain idle for 10 seconds until the selected screen
times out, or press the Menu button until the Exit Menu appears, then press the Next button.
1 Video & Audio Configuration — Select an input. The Adjust
(RGB, RGBcvS, YUVi, YUVp, Betacam 50, Betacam 60, HDTV, S-video, or composite video). The Adjust
knob adjusts the input audio level in the range -15dB to +9dB. The default for each input is RGB video and
0dB audio level.
2 Output configuration —
• Output resolution and refresh rate — The Adjust
The Adjust knob selects the refresh rate. "Lock" indicates Accu-RATE Frame Lock™. The default is
1024 x 768 at 60 Hz.
• Output sync and polarity — The Adjust knob selects the sync format, RGBHV or RGBS, for the
selected output. The Adjust knob selects the polarity of the H and V output. The default values are
RGBHV, H Sync negative, and V Sync negative.
3
Advanced Configuration —
• Test Pattern — Select a test pattern: Color Bars, cross hatch, 4 x 4 cross hatch, gray scale, crop,
alternating pixels, aspect ratio 1.78/1.85/2.35, or ramp. The Adjust
Adjust knob selects On or Off for either or both outputs to receive the test pattern. The default is both Off.
Blue Only Mode and Edge Smoothing — Rotate the Adjust
•
or Off for either or both outputs. Rotate the Adjust
either or both outputs. Edge smoothing softens the edges of a picture by minimizing pixel differences.
• Output Blanking — The Adjust knob selects the number of top lines to blank. The Adjust
selects the number of bottom lines. Blanking masks noise on the top and bottom of a scaled image that
can result from processes such as captioning or tapehead switching.
• RGB Delay — The Adjust knob sets the RGB delay for the output 1 input selection from 0 seconds to 5
seconds in 0.1 second steps. The Adjust knob sets the RGB delay for the output 2 input selection. The
default for both outputs is 0.2 seconds.
Auto Imaging and Auto Memories — The Adjust
•
selections. Auto imaging automatically sizes and centers each newly detected input. The Adjust
toggles the auto memories feature on and off for all input selections. Auto memories save and recall
centering, sizing, and filtering information for input rates, based on the frequency.
• Enhanced Mode — Either Adjust knob toggles enhanced mode On or Off for either or both outputs.
Enhanced mode is an automatic gain control for S-video and composite video inputs.
• Pixel Phase — The Adjust knob sets the pixel phase adjustment for the input connected to output 1
from 0 to 31. The Adjust knob sets the pixel phase adjustment for the input connected to output 2.
Sampling at the optimum pixel phase results in a bright and stable scaled output. The default is 16.
PAL Film Mode — Either Adjust knob selects On or Off for the selected input. The PAL film mode (2:2
•
pulldown detection) should be used for a video source that is PAL video that originated from film. Select
other inputs as necessary to configure.
• Reset — Resets the ISM to its factory default values. While the Reset submenu is active, press and hold
the Black/Mute button until the LCD displays the reset message.
4 User Presets — Three user presets per input are saved and erased from the Save Preset or Erase Preset
menu. Either knob selects ( < > ) among the presets. The Next button saves or erases the preset. N/A exits
without saving or erasing. (Recall user presets by repeatedly pressing the applicable Input button.)
Exit — Press the Next button to return to the default display cycle or press the Menu button to return to the
5
main menu system.
10 sec. 10 sec.
Advanced
Menu
Configuration
3
10 10
sec. sec.
Exit Menu
Next
Menu
Press Next to Exit
5
Menu
knob selects the desired input video format
knob selects the resolution for the selected output.
knob selects a test pattern. The
knob to select ( < > ) blue only mode On
knob to select the edge smoothing feature On or Off for
knob
knob toggles auto imaging on and off for all input
knob
33-633-01 C
