Projector
Extron
ISM 482
DVD Player
- 240
100
VCR

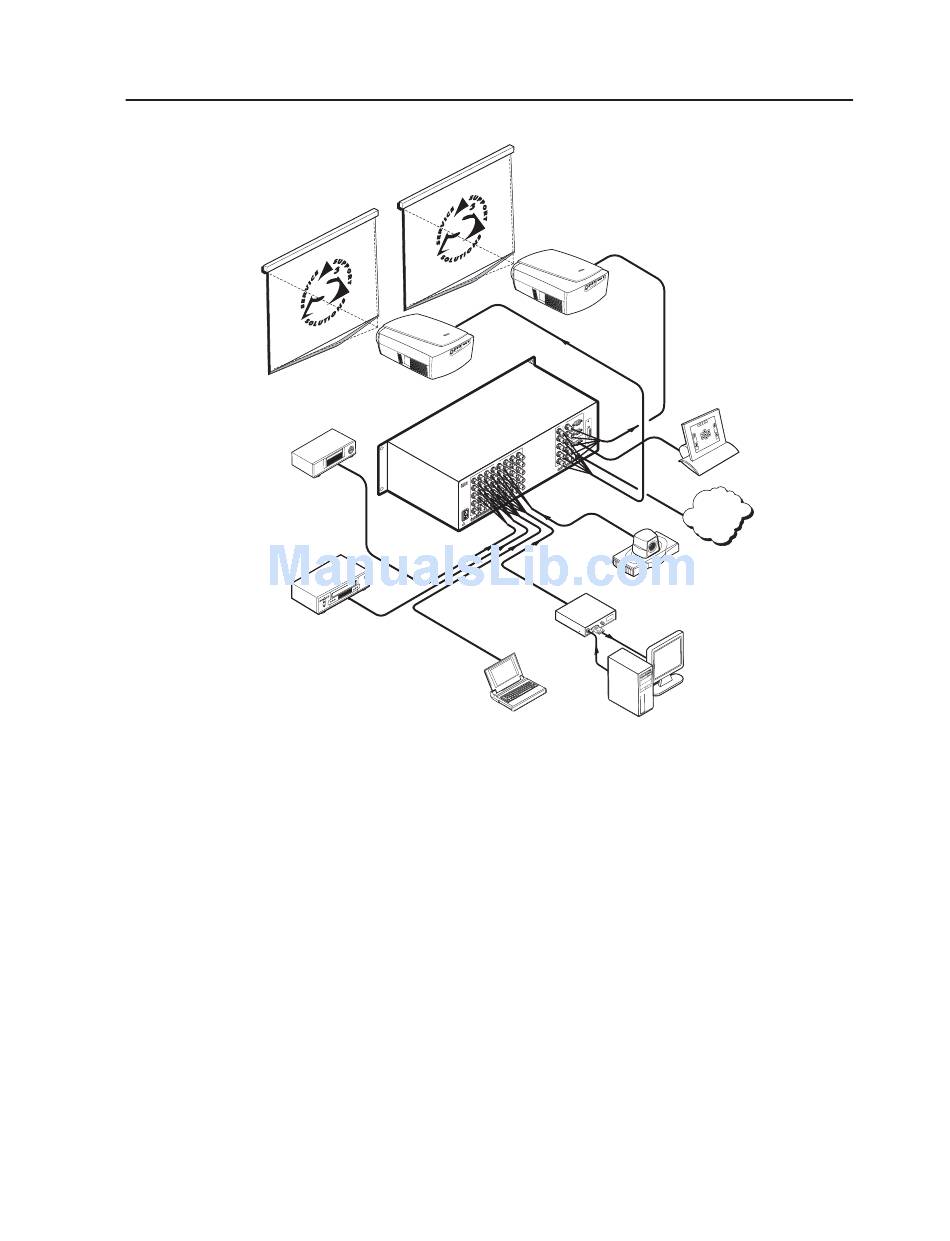

Figure 1-1— Typical ISM 482 Integration Scaling Matrix Switcher
application
The ISM receives and outputs the stereo audio on 5-pole captive screw connectors.
For upscaling, the ISM 482 converts the horizontal and vertical sync timing and the
number of lines of the lower-resolution video input to match the native resolution
of the display. This produces an undistorted, brighter picture than an unscaled
input would.
For downscaling, the ISM 482 accepts any computer resolution, up to 1600 x 1200,
with horizontal scan rates up to 100 kHz and vertical scan rates up to 120 Hz, and
converts the input to match the native resolution of the display.
The switcher is ideal for displaying images on projectors with limited display
resolutions, such as LCD projectors, DLP projectors, and plasma projectors.
The switcher features built-in test patterns to aid in monitor or projector set-up and
evaluation.
The switcher is housed in a rack-mountable, 3U high, 17.5" wide, metal enclosure.
The ISM has an internal 100VAC to 240VAC, 50/60 Hz, 30 watts power supply that
provides worldwide power compatibility.
Integration Scaling Matrix Switcher • Introduction
Projector
1
S 2 T
UT I OU
TP DV
OU
1 R
2
R
G
2
RS -23
G
B
B
8
H/ HV ET
HE RN
7 ET
R
H/ HV V
6
R
IN PU TS 5 V
R
G
4
R
G
3
R
G
B
2
R
G
1 B
R
G
B H/ HV
R
G B
H/ HV
G
B
H/ HV
G
B H/ HV
B H/ HV
8
B
H/ HV
7
H/ HV 6
Hz 5
50/ 60 H/ HV
MA X.
1.2A 4
3
2
1
Extron
RGB 112xi
Laptop
Control System
(RS-232)
LAN/WAN
Network/
Internet
Codec
Podium PC
1-3
