Ethernet Operation, cont'd

Output format

Select between separate horizontal (H) and vertical (V) sync or composite (S) sync
as follows:
1.

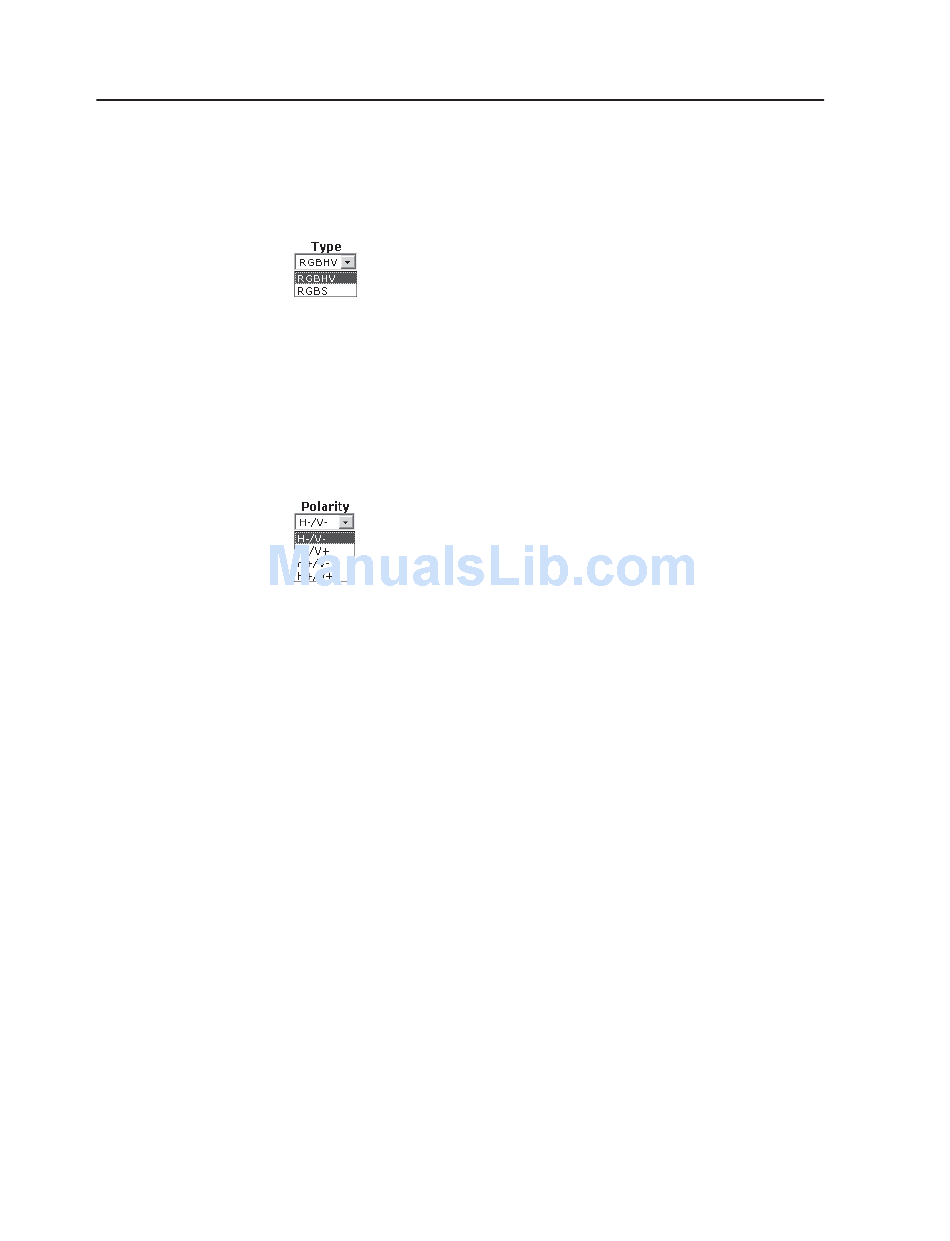

Figure 6-11 — Type drop box
2.
3.

Output polarity

Select the output polarity as follows:
1.
Figure 6-12 — Polarity drop box
2.
3.
6-12 Integration Scaling Matrix Switcher • Ethernet Operation
Click in the Type field. A drop-down box appears (figure 6-11).
Click the desired sync type.
Click the Submit button.
Click in the Polarity field. A drop-down box appears (figure 6-12).
Click the desired output sync polarity.
Click the Submit button.
