RS-232 connection

Remote port — Connect a host device, such as a computer or touch panel
7
control, to the integration scaling matrix switcher via this 9-pin D connector
for serial RS-232 control (figure 2-9).
Pin
1
2
3
4
5
6
7
8
9

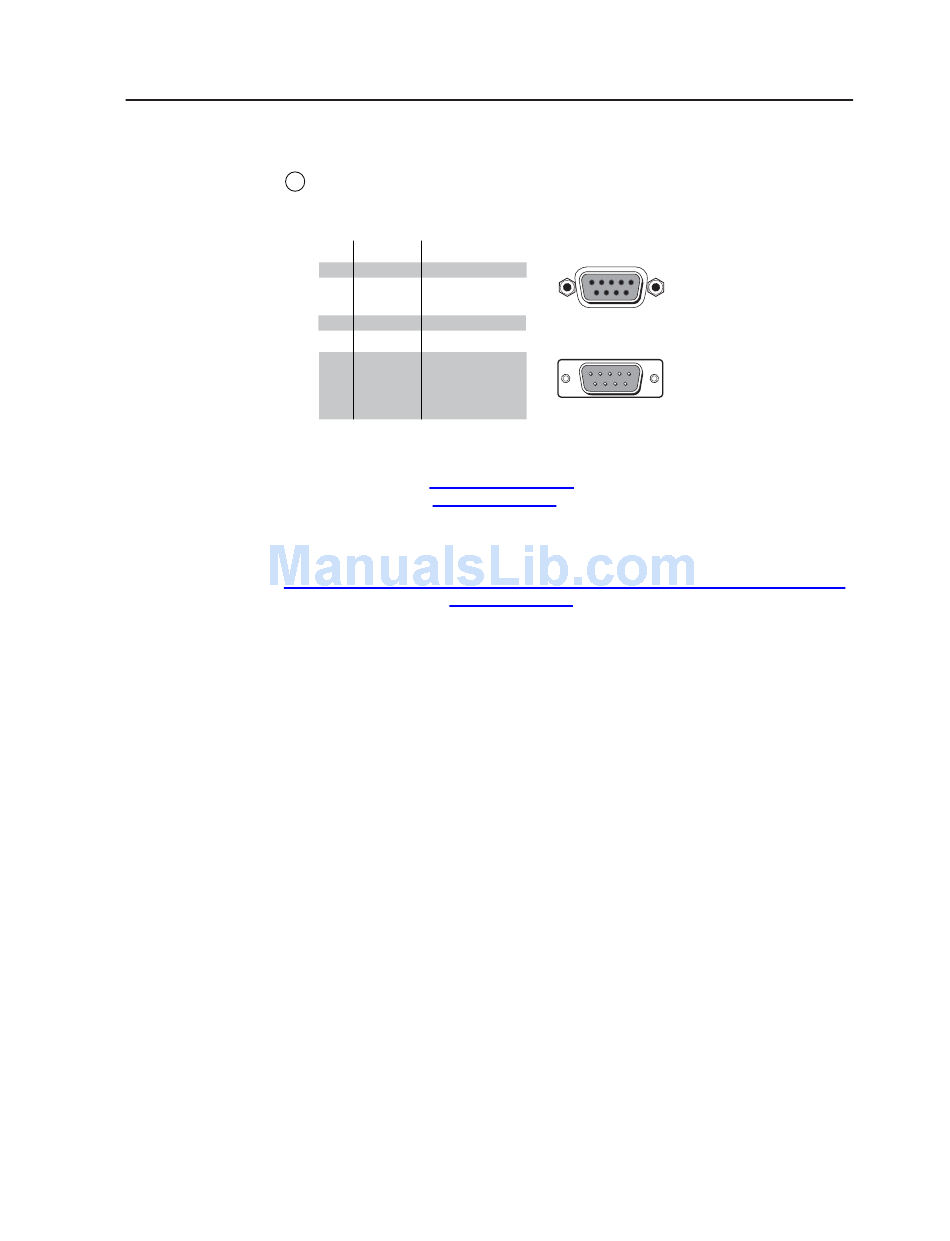

Figure 2-9 — Remote port pin assignments
See chapter 4, "Programmer's Guide", for definitions of the SIS commands
and chapter 5, "Switcher Software" to install and use the control software.

Configuration

The ISM can be configured using either the front panel controls, the SIS, or the
Windows Control program. See chapter 3, "Operation", chapter 4, "Programmer's
Guide", and chapter 5, "Switcher Software".
RS-232 Function
— Not used
TX Transmit data
RX Receive data
— Not used
Gnd Signal ground
— Not used
— Not used
— Not used
— Not used
Integration Scaling Matrix Switcher • Installation
5 1
9 6
Female
1 5
6 9
Male
2-9
