Setup Guide
Matrix Switchers

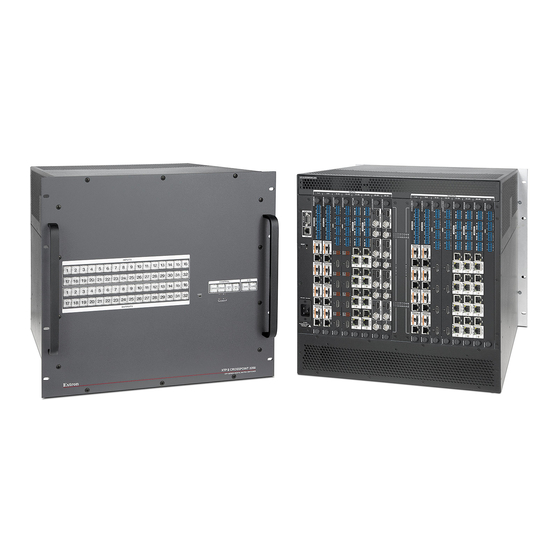

XTP II CrossPoint Series
Configurable Digital Video Matrix Switchers
68-1736-51 Rev. C
12 16

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the XTP II CrossPoint 1600 and is the answer not in the manual?

Questions and answers

Related Manuals for Extron electronics XTP II CrossPoint 1600

Summary of Contents for Extron electronics XTP II CrossPoint 1600

  • Page 1 Setup Guide Matrix Switchers XTP II CrossPoint Series Configurable Digital Video Matrix Switchers 68-1736-51 Rev. C 12 16...

  • Page 2: Safety Instructions

    Safety Instructions Safety Instructions • English Istruzioni di sicurezza • Italiano AVVISO: Questo simbolo, ,quando viene utilizzato il WARNING: This symbol, , when used on the product, is intended prodotto, serve ad avvisare l’utente della presenza di tensioni to alert the user of the presence of uninsulated dangerous voltage pericolose non isolate all’interno del prodotto, che può...
  • Page 3 ついては、 エクス トロンのウェブサイ トwww.extron.comより 『Extron Safety and Regulatory Compliance Guide』 (P/N 68-290-01) をご覧 ください。 Copyright © 2016 Extron Electronics. All rights reserved. Trademarks All trademarks mentioned in this guide are the properties of their respective owners. The following registered trademarks ( ®...
  • Page 4 FCC Class A Notice This equipment has been tested and found to comply with the limits for a Class A digital device, pursuant to part 15 of the FCC rules. The Class A limits provide reasonable protection against harmful interference when the equipment is operated in a commercial environment.
  • Page 5 Class 1 Laser Product Any service to this product must be carried out by Extron Electronics and its qualified service personnel. CAUTION: Using controls, making adjustments, or performing procedures in a manner other than what is specified herein may result in hazardous radiation exposure. NOTE: or more information on safety guidelines, regulatory compliances, EMI/EMF compatibility, accessibility, and related...
  • Page 6 Conventions Used in this Guide Notifications ATTENTION: Risk of property damage. • Risque de dommages matériels. • NOTE: A note draws attention to important information. Software Commands Commands are written in the fonts shown here: ^AR Merge Scene,,Op1 scene 1,1 ^B 51 ^W^C [01] R 0004 00300 00400 00800 00600 [02] 35 [17] [03] E X! *X1&* X2)* X2#* X2! NOTE:...

  • Page 7: Table Of Contents

    Contents ....... 23 ....... 1 Remote Control Introduction Selected SIS Commands .... 23 Guide Overview ......1 Establishing a Network Product Description ...... 1 (Ethernet) Connection .... 23 Endpoint Configuration ..... 3 Number of Connections ..24 Swapping Board and Establishing a USB Port Endpoints .........
  • Page 8 XTP II CrossPoint Series • Contents...

  • Page 9: Introduction

    Introduction This section gives an overview of the Extron XTP II CrossPoint Series configurable matrix switchers. Topics in this section include the following: Guide Overview • Product Description • Guide Overview NOTE: For more information on any subject in this guide, see the XTP II CrossPoint Series User Guide at www.extron.com.

  • Page 10: Input And Output Boards

    Tx Rx AUDIO XTP CP 4o SA ATSC & HDTV 13−16 100-240V -- A MAX Cable Tuner 50-60Hz Extron Flat Panel XTP II CrossPoint 1600 STANDBY/ON PQLS HDMI OPEN/CLOSE FL OFF Display Blu-ray Modular Digital HDMI HDMI - Matrix Switcher...

  • Page 11: Endpoint Configuration

    Inputs and Outputs on page 5 for details). The XTP II CrossPoint 1600 can support up to four input boards and four output boards of any of the type listed in the Input and Output Boards table, for a total of 16 inputs and 16 outputs.

  • Page 12: Installation

    (1-2, 5-8, and so on). On the XTP II CrossPoint 1600, boards are installed horizontally, input boards in the top space and output boards in the bottom space. Inputs or output positions are 1-4 on the top space and 13-16 on the bottom space.

  • Page 13: Inputs And Outputs

    REMOTE RS 232/RS422 LINK RESET 100-240V --A MAX 50-60Hz DISCONNECT POWER CORD BEFORE SERVICING Figure 3. XTP II CrossPoint 3200 Matrix Switcher Rear Panel ATTENTION: Unplug the product and other devices before proceeding. • avant de procéder. Débranchez le produit et les autres appareils •...
  • Page 14 OUTPUTS INPUTS 9-12 13-16 17-20 21-24 25-28 29-32 9-12 13-16 17-20 21-24 25-28 29-32 9 13 17 21 25 29 8 12 16 20 24 28 32 B B B 9 13 17 21 25 8 12 16 20 24 28 32 C C C 33 37 41 45 49 53 57 61 36 40 44 48 52 56 60 64...
  • Page 15 NOTE: See item figure 2 on page 4, figure 3 page 5, and figure 4 on page 6. XTP power indicators — Indicate the status of the power over XTP (PoX) provided to the endpoint as follows: Lit green — The board is providing XTP power to the endpoint.
  • Page 16 NOTE: See item figure 2 on page 4, figure 3 page 5, and figure 4 on page 6. XTP II CP 4i 4K PLUS and XTP CP 4i HDMI (HDMI input boards) INPUTS XTP II CP 4i HD 4K PLUS AUDIO HDMI connectors —...
  • Page 17 NOTE: See item figure 2 on page 4, figure 3 page 5, and figure 4 on page 6. Audio (local audio) connectors — Connect balanced or unbalanced stereo audio inputs to these 3.5 mm, 5-pole captive screw connectors Local audio connectors (see on page 17 to wire the connectors).
  • Page 18 NOTE: See item figure 2 on page 4, figure 3 page 5, and figure 4 on page 6. XTP power indicators — Indicate the status of the PoX provided to the endpoint as follows: Lit green — The board is providing XTP power to the endpoint.
  • Page 19 NOTE: See item figure 2 on page 4, figure 3 page 5, and figure 4 on page 6. XTP II CP 4o HD 4K PLUS and XTP CP 4o HDMI (HDMI output boards) OUTPUTS XTP II CP 4o HD 4K PLUS AUDIO HDMI connectors —...

  • Page 20: Remote Control

    Remote Control NOTE: figure 2 See item and item on page 4, figure 3 figure 4 on page 5, and on page 6. LAN (Ethernet) port — If desired, connect a network WAN or LAN hub, a control system, or a computer to the Ethernet RJ-45 port (see TP connectors on the next page to wire the...

  • Page 21: Additional Connector Information

    ATTENTION: Extron recommends that this procedure be performed • by a licensed electrician only. See the XTP II CrossPoint Series User Guide, available at www.extron.com, for installation instructions, warnings, and other important information. Extron recommande que cette tâche soit exécutée •...
  • Page 22 The matrix switcher LAN port and the LAN ports on the input and output boards support both 10 Mbps (10Base-T — Ethernet) and 100 Mbps (100Base-T — Fast Ethernet), half-duplex and full duplex Ethernet connections. Both Ethernet speeds require CAT 5e cable at minimum.
  • Page 23 NOTE: When using cable in bundles or conduits, consider the following: Do not exceed 40% fill capacity in conduits. • Do not comb the cable for the first 20 m, where cables are • straightened, aligned, and secured in tight bundles. Loosely place cables and limit the use of tie wraps or hook •...
  • Page 24 HDMI connectors Use a LockIt Lacing Bracket to securely fasten each HDMI cable to the matrix switcher as follows: Plug the HDMI cable into the panel connection ( 3 3 3 Loosen, but do not remove, the HDMI connection mounting screw from the panel enough to allow the 2 2 2 1 1 1...
  • Page 25 Local audio connectors Ring Sleeve Sleeves Sleeve Ring Unbalanced Stereo Input Balanced Stereo Input Do not tin the wires! No Ground Here Ring Sleeves Sleeves Ring No Ground Here Unbalanced Stereo Output Balanced Stereo Output Figure 7. Audio Input and Output Connector Wiring ATTENTION: For unbalanced audio output, connect the sleeves to •...

  • Page 26: Front Panel

    The XTP II CrossPoint 6400 and XTP II CrossPoint 3200 • have four power supplies installed and indicated. The XTP II CrossPoint 1600 has two power supplies • installed and indicated in its standard configuration (only two LEDs lit). It is available in a four-power-supply, redundant power upgrade configuration, in which it indicates all four supplies.

  • Page 27: Front Panel Operations

    Front Panel Operations The section describes simple XTP II CrossPoint matrix switcher operation from the front panel. Topics that are covered include: Creating a Tie • Saving or Recalling a Preset • Setting the Front Panel Locks (executive Modes) • Viewing and Adjusting the Audio Level •...

  • Page 28: Saving Or Recalling A Preset

    Saving or Recalling a Preset A "preset" is a configuration that has been stored. Save a preset — Press and hold the button until it Preset blinks. Save a 2 seconds PRESET PRESET preset Press and hold. The Preset button blinks. Recall a preset —...

  • Page 29: Selecting Lock Mode 2 Or Toggling Between Mode 2 And Mode 0

    Advanced functions consist of: Setting audio output mutes • Setting audio output volume • Setting audio/RS-232 wire pair and front panel configuration • The matrix switcher is shipped from the factory in Lock mode 2 Selecting Lock Mode 2 or Toggling Between Mode 2 and Mode 0 NOTES: If the matrix switcher is in Lock mode 0 or mode 1, this...

  • Page 30: Viewing And Adjusting The Audio Level

    Viewing and Adjusting the Audio Level NOTES: Gain and attenuation can be adjusted for local inputs only. • Volume can be adjusted for the local outputs only. • Press and hold the button until it blinks. Audio 2 seconds AUDIO AUDIO Press and Audio button blinks.

  • Page 31: Remote Control

    Remote Control This section describes using the remote control features of the XTP II CrossPoint matrix switchers to control the devices. Topics that are covered include: Selected SIS Commands • XTP System Configuration Program • Selected SIS Commands You can use Simple Instruction Set (SIS) commands for operation and configuration of the matrix switchers (see SIS Command and Response Table for Matrix Switcher Commands...

  • Page 32: Number Of Connections

    Number of Connections A switcher can have up to 200 simultaneous TCP connections, including all HTTP sockets and Telnet connections. When the connection limit is reached, the switcher accepts no new connections until some have been closed. No error message or indication is given that the connection limit has been reached.

  • Page 33: Arrangement Of Command And Response Tables

    Arrangement of Command and Response Tables The following pages present five command and response tables, each defining a subset of SIS commands and their responses, with examples where appropriate. The following tables are presented: SIS Command and Response Table for Matrix Switcher •...
  • Page 34 XTP II CrossPoint Series • Remote Control...
  • Page 35 XTP II CrossPoint Series • Remote Control...
  • Page 36 XTP II CrossPoint Series • Remote Control...
  • Page 37 XTP II CrossPoint Series • Remote Control...
  • Page 38 XTP II CrossPoint Series • Remote Control...
  • Page 39 XTP II CrossPoint Series • Remote Control...
  • Page 40 XTP II CrossPoint Series • Remote Control...
  • Page 41 XTP II CrossPoint Series • Remote Control...
  • Page 42 XTP II CrossPoint Series • Remote Control...
  • Page 43 XTP II CrossPoint Series • Remote Control...
  • Page 44 XTP II CrossPoint Series • Remote Control...
  • Page 45 XTP II CrossPoint Series • Remote Control...
  • Page 46 XTP II CrossPoint Series • Remote Control...
  • Page 47 XTP II CrossPoint Series • Remote Control...
  • Page 48 XTP II CrossPoint Series • Remote Control...
  • Page 49 XTP II CrossPoint Series • Remote Control...
  • Page 50 XTP II CrossPoint Series • Remote Control...
  • Page 51 XTP II CrossPoint Series • Remote Control...
  • Page 52 XTP II CrossPoint Series • Remote Control...

  • Page 53: Sis Command And Response Table For Ip-Specific Commands

    XTP II CrossPoint Series • Remote Control...

  • Page 54: Xtp System Configuration Program

    XTP System Configuration Program Another way to operate the matrix switcher is via the Windows ® based XTP System Configuration software. For details on installing and operating the program, see the XTP System Configuration Software Help file. NOTES: If your Ethernet connection to the matrix switcher is •...
  • Page 55 Enter the appropriate administrator or user password in the field and click Password The matrix switcher downloads the HTML start-up page (see figure 12). The matrix switcher is ready for operation via HTML remote control. Figure 12. HTML Startup Page XTP II CrossPoint Series •...

  • Page 56: Configuration

    Configuration Removing and Installing a Board or Blank Panel NOTES: For proper cooling and air flow, boards or blank panels • should be installed in all locations during normal matrix switcher operations. The input and output boards are hot-swappable. You do •...
  • Page 57 For a board, orient the board to be installed horizontally (XTP II CrossPoint 1600) or vertically XTP II CrossPoint 3200 and XTP II CrossPoint 6400) and so that the IN or OUT silkscreen on the back panel is right side up.
  • Page 58 XTP II CrossPoint Series • Configuration...
  • Page 59 In no event will Extron Electronics be liable for direct, indirect, or consequential damages resulting from any defect in this product even if Extron Electronics has been advised of such damage.
  • Page 60 +1.714.491.1500 +1.919.850.1000 Extron Japan Extron China +1.714.491.1517 FAX +1.919.850.1001 FAX +81.3.3511.7655 +86.21.3760.1568 +81.3.3511.7656 FAX +86.21.3760.1566 FAX Extron Asia Extron Middle East Extron Australia +65.6383.4400 +971.4.299.1800 +61.8.8351.2188 +65.6383.4664 FAX +971.4.299.1880 FAX +61.8.8351.2511 FAX © 2016 Extron Electronics All rights reserved. www.extron.com...
