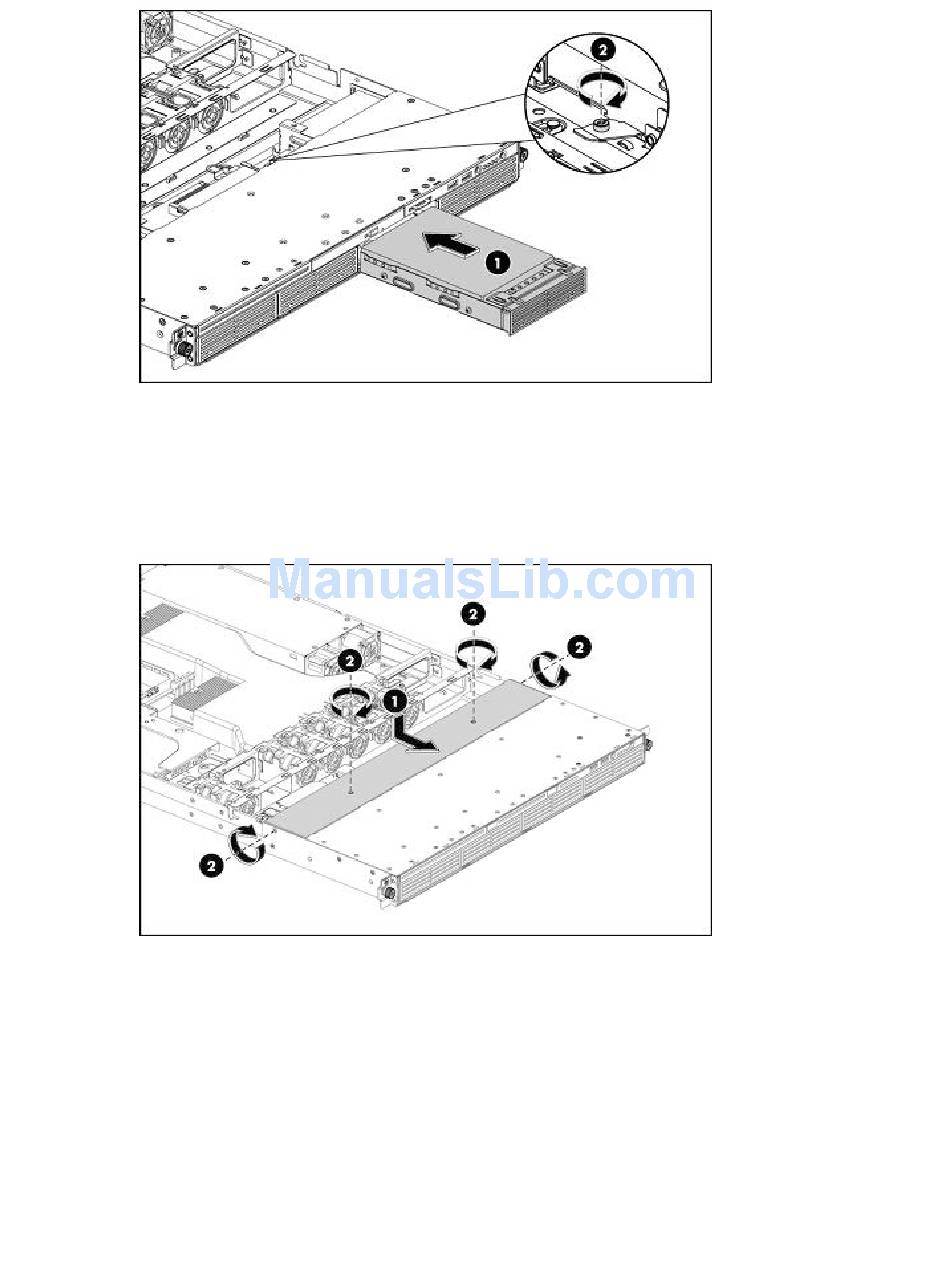

Figure 68 Installing the disk
12.
Replace the top middle cover.
• Align the top middle cover (1) to the chassis.
• Fasten the four screws (1), one on each side of the chassis and two on the top middle cover to
secure the top middle cover to the chassis.
Figure 69 Reinstalling the top middle cover
13.
Replace the top cover.
• Align the top cover (1) to the chassis and then slide it towards the front panel to position it
into place.
• Once the cover is attached to the chassis, tighten the captive screw (2) on the rear panel with
a T-15 screwdriver.
166
Hard disk replacement
