Removing The Top Cover - HP StorageWorks D2D100 - Backup System User Manual

2.
Make sure there are no backup or restore jobs in progress and that no future jobs are scheduled
to start whilst the system is shut down. Select Shutdown on the Web Management interface and
click Power Off to power down the HP D2D Backup System safely.
3.
Disconnect the network cable(s) and the power cord from the HP D2D Backup System.
4.
Remove the top cover.
• Loosen the captive screw (1) on the rear panel with a T-15 screwdriver.
• Slide the cover (2) approximately 1.25 cm (0.5 in) toward the rear of the unit and then lift the
cover to detach it from the chassis.
• Lift the top cover (3) away from the chassis.

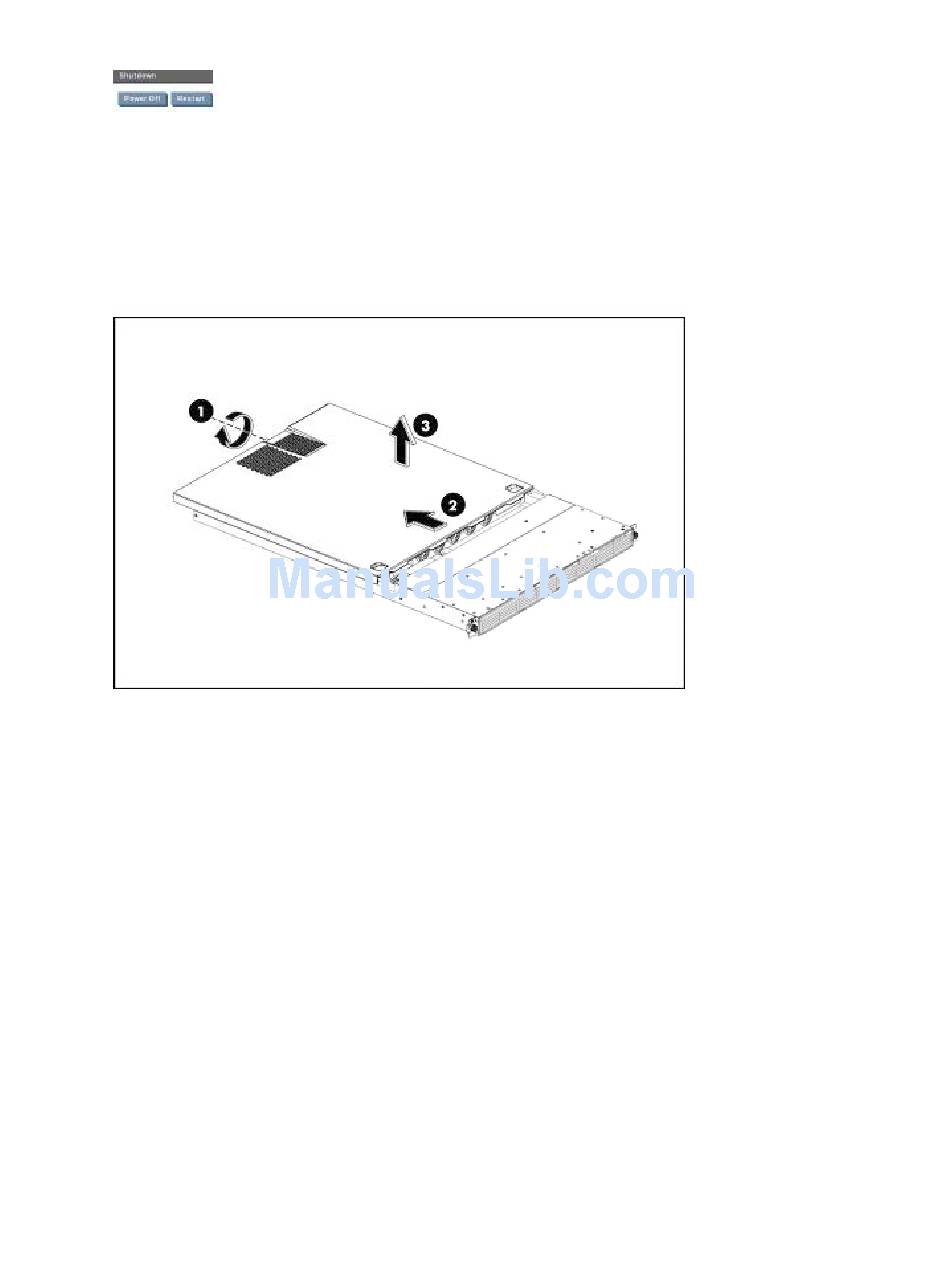

Figure 61 Removing the top cover
5.
Remove the top middle cover.
• Loosen the four screws (1), one on each side of the chassis and two on the top middle cover, that
secure the top middle cover to the chassis.
• Lift the top middle cover (2) away from the chassis.
