5 LEDs
In this chapter:
• "Front panel
• "Rear panel
• "Beacon
mode" on page 58
Front panel LEDs

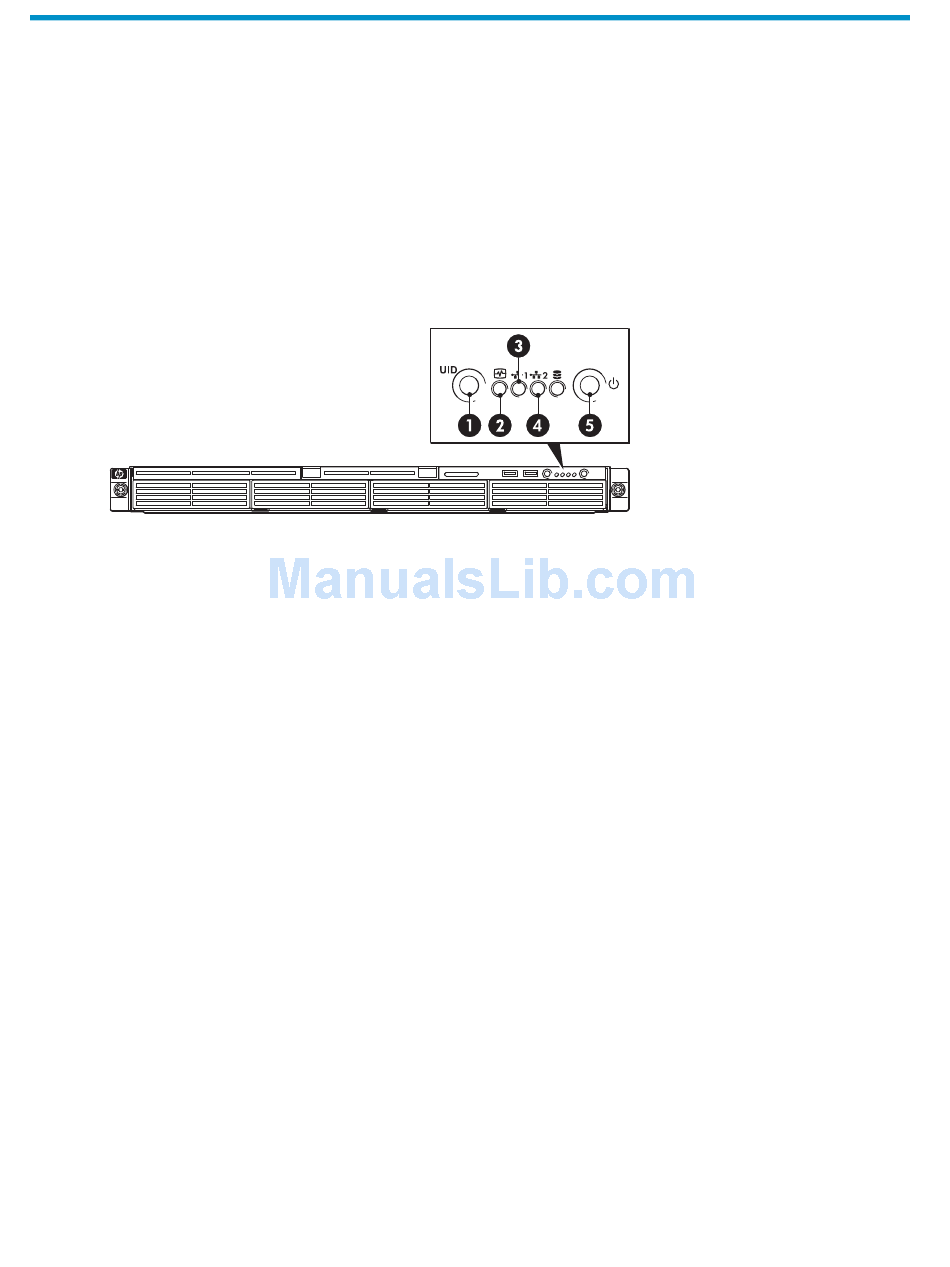

Figure 32 Front view of the HP D2D Backup System
1. Power On button/LED
2. HP D2D Beacon LED
3. System Health LED
4. and 5. LAN port LEDS
Rear panel LEDs
The LAN port on the rear panel has two LED indicators that allow monitoring of network activity.
LEDs" on page 57
LEDs" on page 57
Steady green: Power connected, device ready to use
nl
Steady amber: Device switched off or in hibernation
with power connected
nl
Off: No power connected
Steady blue: identifies the unit
Steady green: Hardware is performing correctly
nl
Flashing red: fault with the power supply, such as
power supply or fan failure
Flashing green: network connection
nl
Off: no network connection or network not configured
D2D Backup System HP D2D2503
57
