Initializing Raid; Create Cartridges; System Console After Two Disks Are Replaced - HP StorageWorks D2D100 - Backup System User Manual

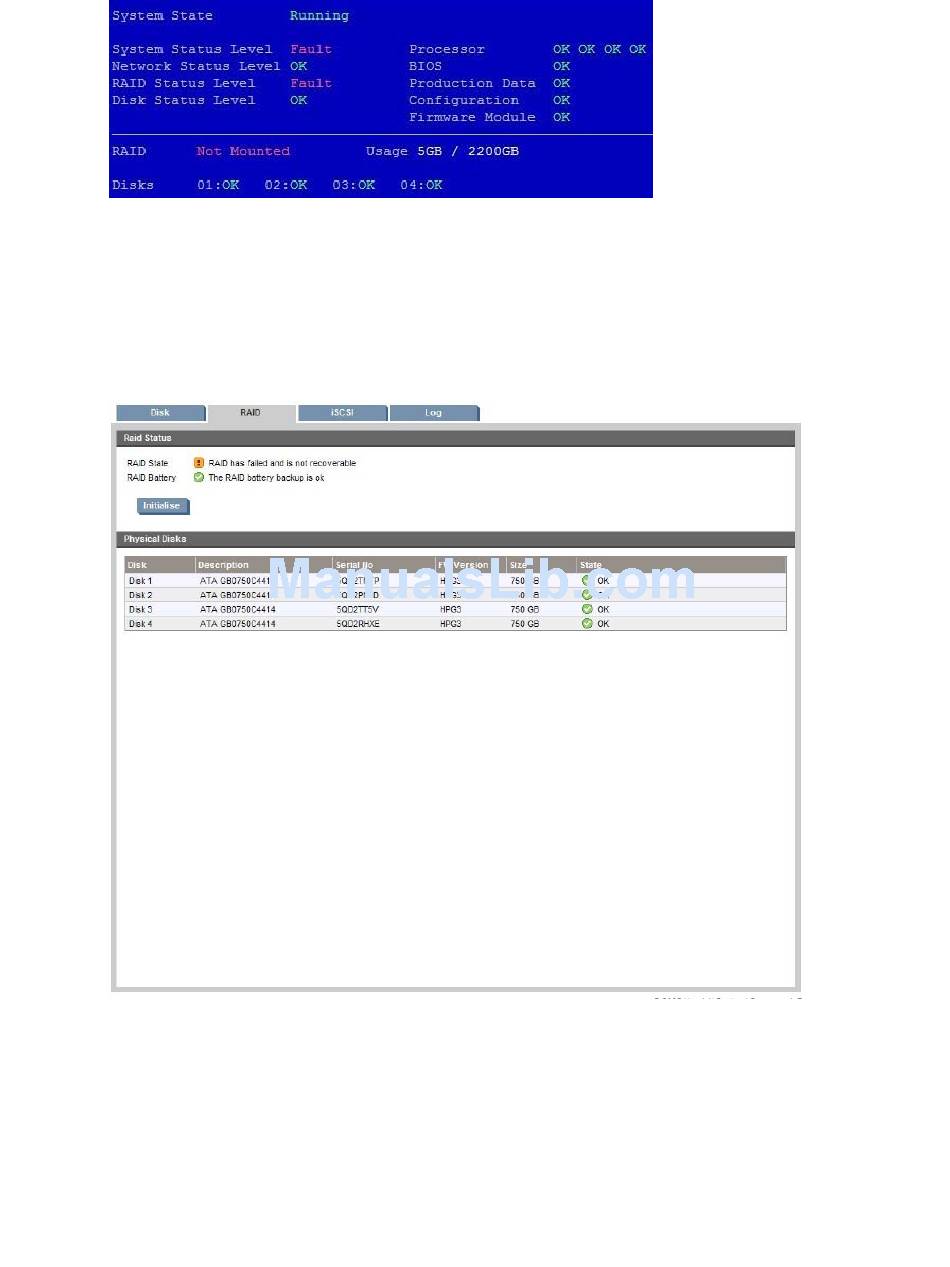

Figure 76 System console after two disks are replaced

Initializing RAID

You must initiate the RAID rebuild manually on the RAID page in the Web Management Interface. Click
on the Initialise button. This will make the HP D2D Backup System usable again, but you will have lost
your data. After initialization, the Disk page will show 0% used because all data has been lost.
The initialization process takes approximately 3 to 5 minutes.

Create cartridges

All cartridges and data were lost when the disks failed. Before you can use the HP D2D Backup System
you must create new cartridges.
D2D Backup System HP D2D2503
171
