• The backup device is not visible to other devices on the network.
• Multiple servers may not back up to a single backup device.

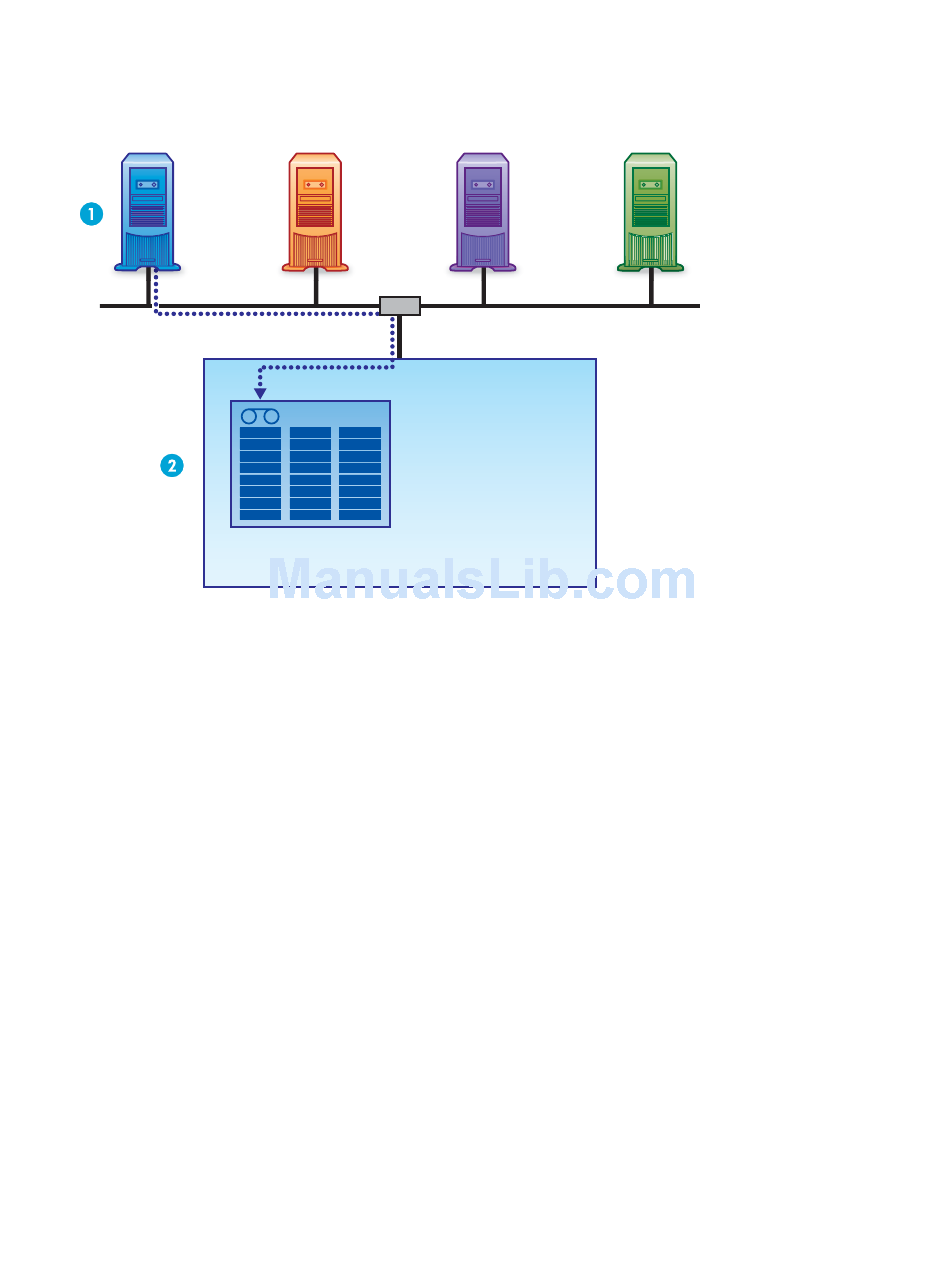

Figure 3 on page 20 shows a configuration with a single host. The Installation wizard has been run
on Host 1. The HP D2D Backup System automatically generates a library for the host. The user may
specify the number of slots during installation.
Host1
Figure 3 Device configuration with one host
• By default, only one device is visible to the host, the library that has been configured for it during
installation. Data from each host goes to its corresponding library.
• Each backup device is visible only to the host for which it has been configured.
• A host may have multiple devices configured for it on the HP D2D Backup System, but this means
fewer hosts may be connected (not illustrated).
Figure 4 on page 21 shows a configuration with three hosts. The HP D2D Backup System can be used
to back up a maximum of six hosts. The Installation wizard automatically generates a library for each
host. The user may specify the number of slots during installation.
20
Before you start
Host2
Library 1
HP StorageWorks D2D Backup System
Host3 Host4/5/6
LAN
