To add a target appliance

1. Click Add Target Appliance.

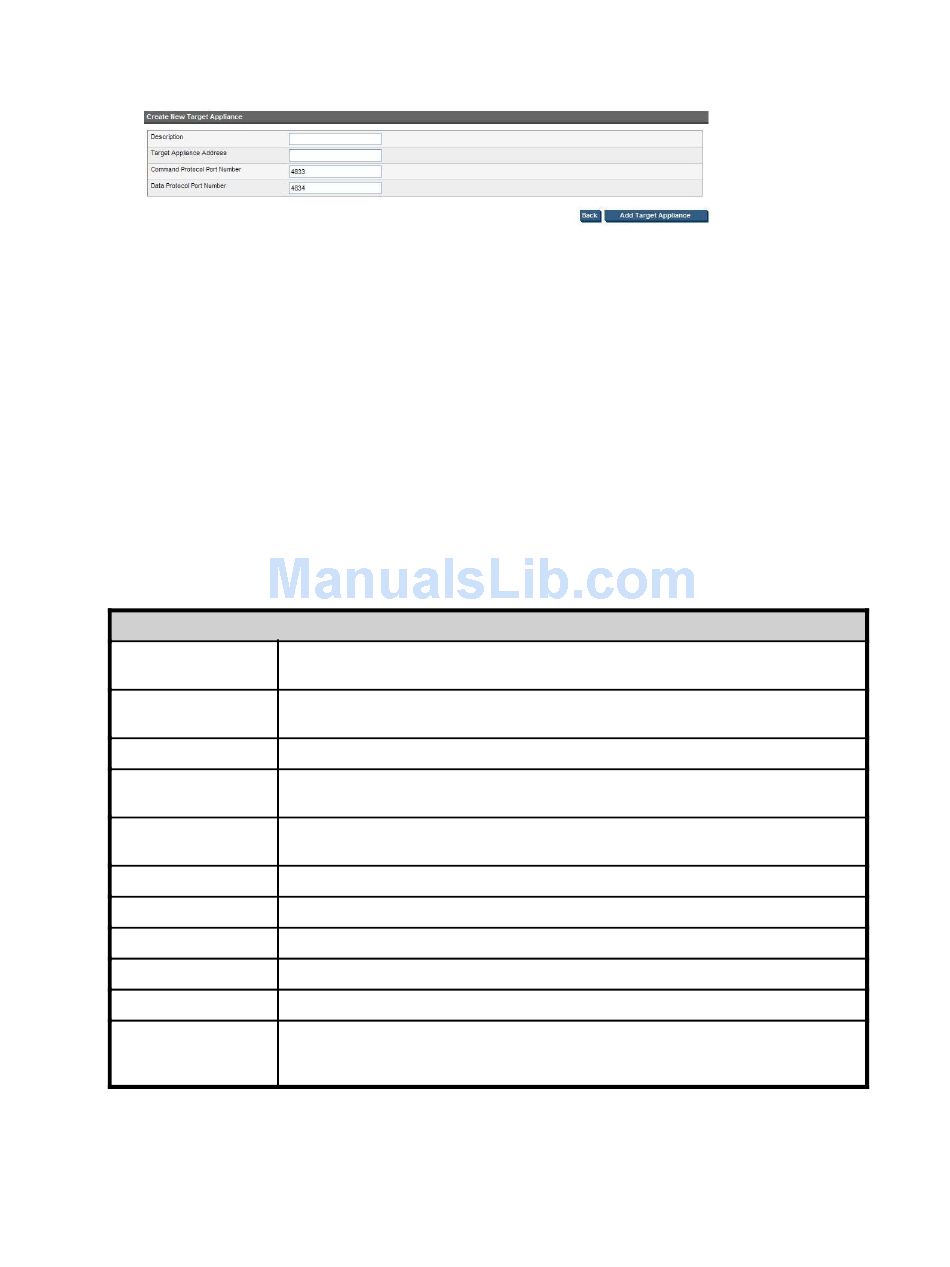

Figure 52 Create new target appliance
2. Enter the Target Appliance Address.
3. The default values for the Command and Data Protocol Port Numbers are usually acceptable, but
may be edited if there is a conflict.
4.
Click Add Target Appliance.

To edit or remove a Target Appliance

• Select the appliance and click Edit to edit the Appliance Name, IP address and protocol port
details of the target appliance.
• Select the appliance and click Delete to remove an appliance from the list of Target Appliances
available to that source.

Target and Source Appliance parameters

Table 15 Target appliance parameters
Target Appliance tab Some fields are editable.
Appliance Name
Appliance Address
Serial Number
Command Protocol
Port Number
Data Protocol Port
Number
Available
Replication protocol
Capacity
Free Space
Firmware version
Weekly calendar
This is the name that is used to identify the Target Appliance. You specify it when
you add the Target Appliance and may edit it later.
This is the IP address of the Target Appliance. You specify it when you add the
Target Appliance and may edit it later.
This is the serial number of the Target Appliance; it cannot be edited.
This is the port number that will be used for command protocol.
This is the port number that will be used for data protocol.
This field indicates whether the Target Appliance is available.
This identifies the replication protocol in use.
This shows the capacity of the Target Appliance.
This shows the amount of free space on the Target Appliance.
This shows the firmware version of the Target Appliance.
This section shows the hours on which the Target Appliance is available for
replication during the week. Any blackout windows that have been specified will
be reflected in this calendar.
