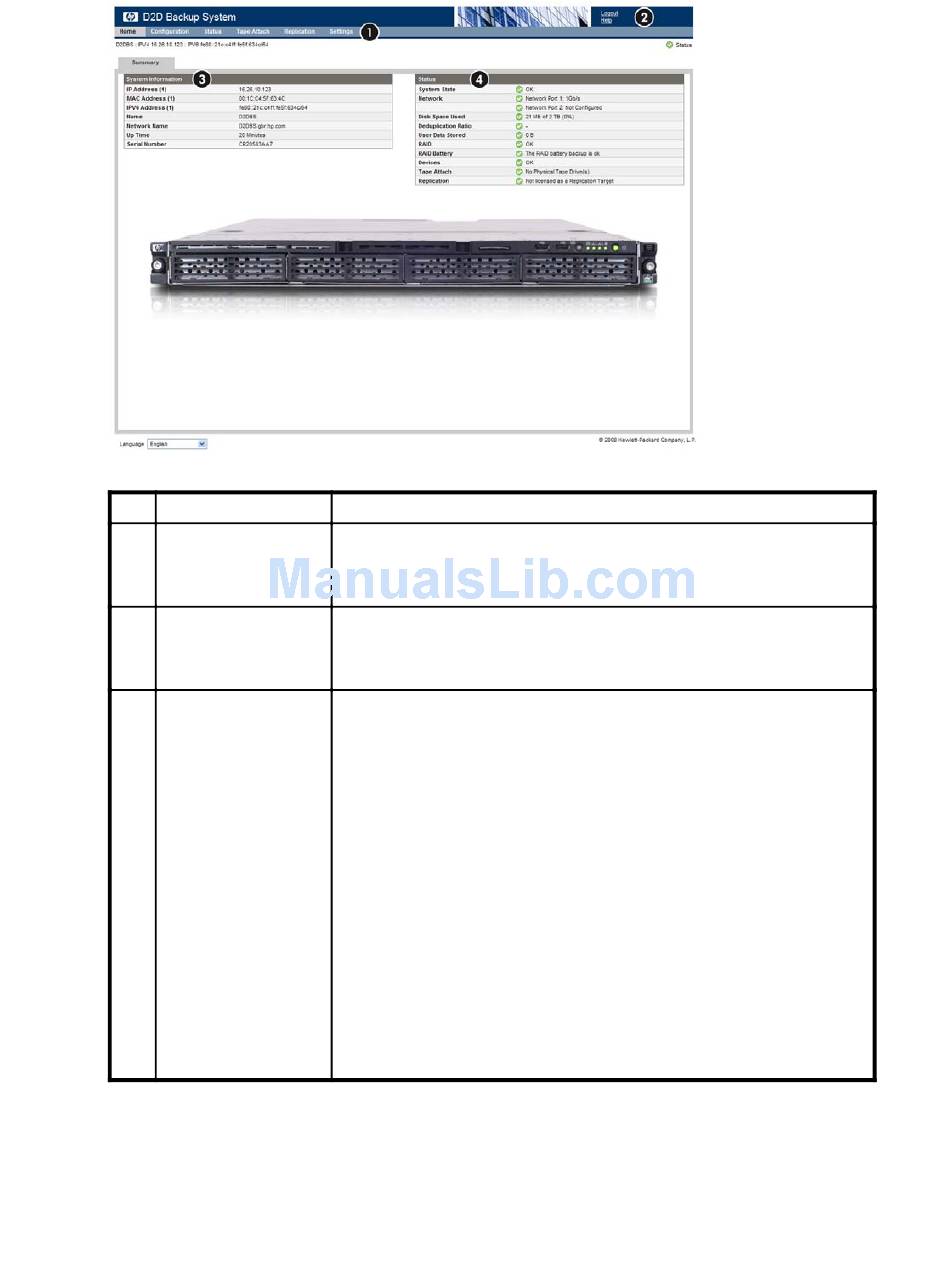

Table 4 Summary page layout
1 Navigation bar
2
Help and logout
D2D Backup System
3
information
4
Status details
Select the appropriate option from the top bar.
The Help option opens the help pages. This is a context sensitive link that
displays help that is appropriate to the currently selected page.Logout closes
your session on the HP D2D Backup System. If somebody else logs in, you
will be automatically logged out.
This section provides the information that identifies your HP D2D Backup
System. It shows the IP Address, Name, Network Name and Serial Number
of the HP D2D Backup System. It also shows how long the HP D2D has
been running.
This section provides details about overall system status and the status of
network and system components. Additional information is provided if the
status is not OK. See also
Disk Space Used includes the amount of space that has been allocated
for the number of cartridges created on the unit. Each slot configured
commits 3 GB of physical disk space. Deduplication Ratio is updated
whenever data is written to storage.User Data Stored shows how much user
data has been backed up to unit. See also
capacity" on page 91.
RAID and RAID battery are the first place to look to identify any problems
with the RAID status and RAID battery. A failed battery should be replaced
as soon as possible. See the "HP D2D4100 Series Maintenance and Service
Guide".
Devices informs the user of the status of the libraries within the HP D2D
Backup System. After a power up or reset, each library is checked and
brought on line. This can take a long time, especially after an unscheduled
power fail, where the message will show 'Starting'.
If a tape drive is connected directly to the HP D2D Backup System, the Tape
Attach status is displayed with a link to job history.
Replication status is shown if you have licensed and enabled this feature.
"Status icons" on page 90.
