1 Before you start

In this chapter:
• "Overview" on page 17
• "Optional tape
• "Software and hardware
• "Terminology" on page 19
• "Storage capacity" on page 22
• "Data deduplication" on page 23
Overview
The HP StorageWorks D2D Backup System is an iSCSI disk-based storage appliance that emulates up
to six tape devices, which can be used to back up host network servers or PCs. Each tape device
is configured as an Ultrium Tape Library or Autoloader. An emulation type is selected during initial
configuration and this determines the maximum number of slots that may be configured for the device.
The default configuration emulates the HP StorageWorks 1/8 G2 Ultrium Tape Autoloader.
1. Power On button/LED
2. Hard disk drives
3. HP D2D Beacon LED

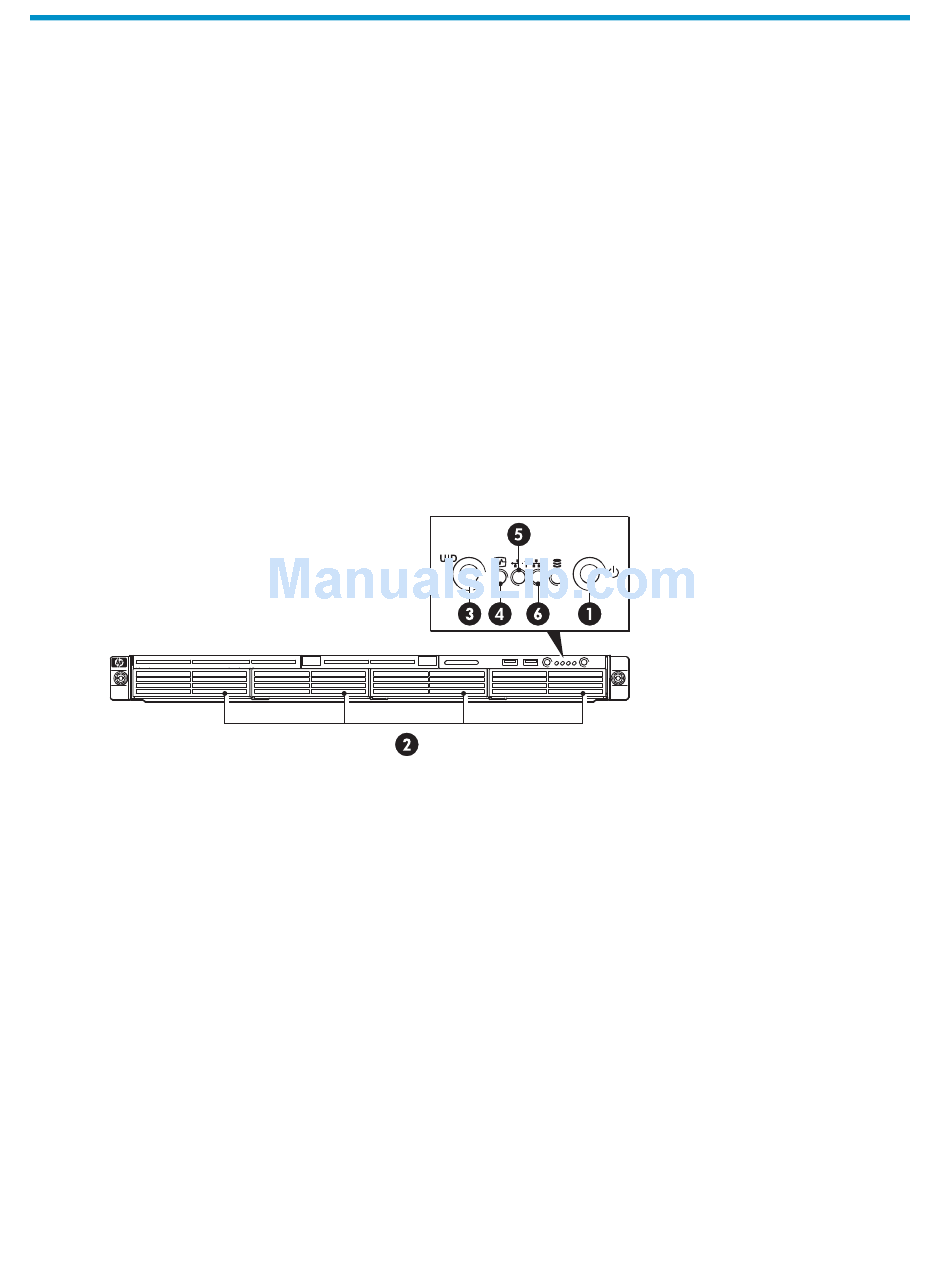

Figure 1 Front view of the HP D2D Backup System
attach" on page 18
requirements" on page 18
4. System health LED
5. LAN port 1 LED
6. LAN port 2 LED
D2D Backup System HP D2D2503
