SSL Configuration Examples

SSL Configuration Examples

Example: Setting up a Secure Server

Cisco 11000 Series Secure Content Accelerator Configuration Guide
5-22
The following examples demonstrate how to set up SSL configurations for the
Secure Content Accelerator. If necessary, refer to Appendix F to see how the
Secure Content Accelerator works with SSL protocol information.
In this example, the default SSL port (443) and remote port 81 are used. The
user-specified key name is myKey, the certificate name is myCert, and the secure
server name is myServer. The pre-loaded strong security policy is used.
The first step is to load a key to assign to the secure server. In this example, a key
is imported into the GUI.
1. Click SSL to activate the SSL tabs.
Click the Private Keys tab. The Private Keys page opens, as shown in
2.
Figure 5-19.

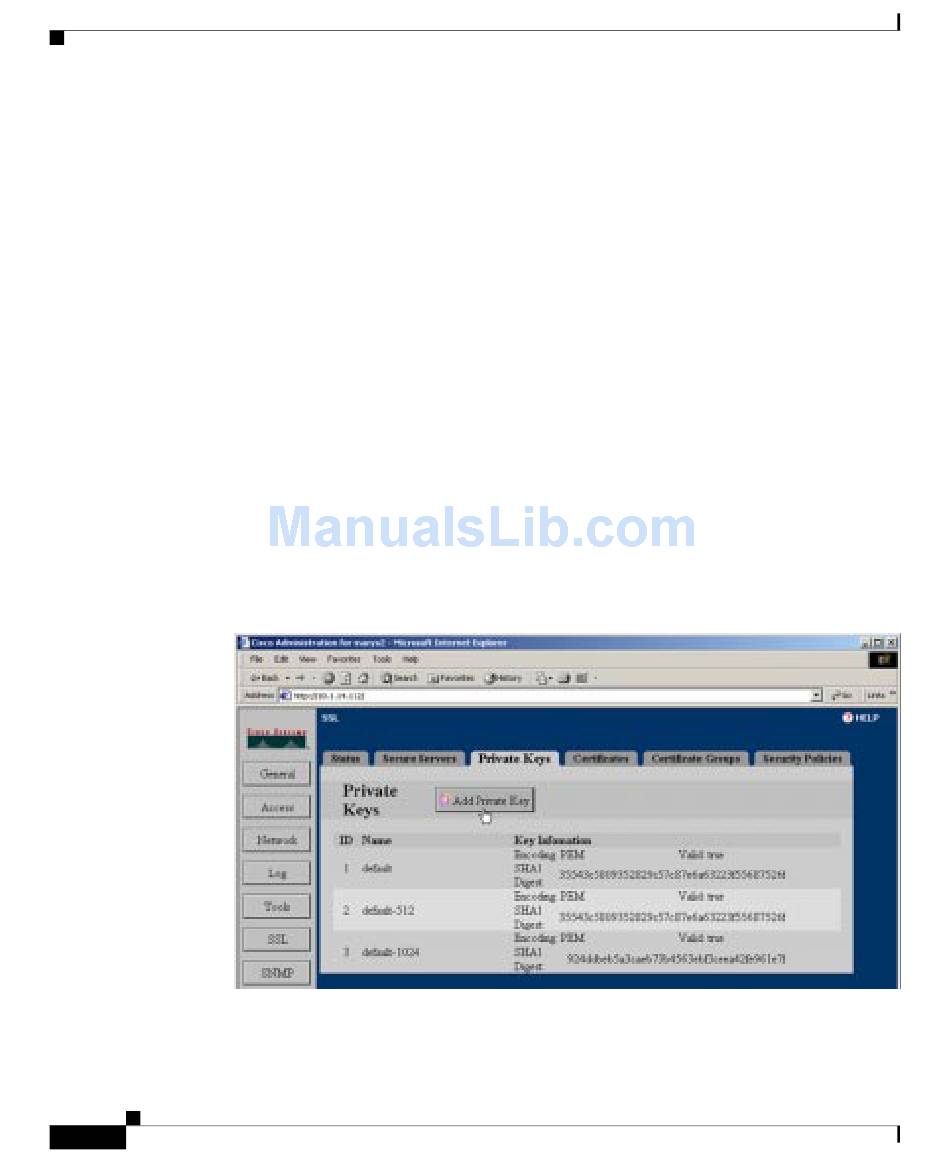

Figure 5-19 Private Keys Tab

Chapter 5 Graphical User Interface Reference
78-13124-05
