Disconnecting a Fiber-Optic Cable from a J-EX Series Switch

146
Grasp the transceiver ejector lever and gently slide the transceiver approximately
6.
0.5 in. (1.3 cm) straight out of the port.
CAUTION: To avoid electrostatic discharge (ESD) damage to the
transceiver, do not touch the connector pins at the end of the transceiver.
Using your fingers, grasp the body of the transceiver and pull it straight out of the port.
7.
Place the transceiver in the antistatic bag or on the antistatic mat placed on a flat,
8.
stable surface.
Place the dust cover over the empty port.
9.

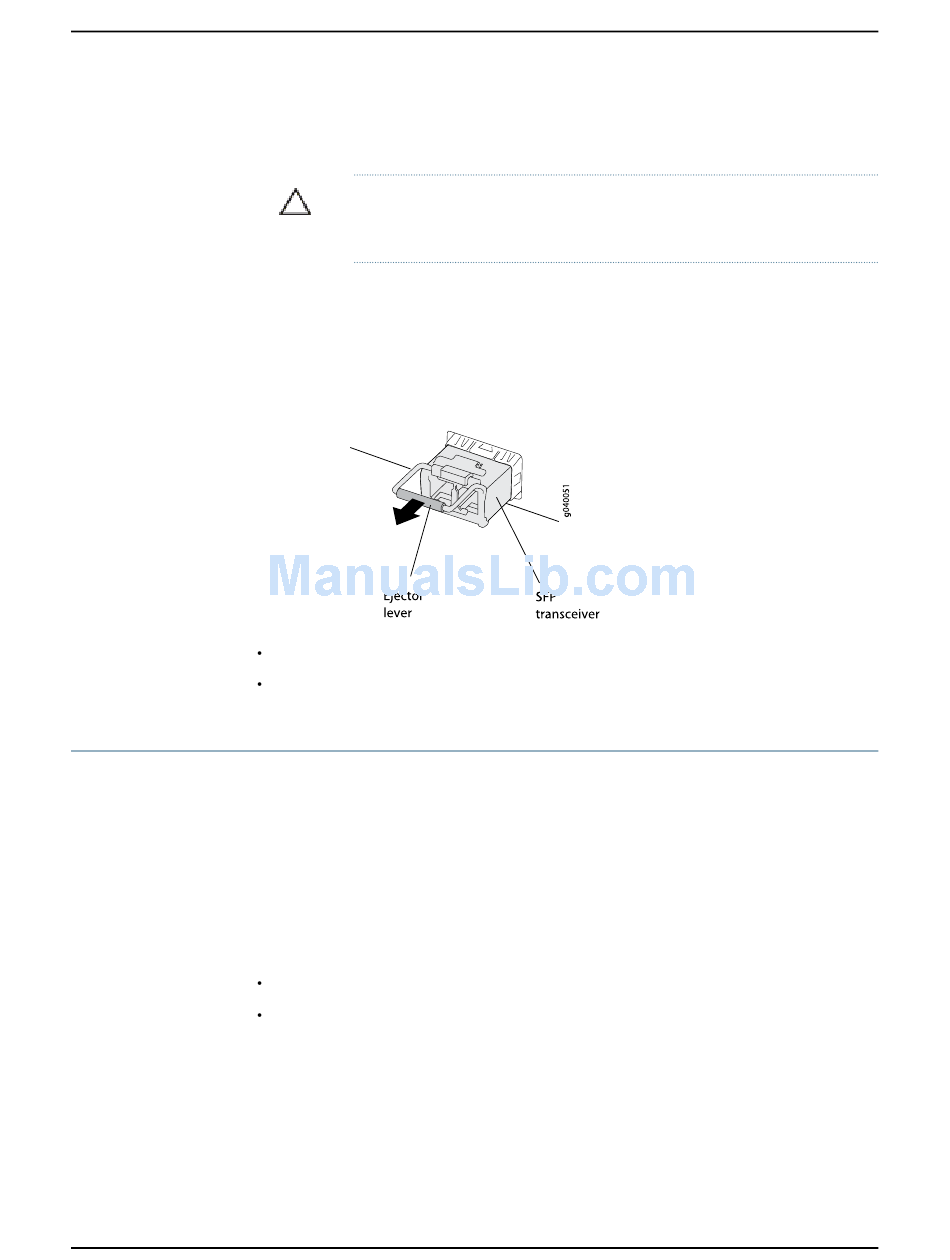

Figure 60: Removing a Transceiver from a J-EX Series Switch
Installing a Transceiver in a J-EX Series Switch on page 110
Optical Interface Support in J-EX4200 Switches on page 32
J-EX Series switches have field-replaceable unit (FRU) optical transceivers to which you
can connect fiber-optic cables.
Before you begin disconnecting a fiber-optic cable from an optical transceiver installed
in a J-EX Series switch, ensure that you have taken the necessary precautions for safe
handling of lasers (see "Laser and LED Safety Guidelines and Warnings for J-EX Series
Switches" on page 177).
Ensure that you have the following parts and tools available:
A rubber safety cap to cover the transceiver
A rubber safety cap to cover the fiber-optic cable connector
