Adding a New Switch to an Existing Virtual Chassis Configuration (CLI Procedure)

Adding a New Switch to an Existing Virtual Chassis Configuration Within the Same Wiring Closet

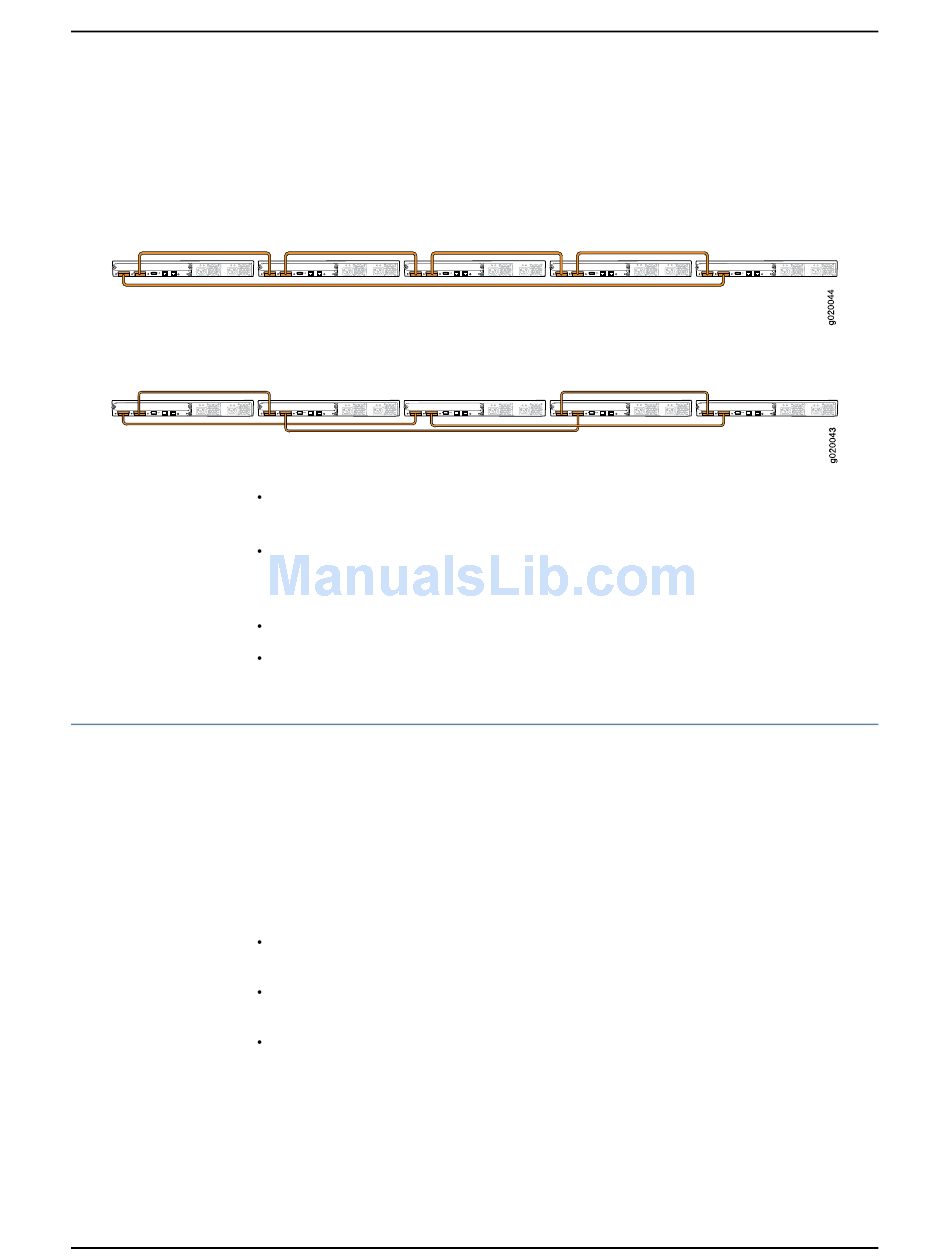

Figure 23 on page 79 and Figure 24 on page 79 show five switches mounted on the top
rows of adjacent racks and interconnected in a ring topology using medium-length and
long-length Virtual Chassis cables.
Figure 23: J-EX4200 Switches Mounted on Adjacent Racks and Connected
in a Ring Topology Using Medium and Long Cables: Option 1
Figure 24: J-EX4200 Switches Mounted on Adjacent Racks and Connected
in a Ring Topology Using Medium and Long Cables: Option 2
Understanding Virtual Chassis Hardware Configuration on a J-EX4200 Switch on
page 75
For information about Virtual Chassis components and an example of Virtual Chassis
configuration across multiple wiring closets, see the Dell PowerConnect J-Series Ethernet
Switch Complete Software Guide for Junos OS at
Planning the Virtual Chassis on page 76
Virtual Chassis Ports Connector Pinout Information for J-EX4200 Switches on page 49
You can add one or more J-EX4200 switches to an existing Virtual Chassis configuration
that is nonprovisioned or preprovisioned.
To add a J-EX4200 switch to an existing J-EX4200 Virtual Chassis, use the procedure
below that matches what you need to accomplish. For information on adding a switch
to other types of Virtual Chassis configurations, see the Dell PowerConnect J-Series
Ethernet Switch Complete Software Guide for Junos OS at
http://www.support.dell.com/manuals
Adding a New Switch to an Existing Virtual Chassis Configuration Within the Same
Wiring Closet on page 79
Adding a New Switch from a Different Wiring Closet to an Existing Virtual Chassis
Configuration on page 81
Adding a New Switch to an Existing Preprovisioned Virtual Chassis Configuration Using
Autoprovisioning on page 82
Follow these instructions to add a J-EX4200 switch to a J-EX4200 Virtual Chassis.
Before you begin, be sure you have:
