Dell PowerConnect J-Series J-EX4200 Ethernet Switch Hardware Guide
Related
Documentation
126
To connect a fiber-optic cable to an optical transceiver installed in a J-EX Series switch:
WARNING: Do not look directly into a fiber-optic transceiver or into the ends
of fiber-optic cables. Fiber-optic transceivers and fiber-optic cables connected
to transceivers emit laser light that can damage your eyes.
If the fiber-optic cable connector is covered by a rubber safety cap, remove the cap.
1.
Save the cap.
Remove the rubber safety cap from the optical transceiver. Save the cap.
2.
Insert the cable connector into the optical transceiver (see Figure 54 on page 126).
3.

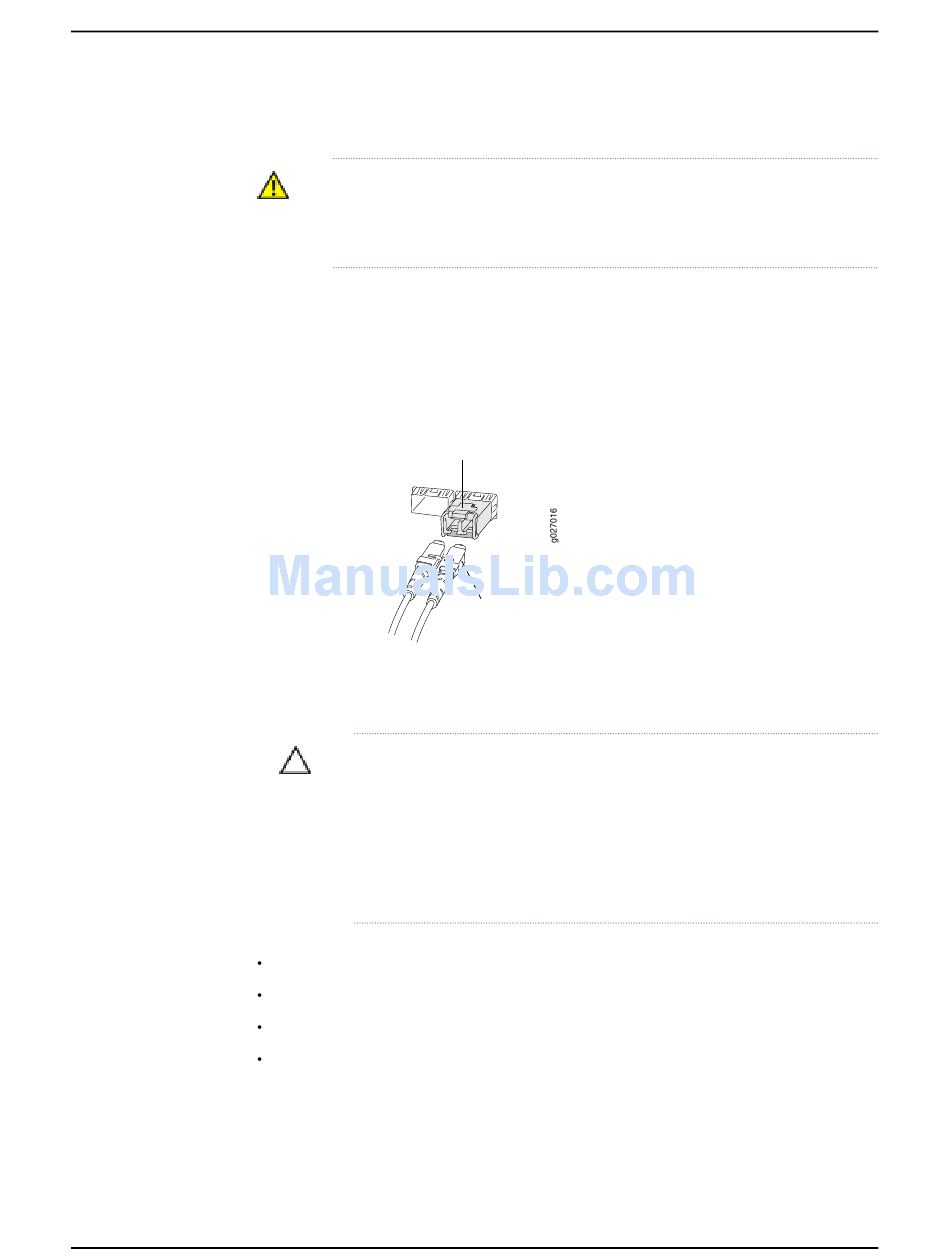

Figure 54: Connecting a Fiber-Optic Cable to an Optical Transceiver
Installed in a J-EX Series Switch
Secure the cables so that they are not supporting their own weight. Place excess cable
4.
out of the way in a neatly coiled loop. Placing fasteners on a loop helps cables maintain
their shape.
CAUTION: Do not bend fiber-optic cables beyond their minimum bend
radius. An arc smaller than a few inches in diameter can damage the cables
and cause problems that are difficult to diagnose.
Do not let fiber-optic cables hang free from the connector. Do not allow
fastened loops of cables to dangle, which stresses the cables at the
fastening point.
Disconnecting a Fiber-Optic Cable from a J-EX Series Switch on page 146
Installing a Transceiver in a J-EX Series Switch on page 110
Maintaining Fiber-Optic Cables in J-EX Series Switches on page 153
Optical Interface Support in J-EX4200 Switches on page 32
Transceiver
Fiber-optic cable
