Altigen AltiContact Manager Version 5.0 Administration Manual page 249

Parameter
G711 IP Ranges
To set the codec of an IP extension with static IP addressing:
1. Select the extension in the Static IP Extensions list.
2. In the drop-down below the list, select the codec to use for this
extension.
To set the codec for a connection to another AltiContact Manager
server:
1. Select the server in the Servers list.
2. In the drop-down below the list, select the codec to use for a
connection to this server.
Note:
AltiContact Manager-to-AltiContact Manager IP connections
between systems must use the same codec.
To set ranges and values for dynamic IP addressing:
1. In the G711 IP Ranges list, click the Add button. The Add IP Codec
Setting dialog appears.

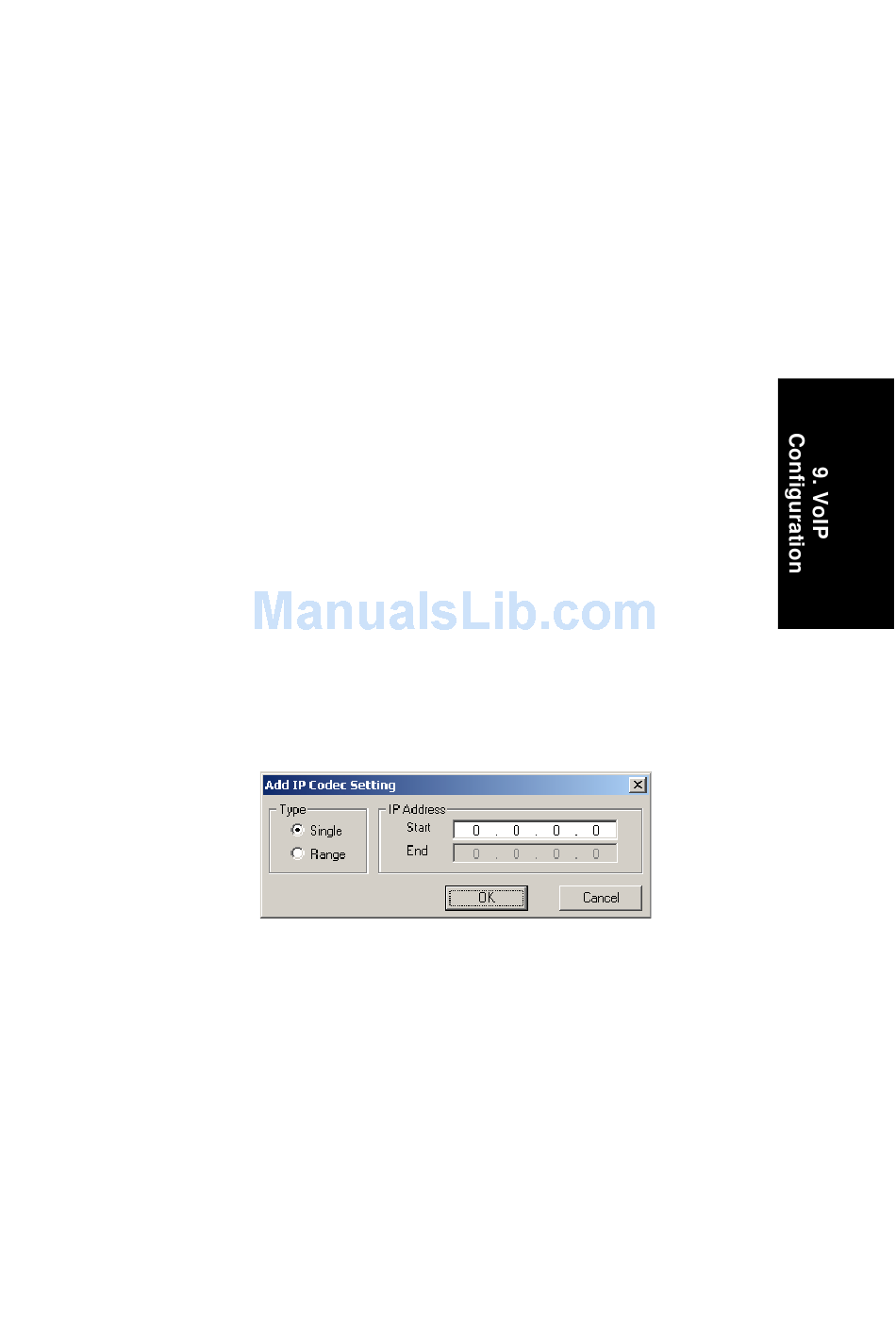

Figure 3. Add IP Codec Setting
2. In the Add IP Codec Setting dialog, specify Single or Range to set a
single dynamic IP address or a range of addresses.
3. Enter a Start value and, for a Range, an End value for the dynamic IP
addresses your IP extension users can access.
You cannot use the minimum and maximum values (0.0.0.0. and
255.255.255.255).
4. Click OK.
Description
Lists the G.711 dynamic IP address ranges you have
created in the Add IP Codec Setting dialog box,
described below
AltiContact Manager Administration Manual
VoIP Configuration
9-7
