Memory Subsystem

3.4.1

Memory Support

The server board supports four DDR2 667/800 MHz unbuffered ECC or non-ECC DIMMs, two
memory channels, two DIMMs per memory channel. The maximum memory capacity supported
is 8 GB using four DIMMs of 2 GB unbuffered, 1 Gbit DDR2 memory.
Only DIMMs tested and qualified by Intel or a designated memory test vendor are supported. A
list of qualified DIMMs is at http://support.intel.com/support/motherboards/server/X38ML/.
Note: All DIMMs are supported by design, but only fully qualified DIMMs are supported on the
board.
3.4.2

Memory Population Rules

The X38 MCH supports two DDR2 DIMM sockets for Channel A, and two DDR2 DIMM sockets
for Channel B. The four slots are partitioned with Channel A representing the Channel A DIMMs
Revision 1.3

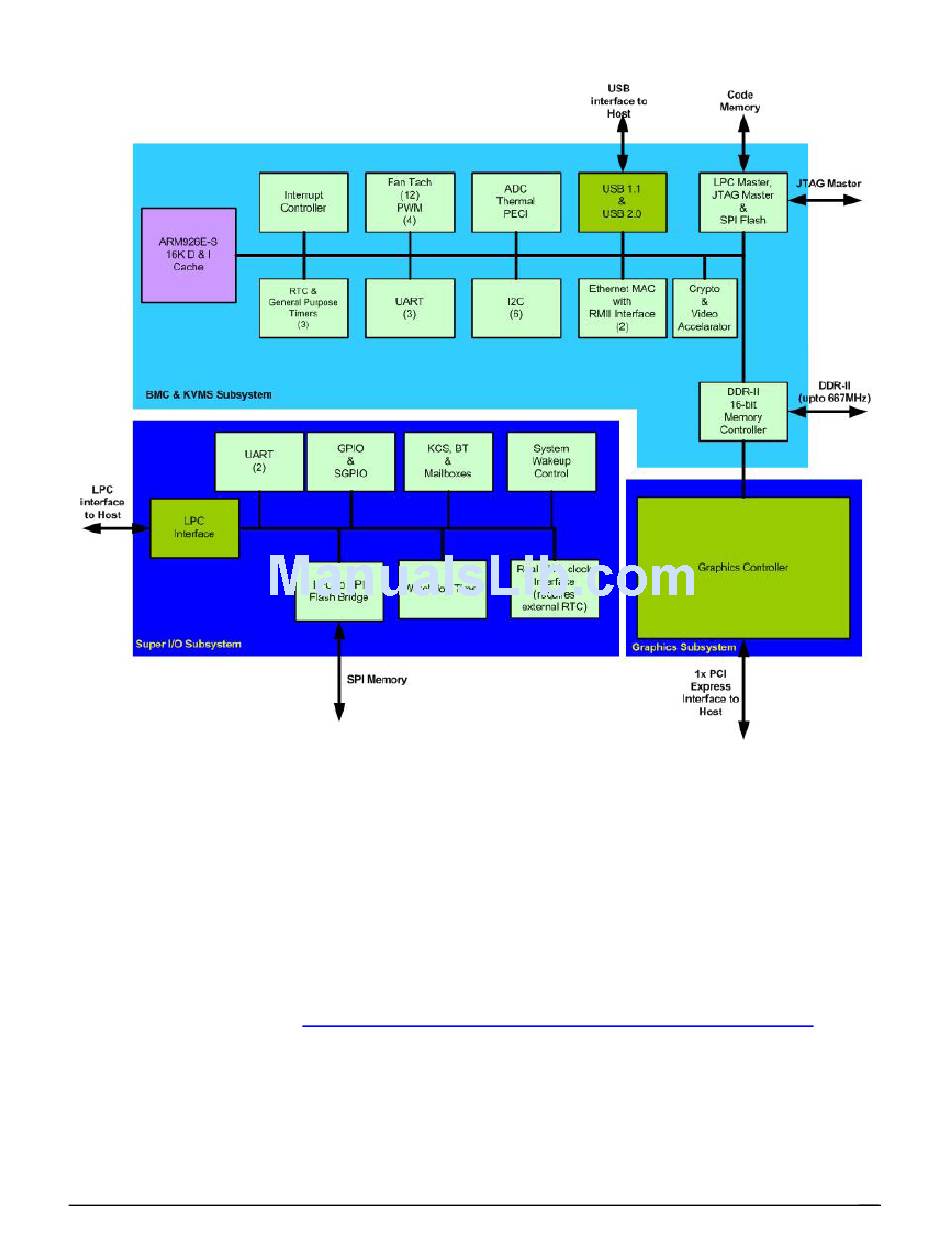

Figure 4. Integrated BMC Block Diagram
