Intel® Server Board X38ML
Functional Architecture
3.
Functional Architecture
This chapter provides a high-level description of the functionality associated with the
architectural blocks that make up the server board.
(R)

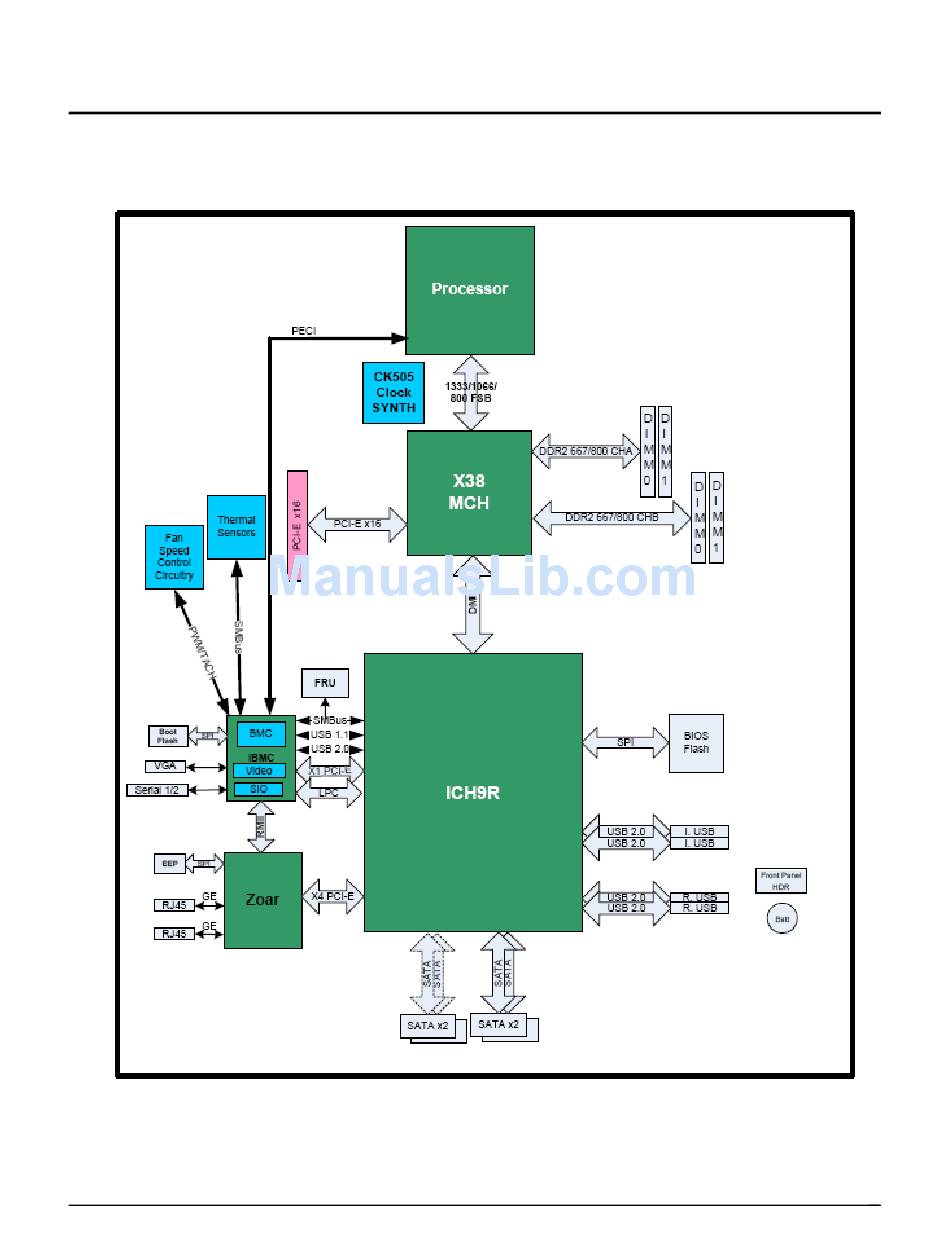

Figure 3. Server Board Block Diagram
Revision 1.3
7
Intel order number E15331-006
